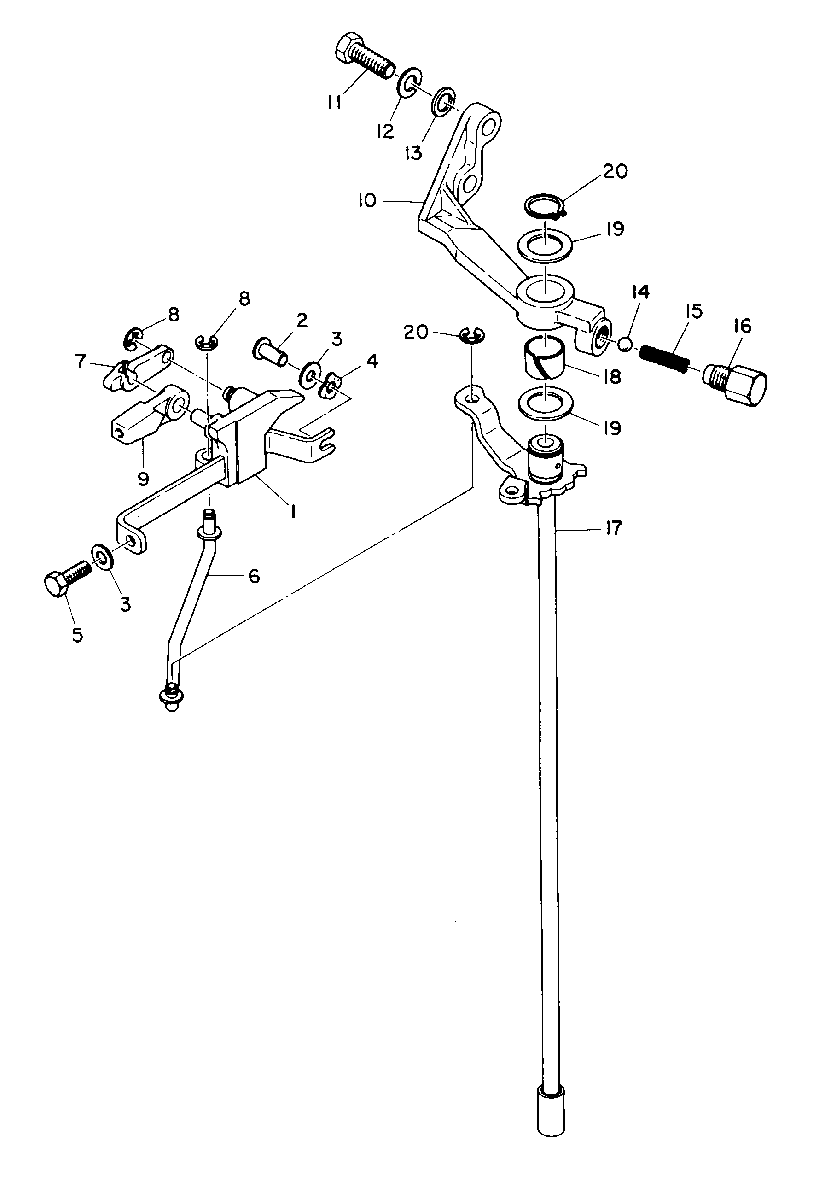

GEAR SHIFT LINKAGE для Mariner - 48 670-34580 AND BELOW
-
№АртикулНазвание
-
198919M BRACKET, SHIFTBRACKET, SHIFT
-
217-82137M PIN, CLEVIS - SHIFT BRACKETPIN, CLEVIS - SHIFT BRACKET
-
312-82214M WASHERWASHER
-
413-81866M WASHER, WAVE - CLEVIS PINWASHER, WAVE - CLEVIS PIN
-
510-82423M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
681407M LEVER, SHIFT RODLEVER, SHIFT ROD
-
792657M RETAINER, CLEVISRETAINER, CLEVIS
-
853-82330M CIRCLIPCIRCLIP
-
981480M CLEVIS, SHIFT CONTROL CABLECLEVIS, SHIFT CONTROL CABLE
-
1082556M BRACKET, SHIFT RODBRACKET, SHIFT ROD
-
1110-82441M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
1213-82215M LOCKWASHR, BRACKET BOLTLOCKWASHR, BRACKET BOLT
-
1312-82217M WASHERWASHER
-
1482346M BALL, DETENTBALL, DETENT
-
1524-82081M SPRING, DETENTSPRING, DETENT
-
1623-80635M RETAINER, COMPRESSION SPRINGRETAINER, COMPRESSION SPRING
-
1781670M SHIFT RODE ASS'Y, UPPER - SHORT SHAFTSHIFT RODE ASS'Y, UPPER - SHORT SHAFT
-
1781671M SHIFT ROD ASS'Y, UPPER - LONG SHAFTSHIFT ROD ASS'Y, UPPER - LONG SHAFT
-
1823-81953M BUSHING, SHIFT RODBUSHING, SHIFT ROD
-
1912-81858M SPACER, SHIFT RODSPACER, SHIFT ROD
-
2053-19259M CIRCLIP, UPPER SHIFT RODCIRCLIP, UPPER SHIFT ROD
