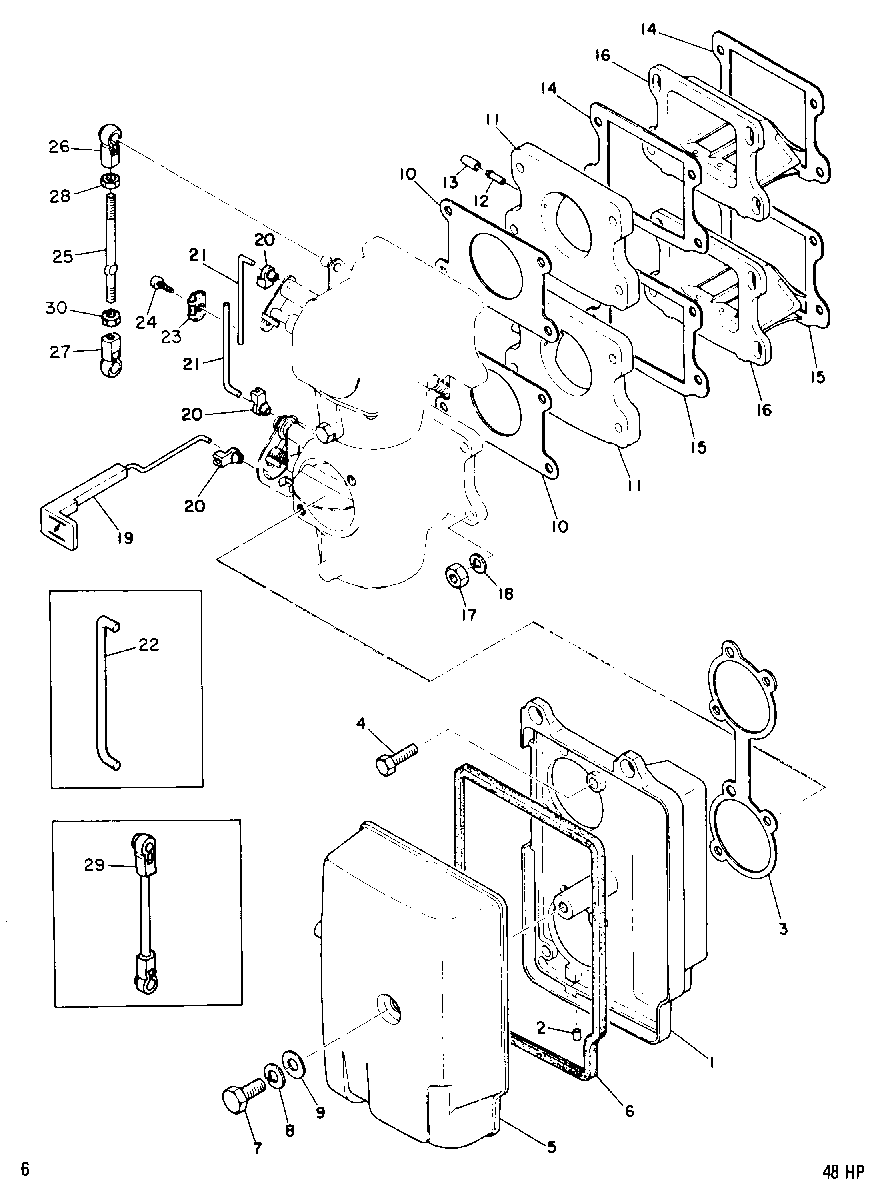

INTAKE MANIFOLD для Mariner - 48 670-34580 AND BELOW
-
№АртикулНазвание
-
181274M BASE, AIR INTAKEBASE, AIR INTAKE
-
222-81918M PLUG, AIR INTAKE
SERIAL 00002540-09999999PLUG, AIR INTAKE
SERIAL 00002540-09999999 -
327-81276M GASKET, AIR INTAKE TO CARBURETORGASKET, AIR INTAKE TO CARBURETOR
-
410-84058M BOLT, BASE ATTACHINGBOLT, BASE ATTACHING
-
581275M COVER, AIR INTAKECOVER, AIR INTAKE
-
627-81273M GASKET, AIR INTAKEGASKET, AIR INTAKE
-
710-82438M BOLT, INTAKE COVER ATTACHINGBOLT, INTAKE COVER ATTACHING
-
813-82215M LOCKWASHER, INTAKE COVER BOLTLOCKWASHER, INTAKE COVER BOLT
-
912-82217M WASHER, INTAKE COVER BOLTWASHER, INTAKE COVER BOLT
-
1027-81272 GASKET, CARBURETOR TO MANIFOLDGASKET, CARBURETOR TO MANIFOLD
-
1192677M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1222-80122M PIPE, OVERFLOWPIPE, OVERFLOW
-
1380454M CAP, OVERFLOW PIPECAP, OVERFLOW PIPE
-
1427-81269M GASKET, REED VALVE - UPPERGASKET, REED VALVE - UPPER
-
1527-81270M GASKET, REED VALVE - LOWERGASKET, REED VALVE - LOWER
-
1634-92675M REED VALVEREED VALVE
-
1711-82389M NUT, CARBURETOR ATTACHINGNUT, CARBURETOR ATTACHING
-
1813-82212M LOCKWASHER, CARBURETOR NUTLOCKWASHER, CARBURETOR NUT
-
1981338M ROD, CHOKEROD, CHOKE
-
2016333 CONNECTOR, CHOKE LEVERCONNECTOR, CHOKE LEVER
-
2181339M ROD, CHOKE LINK
SERIAL 00002540-09999999ROD, CHOKE LINK
SERIAL 00002540-09999999 -
22810938M ROD, CHOKE LINK
SERIAL 00002541-09999999ROD, CHOKE LINK
SERIAL 00002541-09999999 -
2381340M CONNECTOR, LINK ROD
SERIAL 00002540-09999999CONNECTOR, LINK ROD
SERIAL 00002540-09999999 -
2410-82480M SCREW, CONNECTOR
SERIAL 00002540-09999999SCREW, CONNECTOR
SERIAL 00002540-09999999 -
25810939M ROD, THROTTLE ADJUSTMENT
SERIAL 00002540-09999999ROD, THROTTLE ADJUSTMENT
SERIAL 00002540-09999999 -
*2616715M CONNECTOR, ADJUSTMENT ROD - UPPER
SERIAL 00002540-09999999CONNECTOR, ADJUSTMENT ROD - UPPER
SERIAL 00002540-09999999 -
2781336M CONNECTOR, ADJUSTMENT ROD - LOWER
SERIAL 00002540-09999999CONNECTOR, ADJUSTMENT ROD - LOWER
SERIAL 00002540-09999999 -
2811-82388M LOCK NUT, ADJUSTMENT ROD
SERIAL 00002541-09999999LOCK NUT, ADJUSTMENT ROD
SERIAL 00002541-09999999 -
29810939M ROD, THROTTLE LEVER
SERIAL 00002541-09999999ROD, THROTTLE LEVER
SERIAL 00002541-09999999 -
3011-81760M NUTNUT
