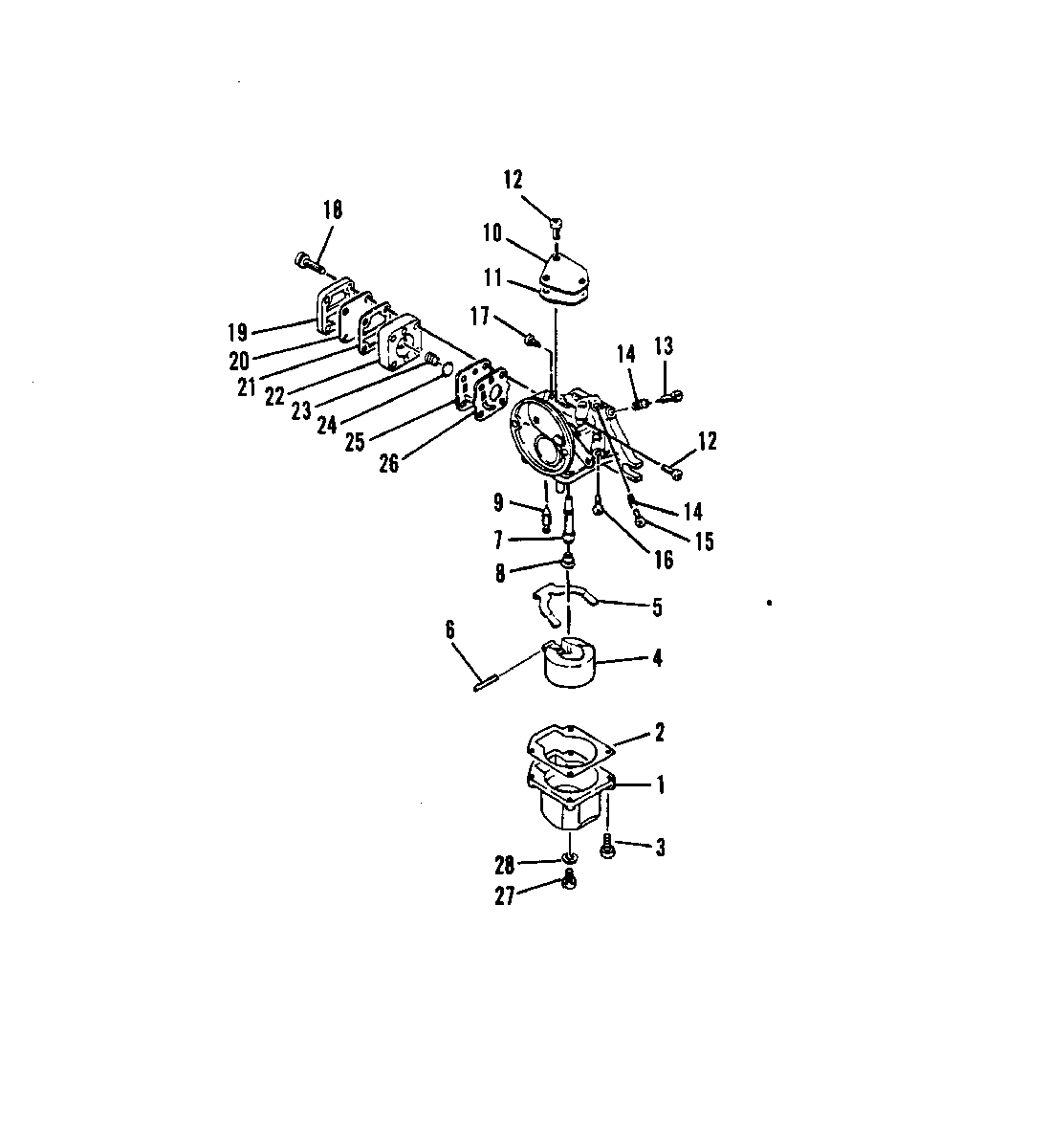

CARBURETOR для Mariner - 4A 6E0-001011 AND UP

№

Артикул

Название
0-1

1383-9505T CARBURETOR ASS'Y
SERIAL (M-070824 ML-325784) AND ABOVE

CARBURETOR ASS'Y
SERIAL (M-070824 ML-325784) AND ABOVE

40 820 ₽
0-1

1383-9505T CARBURETOR ASS'Y
SERIAL (M-070823 ML-325783) AND BELOW

CARBURETOR ASS'Y
SERIAL (M-070823 ML-325783) AND BELOW

40 820 ₽
1

14178M BODY, FLOAT CHAMBER
SERIAL (M-070824 ML-325784) AND ABOVE

BODY, FLOAT CHAMBER
SERIAL (M-070824 ML-325784) AND ABOVE

0 ₽
1

91737M BODY, FLOAT CHAMBER
SERIAL (M-070823 ML-325783) AND BELOW

BODY, FLOAT CHAMBER
SERIAL (M-070823 ML-325783) AND BELOW

0 ₽
2

27-14179M GASKET, FLOAT CHAMBER
SERIAL (M-070824 ML-325784) AND ABOVE

GASKET, FLOAT CHAMBER
SERIAL (M-070824 ML-325784) AND ABOVE

660 ₽
2

27-80972M GASKET, FLOAT CHAMBER
SERIAL (M-070823 ML-325783) AND BELOW

GASKET, FLOAT CHAMBER
SERIAL (M-070823 ML-325783) AND BELOW

0 ₽
3

10-91738M SCREW

SCREW

0 ₽
4

14180M FLOAT
SERIAL (M-070824 ML-325784) AND ABOVE

FLOAT
SERIAL (M-070824 ML-325784) AND ABOVE

0 ₽
4

80450M FLOAT
SERIAL (M-070823 ML-325783) AND BELOW

FLOAT
SERIAL (M-070823 ML-325783) AND BELOW

1 440 ₽
5

91739M ARM
SERIAL (M-070823 ML-325783) AND BELOW

ARM
SERIAL (M-070823 ML-325783) AND BELOW

0 ₽
6

17-80451M PIN, FLOAT

PIN, FLOAT

0 ₽
7

14181M NOZZLE, MAIN

NOZZLE, MAIN

0 ₽
8

80579M JET, MAIN (#80)
SERIAL (M-013401 ML-306026) AND ABOVE

JET, MAIN (#80)
SERIAL (M-013401 ML-306026) AND ABOVE

0 ₽
8

91741M JET, MAIN (#86)
SERIAL (M-013400 ML-306025) AND BELOW

JET, MAIN (#86)
SERIAL (M-013400 ML-306025) AND BELOW

0 ₽
9

91742M VALVE, NEEDLE
SERIAL (M-114253 ML-338166) AND ABOVE

VALVE, NEEDLE
SERIAL (M-114253 ML-338166) AND ABOVE

0 ₽
9

14182M VALVE, NEEDLE
SERIAL (M-070824 THRU 114252 ML-325784 THRU 338165)

VALVE, NEEDLE
SERIAL (M-070824 THRU 114252 ML-325784 THRU 338165)

860 ₽
9

91742M VALVE, NEEDLE
SERIAL (M-070823 ML-325783) AND BELOW

VALVE, NEEDLE
SERIAL (M-070823 ML-325783) AND BELOW

0 ₽
10

91743M COVER, PLATE

COVER, PLATE

0 ₽
11

27-91744M GASKET

GASKET

1 890 ₽
12

10-82500M SCREW

SCREW

0 ₽
13

10-80573M SCREW, AIR ADJUSTING

SCREW, AIR ADJUSTING

0 ₽
14

24-814460M SPRING, PILOT ADJUSTING

SPRING, PILOT ADJUSTING

0 ₽
15

10-83509M SCREW, IDLE
SERIAL (M-103611 ML-335565) AND ABOVE

SCREW, IDLE
SERIAL (M-103611 ML-335565) AND ABOVE

0 ₽
15

10-83509M SCREW, IDLE
SERIAL (M-103610 ML-335564) AND BELOW

SCREW, IDLE
SERIAL (M-103610 ML-335564) AND BELOW

0 ₽
16

91746M JET, PILOT (#46)

JET, PILOT (#46)

0 ₽
17

10-80434M SCREW, GUIDE

SCREW, GUIDE

0 ₽
18

10-80738M SCREW

SCREW

0 ₽
19

91747M COVER, PUMP

COVER, PUMP

0 ₽
20

91748M DIAPHRAGM

DIAPHRAGM

3 200 ₽
21

27-91749M GASKET, PUMP COVER

GASKET, PUMP COVER

1 810 ₽
22

91750M BODY, PUMP

BODY, PUMP

0 ₽
23

24-91751M SPRING

SPRING

1 100 ₽
24

91752M PLATE

PLATE

0 ₽
25

91753M DIAPHRAGM

DIAPHRAGM

2 820 ₽
26

27-91754 GASKET, PUMP BODY

GASKET, PUMP BODY

1 650 ₽
27

22-14183M SCREW, DRAIN
SERIAL (M-070824 ML-325784) AND ABOVE

SCREW, DRAIN
SERIAL (M-070824 ML-325784) AND ABOVE

400 ₽
28

27-13999M GASKET
SERIAL (M-070824 ML-325784) AND ABOVE

GASKET
SERIAL (M-070824 ML-325784) AND ABOVE

170 ₽
28

14184T REPAIR KIT, CARBURETOR
SERIAL (M-070824 ML-325784) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 14.

REPAIR KIT, CARBURETOR
SERIAL (M-070824 ML-325784) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 14.

13 550 ₽
28

91755T REPAIR KIT,CARBURETOR
SERIAL (M-070823 ML-325783) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 15.

REPAIR KIT,CARBURETOR
SERIAL (M-070823 ML-325783) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 15.

13 590 ₽
--

27-99997M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.

7 180 ₽
--

27-91719M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12.

0 ₽
--

27-14188M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 13.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 13.

5 160 ₽
