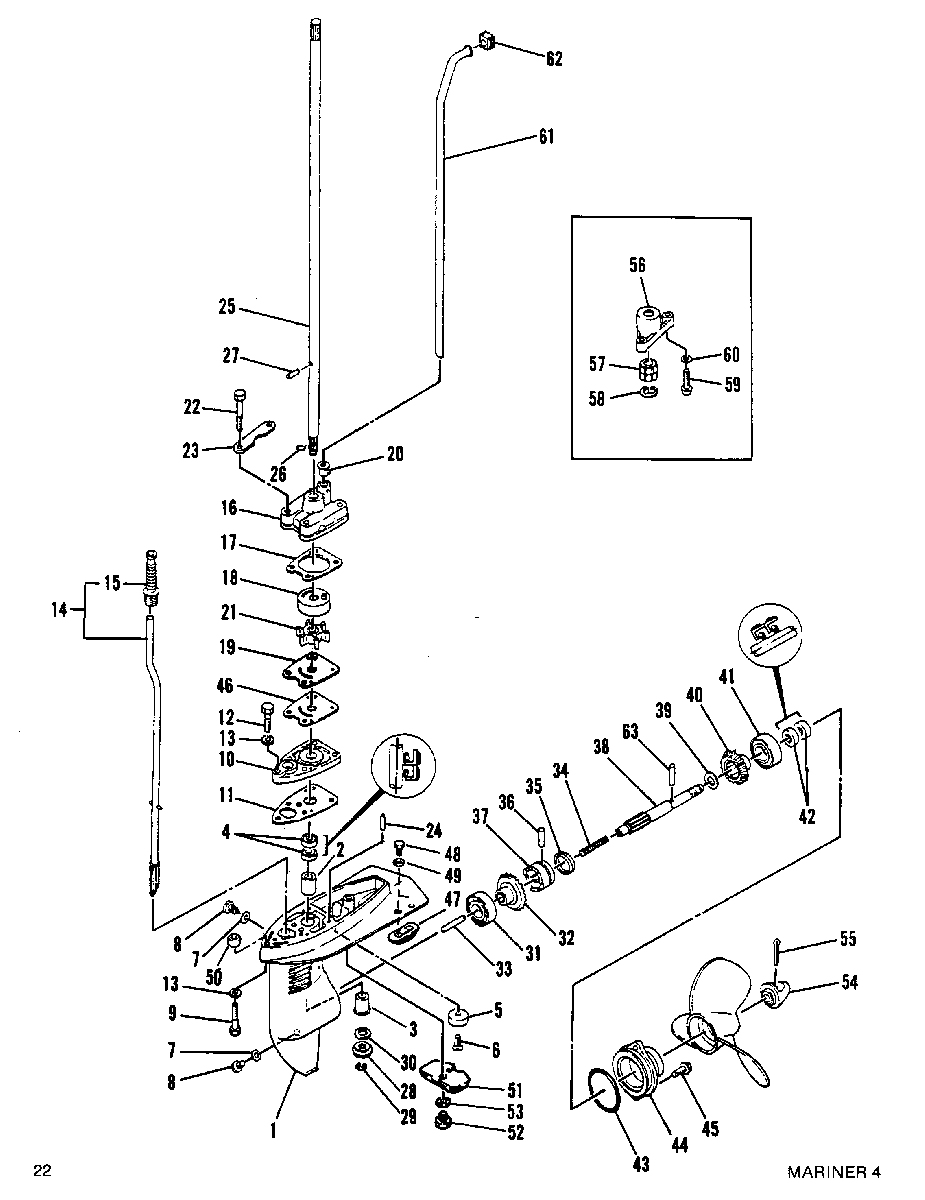

GEARHOUSING ASSEMBLY для Mariner - 4A 6E0-001011 AND UP

№

Артикул

Название
0-1

1651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-114253 ML-338166) AND ABOVE

GEARHOUSING ASS'Y (SHORT)
SERIAL (M-114253 ML-338166) AND ABOVE

0 ₽
0-1

1651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-114252 ML-338165) AND BELOW

GEARHOUSING ASS'Y (SHORT)
SERIAL (M-114252 ML-338165) AND BELOW

0 ₽
0-1

1651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-114253 ML-338166) AND ABOVE

GEARHOUSING ASS'Y (LONG)
SERIAL (M-114253 ML-338166) AND ABOVE

0 ₽
0-1

1651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

GEARHOUSING ASS'Y (LONG)
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

0 ₽
0-1

1651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-093347 ML-332747) AND BELOW

GEARHOUSING ASS'Y (LONG)
SERIAL (M-093347 ML-332747) AND BELOW

0 ₽
1

1651-810954M GEARHOUSING
SERIAL (M-114253 ML-338166) AND ABOVE

GEARHOUSING
SERIAL (M-114253 ML-338166) AND ABOVE

0 ₽
1

1651-8259M GEARHOUSING
SERIAL (M-093348 THRU 114252 NL-332748 THRU 338165)

GEARHOUSING
SERIAL (M-093348 THRU 114252 NL-332748 THRU 338165)

0 ₽
1

1651-8259M GEARHOUSING
SERIAL (M-093347 ML-332747) AND BELOW

GEARHOUSING
SERIAL (M-093347 ML-332747) AND BELOW

0 ₽
2

23-95476M BUSHING
SERIAL (M-043239 ML-212355) AND ABOVE

BUSHING
SERIAL (M-043239 ML-212355) AND ABOVE

0 ₽
3

23-95477M BUSHING
SERIAL (M-043239 ML-212355) AND ABOVE

BUSHING
SERIAL (M-043239 ML-212355) AND ABOVE

1 210 ₽
4

26-91726M OIL SEAL

OIL SEAL

900 ₽
5

95609M ANODE
SERIAL (M-055866 THRU 114252 ML-321427 THRU 338165)

ANODE
SERIAL (M-055866 THRU 114252 ML-321427 THRU 338165)

0 ₽
5

43107M ANODE
SERIAL (M-055885 ML-321425) AND BELOW

ANODE
SERIAL (M-055885 ML-321425) AND BELOW

0 ₽
6

10-91772M SCREW
SERIAL (M-055886 THRU 114252 ML-321427 THRU 338165)

SCREW
SERIAL (M-055886 THRU 114252 ML-321427 THRU 338165)

150 ₽
6

10-84367M SCREW
SERIAL (M-055885 ML-321426) AND BELOW

SCREW
SERIAL (M-055885 ML-321426) AND BELOW

0 ₽
7

27-81987 GASKET

GASKET

300 ₽
8

22-81924M PLUG

PLUG

760 ₽
9

10-18851M BOLT, W/WASHER
SERIAL (M-093348 ML-332748) AND ABOVE

BOLT, W/WASHER
SERIAL (M-093348 ML-332748) AND ABOVE

0 ₽
9

10-14185M BOLT, W/WASHER
SERIAL (M-103610 ML-335564) AND BELOW

BOLT, W/WASHER
SERIAL (M-103610 ML-335564) AND BELOW

0 ₽
9

10-83285M BOLT
SERIAL (M-070823 ML-325783) AND BELOW

BOLT
SERIAL (M-070823 ML-325783) AND BELOW

120 ₽
10

8M0080450 PLATE
SERIAL (M-103611 ML-335565) AND ABOVE

PLATE
SERIAL (M-103611 ML-335565) AND ABOVE

2 800 ₽
10

8M0080450 PLATE
SERIAL (M-103610 ML-335564) AND BELOW

PLATE
SERIAL (M-103610 ML-335564) AND BELOW

2 800 ₽
10

8M0080450 PLATE
SERIAL (M-055885 ML-321426) AND BELOW

PLATE
SERIAL (M-055885 ML-321426) AND BELOW

2 800 ₽
11

27-96295 GASKET

GASKET

520 ₽
12

10-82405M BOLT

BOLT

0 ₽
13

12-82214M WASHER

WASHER

30 ₽
14

96297M SHIFT CAM ASS'Y (SHORT)

SHIFT CAM ASS'Y (SHORT)

0 ₽
14

96298M SHIFT CAM ASS'Y (LONG)

SHIFT CAM ASS'Y (LONG)

0 ₽
15

15304M BOOT, SHIFT ROD

BOOT, SHIFT ROD

1 370 ₽
16

46-96299M HOUSING, WATER PUMP

HOUSING, WATER PUMP

1 370 ₽
17

27-96300 GASKET, WATER PUMP

GASKET, WATER PUMP

770 ₽
18

96301M INSERT, CARTRIDGE

INSERT, CARTRIDGE

0 ₽
18

96302M INSERT, CHROME (OPT)

INSERT, CHROME (OPT)

7 590 ₽
19

96303M OUTER PLATE, CARTRIDGE

OUTER PLATE, CARTRIDGE

0 ₽
19

96304M OUTER PLATE, CHROME (OPT)

OUTER PLATE, CHROME (OPT)

8 120 ₽
20

26-14186M SEAL
SERIAL (M-070824 ML-325784) AND ABOVE

SEAL
SERIAL (M-070824 ML-325784) AND ABOVE

500 ₽
20

26-80398M SEAL
SERIAL (M-070823 ML-325783) AND BELOW

SEAL
SERIAL (M-070823 ML-325783) AND BELOW

900 ₽
21

47-96305M IMPELLER

IMPELLER

3 920 ₽
22

10-84657M BOLT

BOLT

0 ₽
23

96306M PLATE

PLATE

0 ₽
24

17-82357M PIN

PIN

0 ₽
25

45-96307M DRIVESHAFT (SHORT)

DRIVESHAFT (SHORT)

14 130 ₽
25

45-96308M DRIVESHAFT (LONG)

DRIVESHAFT (LONG)

0 ₽
26

53-96309M CLIP

CLIP

140 ₽
27

17-82355M PIN

PIN

0 ₽
28

43-96310M PINION

PINION

3 120 ₽
29

53-82331M SNAP RING

SNAP RING

180 ₽
30

12-96311M WASHER

WASHER

0 ₽
31

30-82291T BEARING
SERIAL (M-070824 ML-325784) AND ABOVE

BEARING
SERIAL (M-070824 ML-325784) AND ABOVE

4 170 ₽
31

30-82291T BEARING
SERIAL (M-070823 ML-325783) AND BELOW

BEARING
SERIAL (M-070823 ML-325783) AND BELOW

4 170 ₽
32

43-96312M GEAR, FORWARD

GEAR, FORWARD

7 240 ₽
33

81014M PLUNGER, SHIFT

PLUNGER, SHIFT

0 ₽
34

24-82077M SPRING

SPRING

0 ₽
35

53-81013M RING, CROSS PIN

RING, CROSS PIN

180 ₽
36

17-81902M PIN, CROSS

PIN, CROSS

0 ₽
37

52-96313M CLUTCH, DOG

CLUTCH, DOG

0 ₽
38

44-96314M SHAFT, PROPELLER

SHAFT, PROPELLER

18 590 ₽
39

12-96315M WASHER

WASHER

0 ₽
40

43-96316M GEAR, REVERSE

GEAR, REVERSE

12 010 ₽
41

30-82291T BEARING
SERIAL (M-043239 ML-212355) AND ABOVE

BEARING
SERIAL (M-043239 ML-212355) AND ABOVE

4 170 ₽
41

30-82291T BEARING
SERIAL (M-043238 ML-212354) AND BELOW

BEARING
SERIAL (M-043238 ML-212354) AND BELOW

4 170 ₽
42

26-96317M OIL SEAL

OIL SEAL

1 190 ₽
43

25-82280M O-RING

O-RING

590 ₽
44

96318M CAP, GEARHOUSING

CAP, GEARHOUSING

0 ₽
45

10-91686M BOLT

BOLT

0 ₽
46

27-41822 GASKET, WATER PUMP
SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)

GASKET, WATER PUMP
SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)

880 ₽
47

97-18852M ANODE
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

ANODE
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

1 990 ₽
48

10-826957M BOLT
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

BOLT
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

0 ₽
49

12-82214M WASHER
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

WASHER
SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)

30 ₽
50

18853M COLLAR
SERIAL (M-093348 ML-332748) AND ABOVE

COLLAR
SERIAL (M-093348 ML-332748) AND ABOVE

0 ₽
51

810945M ANODE
SERIAL (M-114253 ML-338166) AND ABOVE

ANODE
SERIAL (M-114253 ML-338166) AND ABOVE

0 ₽
52

10-91772M SCREW
SERIAL (M-114253 ML-338166) AND ABOVE

SCREW
SERIAL (M-114253 ML-338166) AND ABOVE

150 ₽
53

12-82214M WASHER
SERIAL (M-114253 ML-338166) AND ABOVE

WASHER
SERIAL (M-114253 ML-338166) AND ABOVE

30 ₽
54

859931 NUT, PROPELLER

NUT, PROPELLER

820 ₽
55

18-82132M PIN,C OTTER

PIN,C OTTER

110 ₽
56

96321M HOUSING, BEARING (LONG)

HOUSING, BEARING (LONG)

0 ₽
57

23-96322M BUSHING, DRIVE SHAFT (LONG)

BUSHING, DRIVE SHAFT (LONG)

0 ₽
58

53-96323M SNAP RING (LONG)

SNAP RING (LONG)

220 ₽
59

10-83108M SCREW (LONG)

SCREW (LONG)

0 ₽
60

12-82211M WASHER (LONG)

WASHER (LONG)

40 ₽
61

32-96319M TUBE, WATER (SHORT)

TUBE, WATER (SHORT)

1 750 ₽
61

32-96320M TUBE, WATER (LONG)

TUBE, WATER (LONG)

2 020 ₽
62

26-80397M SEAL

SEAL

460 ₽
63

17-17554M PIN, DRIVE

PIN, DRIVE

730 ₽
63

27-96324M LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 16.

LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 16.

3 520 ₽
63

96325T WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 17.

WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 17.

8 320 ₽
63

96326M CHROME PUMP KIT (OPT)
CONTENTS INDICATED BY FOOTNOTE 18.

CHROME PUMP KIT (OPT)
CONTENTS INDICATED BY FOOTNOTE 18.

0 ₽
--

27-99997M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.

7 180 ₽
--

27-91719M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12.

0 ₽
--

27-14188M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 13.

POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 13.

5 160 ₽
