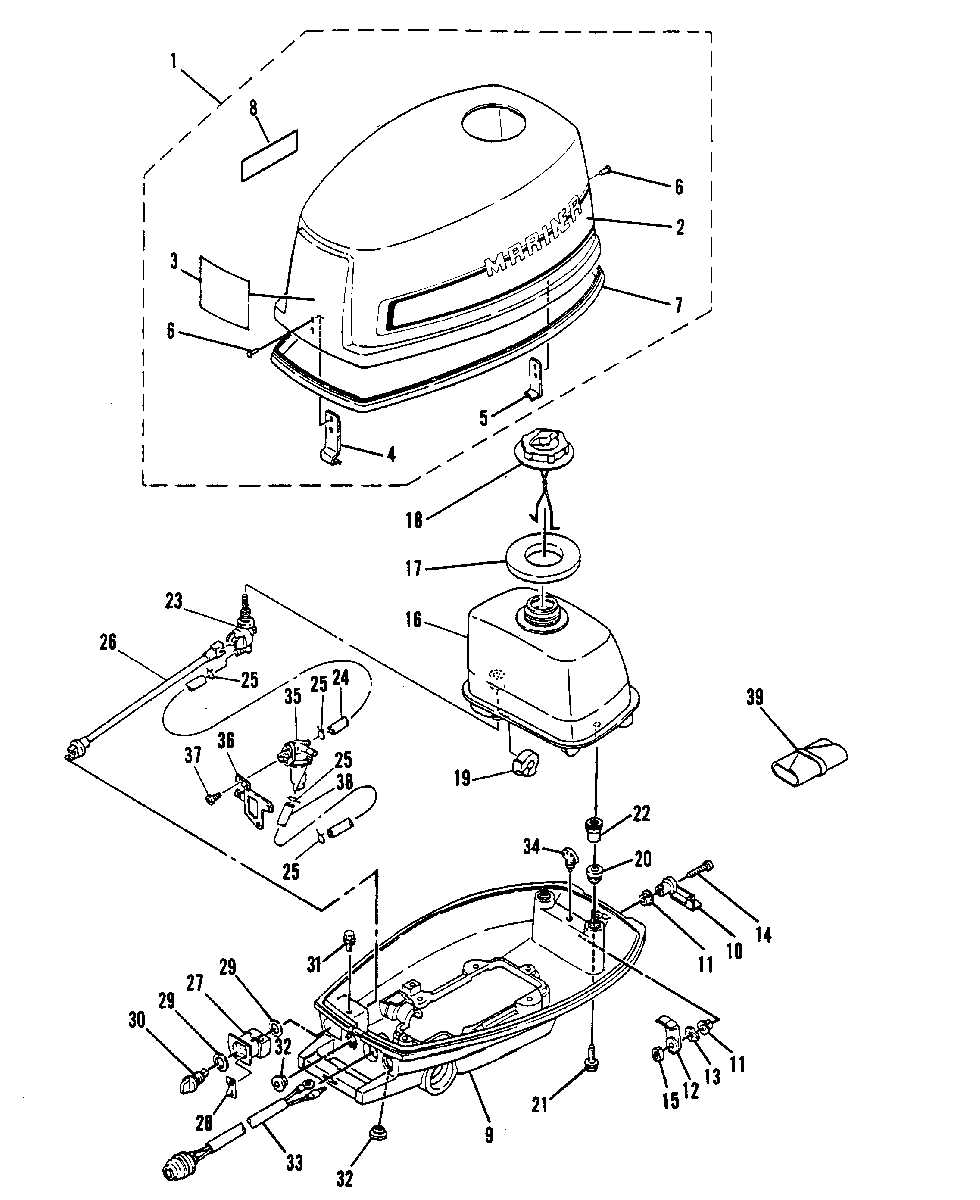

COWLING для Mariner - 4A 6E0-001011 AND UP
-
№АртикулНазвание
-
12168-9339M TOP COWLING ASS'YTOP COWLING ASS'Y
-
237-810932A90 DECAL, SIDE SET
SERIAL (M-114253 ML-338166) AND ABOVEDECAL, SIDE SET
SERIAL (M-114253 ML-338166) AND ABOVE -
237-11913M DECAL, SIDE SET
SERIAL (M-114252 ML-338165) AND BELOWDECAL, SIDE SET
SERIAL (M-114252 ML-338165) AND BELOW -
3N.S.S. DECAL, FRONT (PART OF 37-810932A90)
SERIAL (M-114253 ML-338166) AND ABOVEDECAL, FRONT (PART OF 37-810932A90)
SERIAL (M-114253 ML-338166) AND ABOVE -
337-11914M DECAL, FRONT
SERIAL (M-114252 ML-338165) AND BELOWDECAL, FRONT
SERIAL (M-114252 ML-338165) AND BELOW -
4814454M HOOK
SERIAL (M-103611 ML-335565) AND ABOVEHOOK
SERIAL (M-103611 ML-335565) AND ABOVE -
4814454M HOOK
SERIAL (M-103610 ML-335564) AND BELOWHOOK
SERIAL (M-103610 ML-335564) AND BELOW -
598957M HOLDER, CLAMP BANDHOLDER, CLAMP BAND
-
617-83140M RIVETRIVET
-
791658M SEALSEAL
-
837-81202M INDICATOR, SHIFT
SERIAL (M-070824 ML-325784) AND ABOVEINDICATOR, SHIFT
SERIAL (M-070824 ML-325784) AND ABOVE -
92168-9790M COWLING, BOTTOM
SERIAL (M-093348 ML-332748) AND ABOVECOWLING, BOTTOM
SERIAL (M-093348 ML-332748) AND ABOVE -
92168-9790M COWLING, BOTTOM
SERIAL (M-093347 ML-332747) AND BELOWCOWLING, BOTTOM
SERIAL (M-093347 ML-332747) AND BELOW -
1091659M LEVER, CLAMPLEVER, CLAMP
-
1123-81949M BUSHINGBUSHING
-
1291660M LEVER, CLAMPLEVER, CLAMP
-
1313-81869M WASHER, WAVEWASHER, WAVE
-
1410-8527876 SCREW
SERIAL (M-114253 ML-338166) AND ABOVESCREW
SERIAL (M-114253 ML-338166) AND ABOVE -
1410-8527876 SCREW
SERIAL (M-114252 ML-338165) AND BELOWSCREW
SERIAL (M-114252 ML-338165) AND BELOW -
1511-82390M NUTNUT
-
161252-8249M FUEL TANKFUEL TANK
-
1727-91662M GASKET, CAPGASKET, CAP
-
1836-91663T CAP ASS'YCAP ASS'Y
-
1925-91664M GROMMETGROMMET
-
2025-91665M GROMMETGROMMET
-
2110-11945M BOLTBOLT
-
2223-95466M COLLAR
SERIAL (M-043239 ML-212355) AND ABOVECOLLAR
SERIAL (M-043239 ML-212355) AND ABOVE -
2223-804344003 COLLAR
SERIAL (M-043238 ML-212354) AND BELOWCOLLAR
SERIAL (M-043238 ML-212354) AND BELOW -
2335-91667T FUEL COCK ASS'YFUEL COCK ASS'Y
-
2432-82012M HOSE
SERIAL (M-082241 ML-329127) AND ABOVEHOSE
SERIAL (M-082241 ML-329127) AND ABOVE -
2432-82012M HOSE
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)HOSE
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126) -
2432-82012M HOSE
SERIAL (M-055885 ML-321426) AND BELOWHOSE
SERIAL (M-055885 ML-321426) AND BELOW -
2554-82047M CLAMPCLAMP
-
2691669M SHAFT, FUEL SHUT OFFSHAFT, FUEL SHUT OFF
-
2723-91670M BUSHINGBUSHING
-
2837-91671M GRAPHIC, FUEL SHUT OFFGRAPHIC, FUEL SHUT OFF
-
2912-91672M WASHERWASHER
-
3041249M LEVER, FUEL SHUT OFFLEVER, FUEL SHUT OFF
-
3110-91674M BOLT, FLANGE
SERIAL (M-114253 ML-338166) AND ABOVEBOLT, FLANGE
SERIAL (M-114253 ML-338166) AND ABOVE -
3110-91674M BOLT
SERIAL (M-114252 ML-338165) AND BELOWBOLT
SERIAL (M-114252 ML-338165) AND BELOW -
3225-91675M GROMMETGROMMET
-
3387-93102M STOP SWITCH ASS'YSTOP SWITCH ASS'Y
-
3480033M HOLDER,PINHOLDER,PIN
-
3535-11916M FUEL FILTER ASS'Y
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)FUEL FILTER ASS'Y
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126) -
3611917M BRACKET, FUEL FILTER
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)BRACKET, FUEL FILTER
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126) -
3710-83509M SCREW
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)SCREW
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126) -
3832-82012M HOSE
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)HOSE
SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126) -
3991-803581 TOOL KITTOOL KIT
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- • COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING/CLAMP AND SWIVEL BRACKET
- FUEL TANK (PLASTIC-6.6 GALLON) (NOT ORIGINAL EQUIPMENT TANK)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- OPTIONAL FUEL TANK ASSEMBLY
- OPTIONAL PARTS
- OPTIONAL REMOTE FUEL TANK PARTS
- PROP CHART
- RECOIL STARTER
- THROTTLE CONTROL
