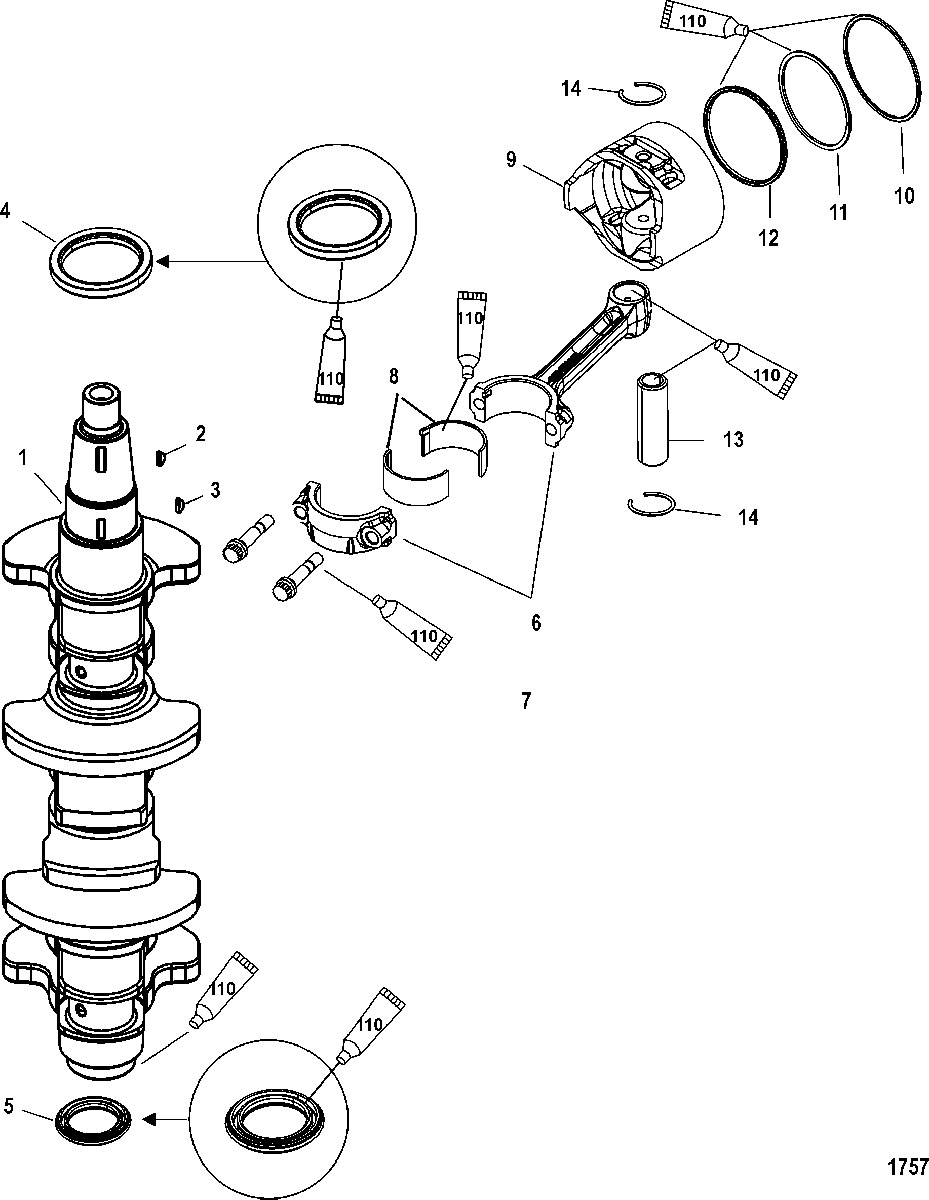

Crankshaft, Pistons and Connecting Rods для Mariner - 50 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
1413-857077T02 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
228-91800 KEY, WoodruffKEY, Woodruff
-
328-893761 KEYKEY
-
426-893949 SEALSEAL
-
526-893948 SEALSEAL
-
6600-893530T01 CONNECTING RODCONNECTING ROD
-
710-8M0049884 BOLTBOLT
-
823-893630001 BEARING, BlackBEARING, Black
-
823-893630 BEARING, BrownBEARING, Brown
-
823-893630002 BEARING, BlueBEARING, Blue
-
9700-893524T08 PISTON ASSEMBLY, StandardPISTON ASSEMBLY, Standard
-
9700-8M0057775 PISTON ASSEMBLY
.25MM Oversized/Bare PistonPISTON ASSEMBLY
.25MM Oversized/Bare Piston -
9700-8M0057776 PISTON ASSEMBLY
.50MM Oversized/Bare PistonPISTON ASSEMBLY
.50MM Oversized/Bare Piston -
1039-893525A01 RING SET, Piston
StandardRING SET, Piston
Standard -
1039-893525A02 RING SET, Piston
.25MM OversizedRING SET, Piston
.25MM Oversized -
1039-893525A03 RING SET, Ring
.50MM OversizedRING SET, Ring
.50MM Oversized -
11NSS NOT SOLD SEPARATE, Piston Ring - Second
StandardNOT SOLD SEPARATE, Piston Ring - Second
Standard -
11NSS NOT SOLD SEPARATE, Piston Ring - Second
25 MM OversizedNOT SOLD SEPARATE, Piston Ring - Second
25 MM Oversized -
11NSS NOT SOLD SEPARATE, Piston Ring - Second
50 MM OversizedNOT SOLD SEPARATE, Piston Ring - Second
50 MM Oversized -
12NSS NOT SOLD SEPARATE, Ring, Piston OilNOT SOLD SEPARATE, Ring, Piston Oil
-
1341-893863 PIN, PistonPIN, Piston
-
1440-893529 RETAINER, Piston PinRETAINER, Piston Pin
-
-27-883599A02 GASKET SETGASKET SET
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
