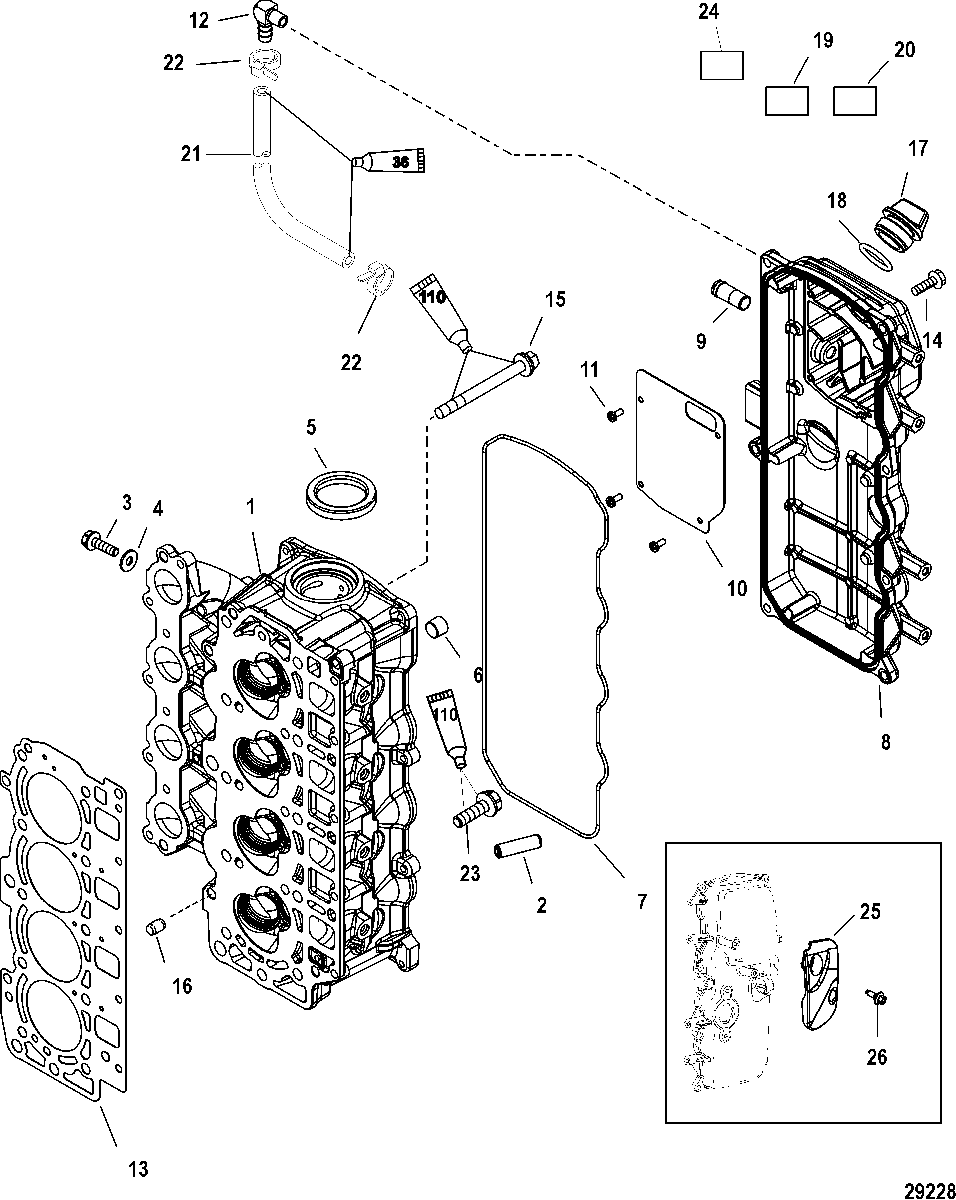

Cylinder Head для Mariner - 50 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
-893505T05 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
1893505T06 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
2858266 GUIDEGUIDE
-
310-4000325 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
412-859768 WASHERWASHER
-
526-893549 SEAL, OilSEAL, Oil
-
622-875209 PIPE PLUGPIPE PLUG
-
725-8M0011870 SEALSEAL
-
8893694T02 COVER ASSEMBLYCOVER ASSEMBLY
-
9NSS NOT SOLD SEPARATE, Breather PipeNOT SOLD SEPARATE, Breather Pipe
-
10NSS NOT SOLD SEPARATE, Baffle PlateNOT SOLD SEPARATE, Baffle Plate
-
11NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
1222-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
1327-8M0118179 GASKETGASKET
-
1410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1510-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
1617-825010 PIN, DowelPIN, Dowel
-
17859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
1825-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
19NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
20NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve ClearanceNOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
-
2132-77653101 HOSE, (48.00 Inches Bulk), Cut to 19 Inches - To Fitting in Adaptor PlateHOSE, (48.00 Inches Bulk), Cut to 19 Inches - To Fitting in Adaptor Plate
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2310-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
24NSS NOT SOLD SEPARATE, Decal HP IDNOT SOLD SEPARATE, Decal HP ID
-
258M0026326 DEFLECTOR, CowlDEFLECTOR, Cowl
-
2610-8M0012661 SCREWSCREW
-
-27-883599A02 GASKET SETGASKET SET
-
-61-893678T03 POWERHEAD ASSEMBLY
(Does Not Include Cylinder Head)POWERHEAD ASSEMBLY
(Does Not Include Cylinder Head)
