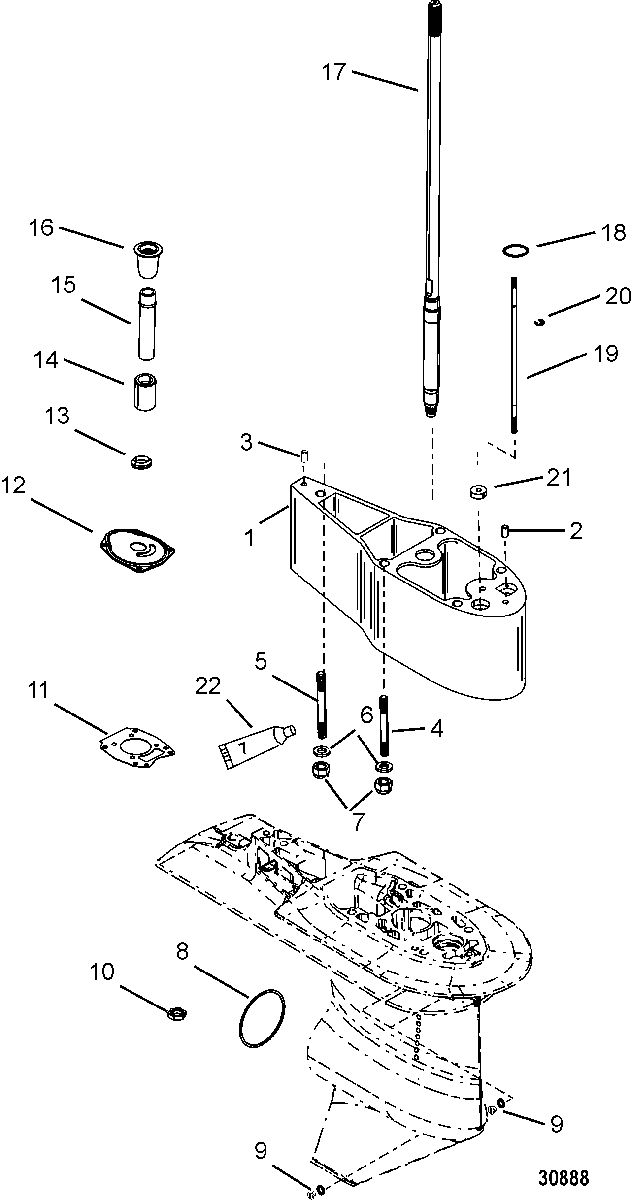

Extension Kit - 5 Inch, Driveshaft Housing (12092A20) для Mariner - 50 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
-12092A20 CONVERSION KIT, X-Long-BigfootCONVERSION KIT, X-Long-Bigfoot
-
112092A3 SPACER KITSPACER KIT
-
217-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
416-8M0034462 STUD, (M10 x 190)STUD, (M10 x 190)
-
516-8M0034467 STUD, (M10 x 227)STUD, (M10 x 227)
-
612-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
711-40140 NUT, (M10)NUT, (M10)
-
825-861844 O-RINGO-RING
-
926-830749 SEALSEAL
-
1011-35921 NUT, (.625-18)NUT, (.625-18)
-
1127-430472 GASKETGASKET
-
12866233001 FACEPLATEFACEPLATE
-
-26-816575A2 SEAL KITSEAL KIT
-
1326-8M2014338 SEAL, FaceSEAL, Face
-
NSNSS NOT SOLD SEPARATE, TOOL, Seal Kit SettingNOT SOLD SEPARATE, TOOL, Seal Kit Setting
-
14430232 SEALSEAL
-
1532-8M4501430 TUBE, WaterTUBE, Water
-
168M0109700 COUPLERCOUPLER
-
1745-875222A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1825-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
19884565A00 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
2053-29641 E RINGE RING
-
2123-813745 SPACERSPACER
-
2292-95812 LOCTITE 271 THREADLOCKER, .5 mlLOCTITE 271 THREADLOCKER, .5 ml
