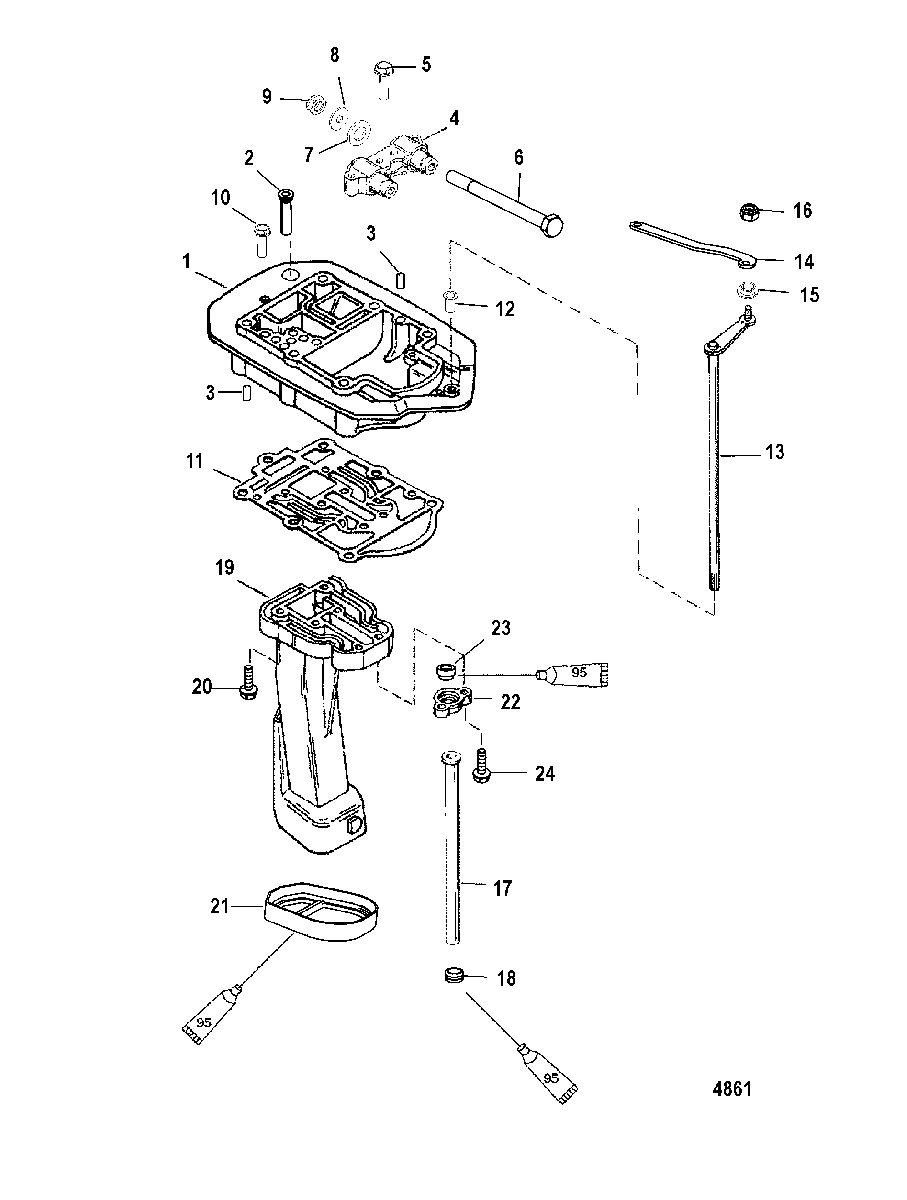

Exhaust Plate для Mariner - 55 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
119653T3 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
221-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
317-23784 PIN, DowelPIN, Dowel
-
41400-8M4501491 MOUNT, UpperMOUNT, Upper
-
510-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
610-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
712-32834 WASHER, NeopreneWASHER, Neoprene
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
911-896963 NUT, (M12)NUT, (M12)
-
1010-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
1127-8M0000820 GASKET
(Not Used on Jet Models)GASKET
(Not Used on Jet Models) -
1223-48237 BUSHING
(Not Used on Jet Models)BUSHING
(Not Used on Jet Models) -
13815639A10 SHIFT SHAFT
(Upper)(Long)(Not Used on Jet Models)SHIFT SHAFT
(Upper)(Long)(Not Used on Jet Models) -
13812891A7 SHIFT SHAFT
(Upper)(Long)(Electric)(Not Used on Jet Models)SHIFT SHAFT
(Upper)(Long)(Electric)(Not Used on Jet Models) -
13815639A9 SHIFT SHAFT
(Upper)(Long/LL)(Manual)(Not Used on Jet Models)SHIFT SHAFT
(Upper)(Long/LL)(Manual)(Not Used on Jet Models) -
14812872A2 SHIFT LINK
(Not Used on Jet Models)SHIFT LINK
(Not Used on Jet Models) -
1523-48475 BUSHING
(Not Used on Jet Models)BUSHING
(Not Used on Jet Models) -
1611-401386 NUT, (M6) Stainless Steel
(Not Used on Jet Models)NUT, (M6) Stainless Steel
(Not Used on Jet Models) -
1732-8M0042795 TUBE, Water
(Short)TUBE, Water
(Short) -
1732-8M0042794 TUBE, Water
(Long)TUBE, Water
(Long) -
1825-93221002 GROMMETGROMMET
-
198M0045214 TUBE, ExhaustTUBE, Exhaust
-
2010-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
21812886001 SEALSEAL
-
2299019 CLAMPCLAMP
-
2342941001 SEAL, Water Tube
(Upper)SEAL, Water Tube
(Upper) -
2410-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
-27-812867A97 GASKET SETGASKET SET
