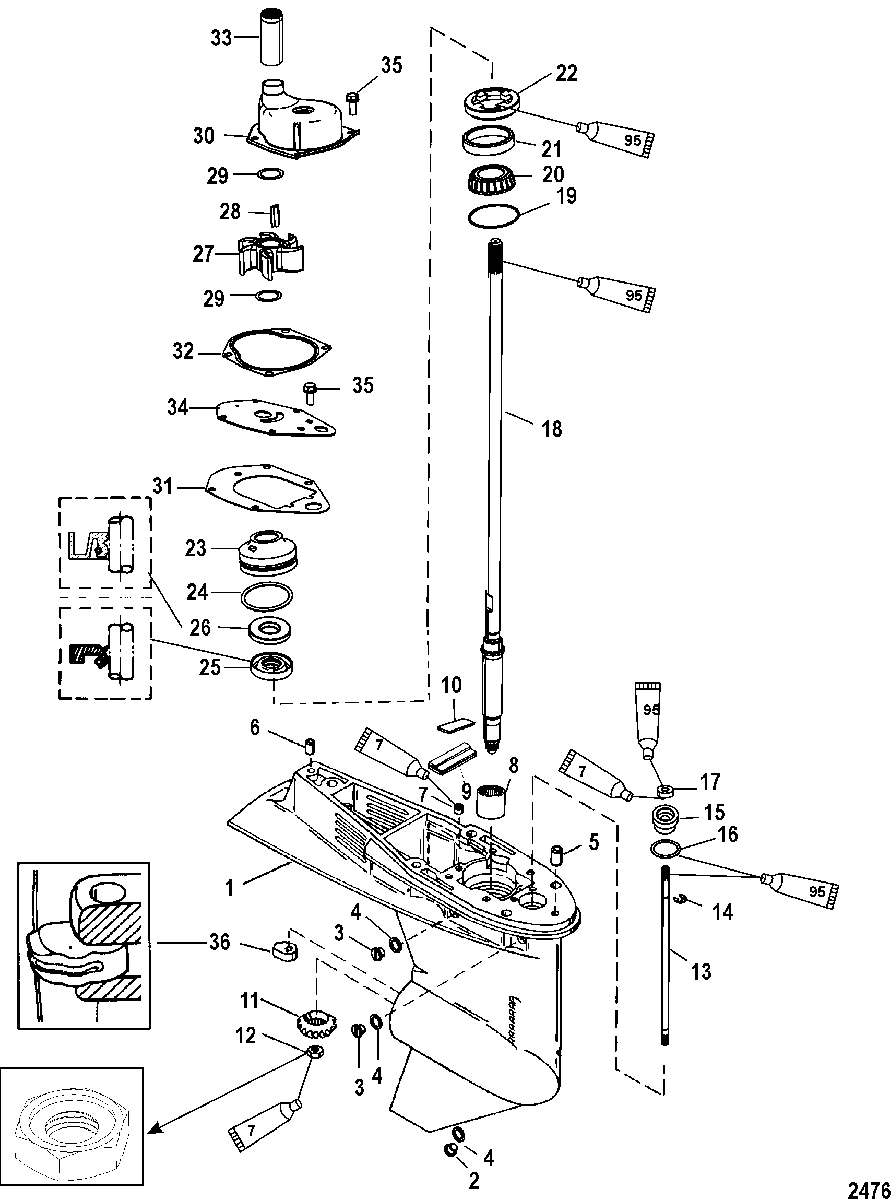

Gear Housing, Driveshaft 1.64:1 Gear Ratio для Mariner - 55 (3 CYL.) 0P325500 & Up

№

Артикул

Название
-

1671-9760T23 GEAR HOUSING ASSEMBLY, Complete -3.44 Inch/87.37 mm Torpedo Diameter
(Short)

GEAR HOUSING ASSEMBLY, Complete -3.44 Inch/87.37 mm Torpedo Diameter
(Short)

276 740 ₽
-

1671-9760T25 GEAR HOUSING ASSEMBLY, Complete -3.44 Inch/87.37 mm Torpedo Diameter
(Long) Model Length Designation- Long =20 Inch

GEAR HOUSING ASSEMBLY, Complete -3.44 Inch/87.37 mm Torpedo Diameter
(Long) Model Length Designation- Long =20 Inch

310 900 ₽
-

1671-9760T28 GEAR HOUSING ASSEMBLY, Complete - 3.44 Inch/87.37 mm Torpedo Diameter
(LL) Model Length Designation- LL=22.50 Inch

GEAR HOUSING ASSEMBLY, Complete - 3.44 Inch/87.37 mm Torpedo Diameter
(LL) Model Length Designation- LL=22.50 Inch

310 900 ₽
1

1671-9760T42 GEAR HOUSING ASSEMBLY, Basic
(Basic)

GEAR HOUSING ASSEMBLY, Basic
(Basic)

90 020 ₽
2

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
2

22-8M0058389 PLUG KIT, Drain (Magnetic)

PLUG KIT, Drain (Magnetic)

1 720 ₽
3

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
4

12-191833 SEAL

SEAL

60 ₽
5

17-8M0084244 PIN, Dowel - With Hole (.375 x .625)

PIN, Dowel - With Hole (.375 x .625)

210 ₽
6

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
7

22-878089 PLUG, Pipe (.0625-27)

PLUG, Pipe (.0625-27)

500 ₽
8

31-812768 BEARING, Roller

BEARING, Roller

2 100 ₽
9

818226A1 SEAL/PLATE KIT

SEAL/PLATE KIT

440 ₽
10

NSS NOT SOLD SEPARATE, Filler Plate

NOT SOLD SEPARATE, Filler Plate

0 ₽
11

43-813694T GEAR, Pinion (14 Teeth)

GEAR, Pinion (14 Teeth)

10 900 ₽
12

11-55910 NUT, (.437-20)

NUT, (.437-20)

750 ₽
13

812732A1 SHIFT SHAFT ASSEMBLY
(Short/Long)

SHIFT SHAFT ASSEMBLY
(Short/Long)

4 500 ₽
13

815420 SHIFT SHAFT
(LL)

SHIFT SHAFT
(LL)

9 150 ₽
14

53-29641 E RING

E RING

140 ₽
15

23-813696A2 BUSHING ASSEMBLY

BUSHING ASSEMBLY

1 380 ₽
16

25-45258 O-RING, (.987 x .103)

O-RING, (.987 x .103)

480 ₽
17

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
18

45-815422 DRIVESHAFT
(Short-60 Electric)

DRIVESHAFT
(Short-60 Electric)

43 310 ₽
18

45-812731 DRIVESHAFT
(Long-60 Electric)

DRIVESHAFT
(Long-60 Electric)

35 230 ₽
18

45-815421 DRIVESHAFT
(LL)(60 Electric)

DRIVESHAFT
(LL)(60 Electric)

36 430 ₽
18

45-812731 DRIVESHAFT
(55 Manual)

DRIVESHAFT
(55 Manual)

35 230 ₽
19

15-8M0063262 SHIM SET

SHIM SET

6 030 ₽
20

31-77420A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

3 490 ₽
21

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
22

11-8128201 NUT

NUT

3 420 ₽
23

46-812966A7 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

9 840 ₽
24

25-30224 O-RING, (1.859 x .139)

O-RING, (1.859 x .139)

390 ₽
25

26-814669 SEAL, Oil

SEAL, Oil

970 ₽
26

26-814670 SEAL, Oil

SEAL, Oil

670 ₽
27

47-19453T IMPELLER

IMPELLER

6 440 ₽
28

28-8M0032831 KEY

KEY

620 ₽
29

12-8M0005777 WASHER

WASHER

270 ₽
30

46-812966A12 PUMP ASSEMBLY, Water

PUMP ASSEMBLY, Water

24 440 ₽
31

27-8M4502052 GASKET
(Lower)

GASKET
(Lower)

580 ₽
32

27-822189 GASKET, Upper Water Pump
(Upper)

GASKET, Upper Water Pump
(Upper)

730 ₽
33

43023 SEAL
(Short/Long)

SEAL
(Short/Long)

940 ₽
34

19700A2 FACE PLATE

FACE PLATE

2 330 ₽
35

10-8248324 SCREW, (M6 x 16)

SCREW, (M6 x 16)

220 ₽
36

760394 CAM, Shift Control

CAM, Shift Control

2 570 ₽
-

27-812867A97 GASKET SET

GASKET SET

7 550 ₽
-

46-812966A12 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

24 440 ₽
-

26-814669A2 SEAL KIT, Gear Housing

SEAL KIT, Gear Housing

5 940 ₽
