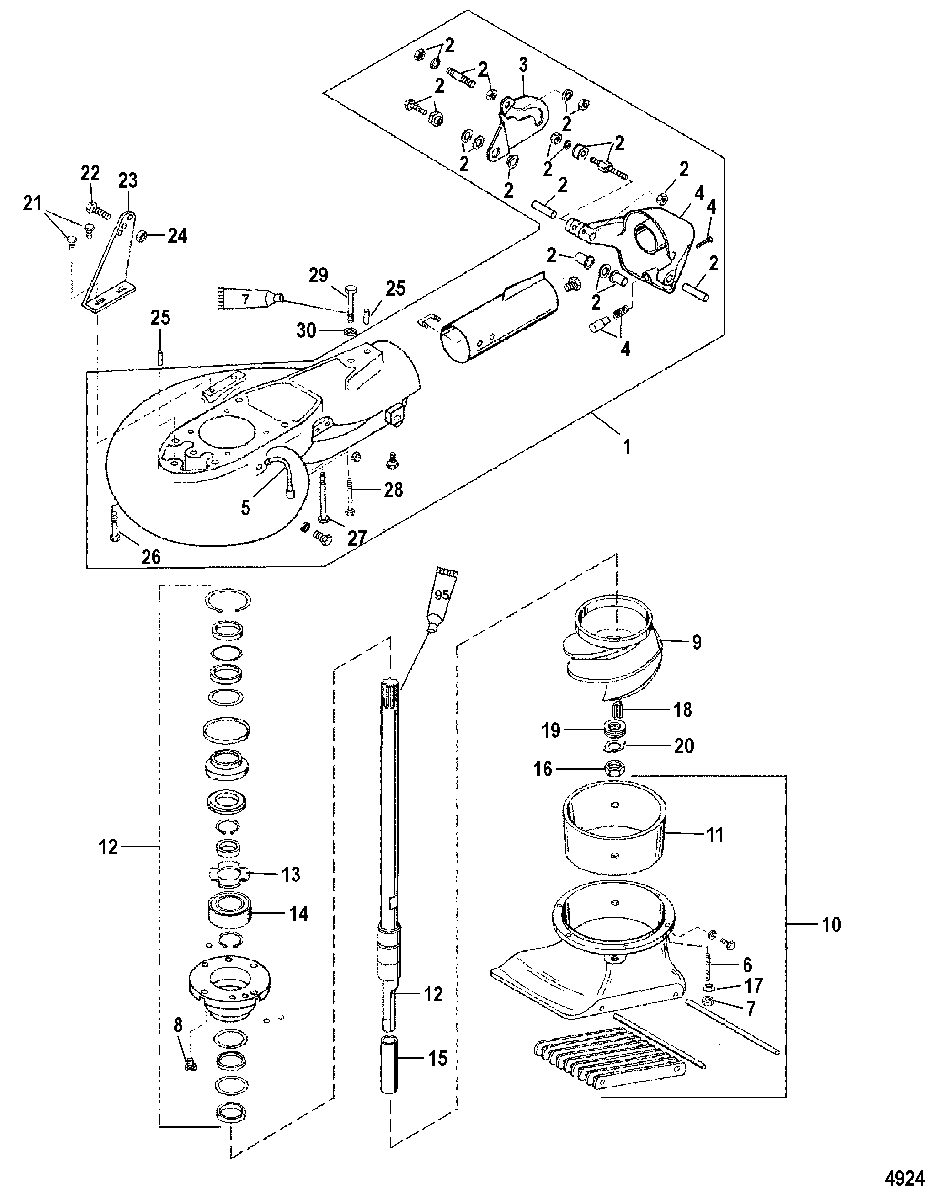

Jet Pump Assembly для Mariner - 55 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
-856143A6 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1855767T60 HOUSING, PumpHOUSING, Pump
-
2878377 SHIFT LINKAGE KITSHIFT LINKAGE KIT
-
3878382 CAMCAM
-
4878380 GATE, Reverse - With BumperGATE, Reverse - With Bumper
-
532-827490 HOSE, LubeHOSE, Lube
-
616-855840 STUD, (.312-18 x 1.81)STUD, (.312-18 x 1.81)
-
711-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
810-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
947-855708T60 IMPELLERIMPELLER
-
1080141260 HOUSING, IntakeHOUSING, Intake
-
118271882 LINERLINER
-
1245-85576960 DRIVESHAFTDRIVESHAFT
-
1312-8796521 THRUST WASHERTHRUST WASHER
-
1430-8796531 BEARING, BallBEARING, Ball
-
1523-8271891 SLEEVESLEEVE
-
1611-8271901 NUTNUT
-
1712-36001 WASHERWASHER
-
1828-801405875 KEYKEY
-
1915-801404875 SHIM, ImpellerSHIM, Impeller
-
2014-801403875 TAB WASHERTAB WASHER
-
2110-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2210-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
23801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2411-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
2517-801407 PIN, DowelPIN, Dowel
-
2610-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
2710-4010890 SCREW, (M10 x 90) Hex Flange - Stainless SteelSCREW, (M10 x 90) Hex Flange - Stainless Steel
-
2810-4010870 SCREW, (M10 x 70) Hex Flange - Stainless SteelSCREW, (M10 x 70) Hex Flange - Stainless Steel
-
2910-95802 SCREW, (.375-16 x 2.750) Stainless SteelSCREW, (.375-16 x 2.750) Stainless Steel
-
3012-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
