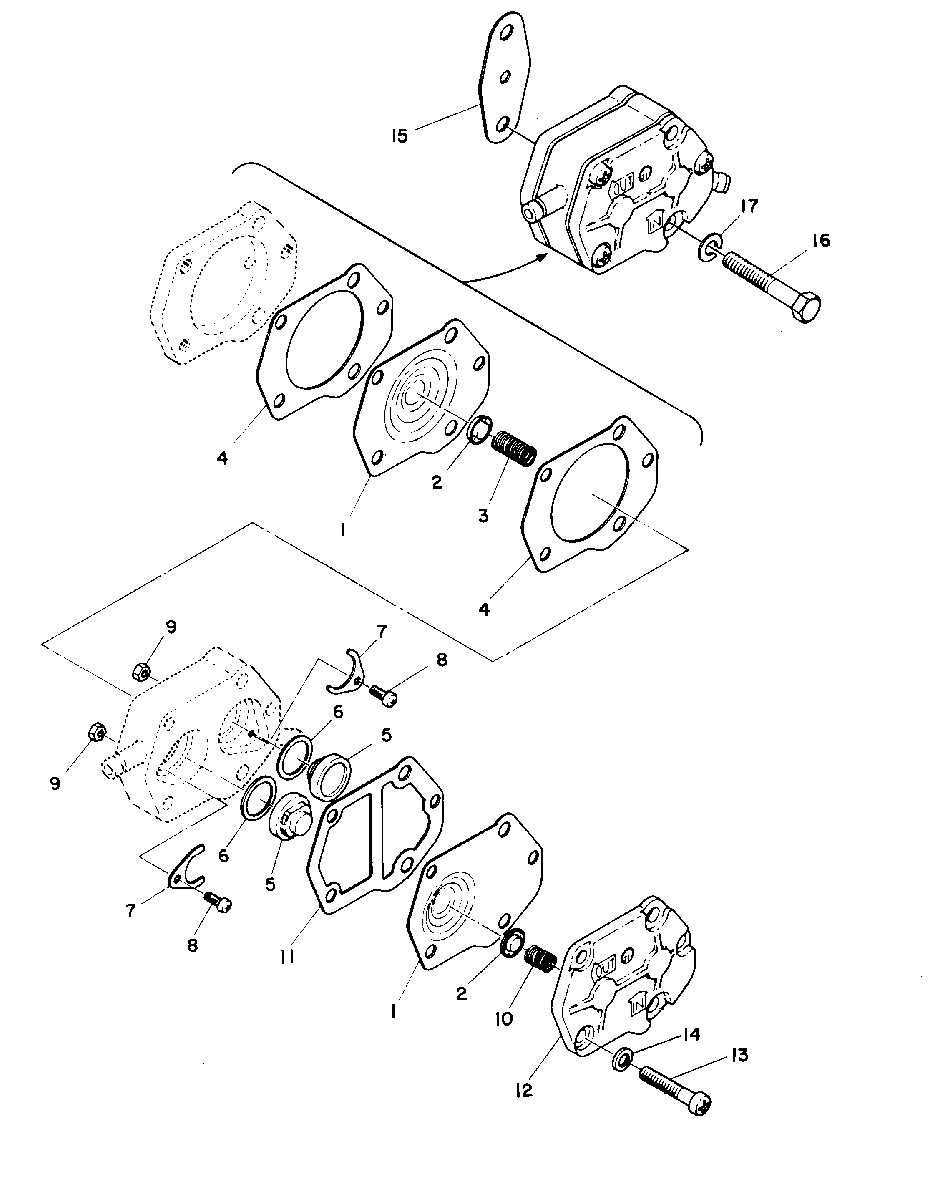

FUEL PUMP для Mariner - 55 663-02730 AND BELOW
-
№АртикулНазвание
-
0-143113T FUEL PUMP ASS'YFUEL PUMP ASS'Y
-
180606M DIAPHRAM, FUEL PUMPDIAPHRAM, FUEL PUMP
-
280611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
324-80610M SPRING, FUEL PUMP DIAPHRAMSPRING, FUEL PUMP DIAPHRAM
-
427-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
521-80608M CHECK VALVE, FUEL PUMPCHECK VALVE, FUEL PUMP
-
627-80612M GASKET, CHECK VALVEGASKET, CHECK VALVE
-
780609M RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-82511M SCREW, RETAINER ATTACHINGSCREW, RETAINER ATTACHING
-
911-82537M NUT, RETAINER SCREWNUT, RETAINER SCREW
-
1024-80615M SPRING, FUEL PUMP DIAPHRAMSPRING, FUEL PUMP DIAPHRAM
-
1127-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
1280907M COVER, FUEL PUMPCOVER, FUEL PUMP
-
1310-82522M SCREW, COVER ATTACHINGSCREW, COVER ATTACHING
-
1413-82186M LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
1527-80757 GASKET, FUEL TO CRANKCASEGASKET, FUEL TO CRANKCASE
-
1610-827043M BOLT, FUEL PUMP ATTACHINGBOLT, FUEL PUMP ATTACHING
-
1712-82213M WASHER, FUEL-PUMP BOLTWASHER, FUEL-PUMP BOLT
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVE TRAIN
- DRIVESHAFT HOUSING AND GEAR HOUSING
- ELECTRIC STARTER MOTOR
- ELECTRICAL
- FUEL LINE AND FILTER
- • FUEL PUMP
- FUEL TANK
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- REVERSE LOCK
- SWITCH PANEL/REMOTE CONTROL
- THROTTLE CONTROL
- WATER PUMP
