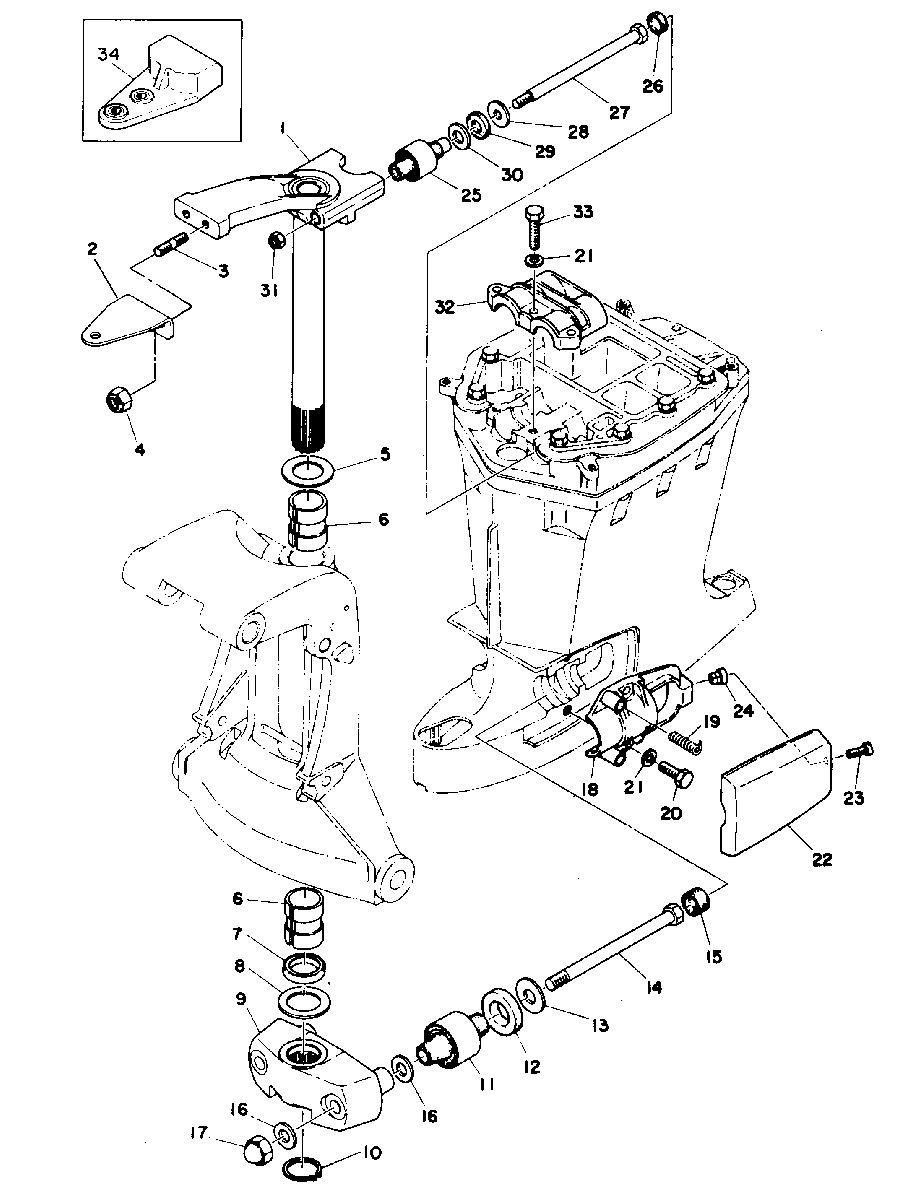

MOUNTING SYSTEM для Mariner - 55 663-02730 AND BELOW
-
№АртикулНазвание
-
119144M ARM & SHAFT (SHORT SHAFT)ARM & SHAFT (SHORT SHAFT)
-
119145T ARM & SHAFT (LONG SHAFT)ARM & SHAFT (LONG SHAFT)
-
281481M PLATE, STEERING (HOOK)PLATE, STEERING (HOOK)
-
316-81742M STUD, STEERING PLATESTUD, STEERING PLATE
-
410-81758M NUT, PLATE STUDNUT, PLATE STUD
-
512-19146M WASHER, STEERING SHAFT-UPPERWASHER, STEERING SHAFT-UPPER
-
623-81955M BUSHING, STEERING SHAFTBUSHING, STEERING SHAFT
-
726-98950M OIL SEAL, STEERING SHAFTOIL SEAL, STEERING SHAFT
-
812-81839M WASHER, STEERING SHAFT-LOWERWASHER, STEERING SHAFT-LOWER
-
981432M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
1053-82325M CIRCLIP, STEERING SHAFTCIRCLIP, STEERING SHAFT
-
1181435M HOUSING PALTEHOUSING PALTE
-
1312-83915M WASHER, LOWER MOUNT BOLTWASHER, LOWER MOUNT BOLT
-
1410-81717M BOLT, LOWER MOUNTBOLT, LOWER MOUNT
-
1581436M BUMPER, LOWER MOUNT BOLTBUMPER, LOWER MOUNT BOLT
-
1612-81811M WASHER, LOWER MOUNT BOLTWASHER, LOWER MOUNT BOLT
-
1711-82397M NUT, LOWER MOUNT BOLTNUT, LOWER MOUNT BOLT
-
1881433M RETAINER, LOWER MOUNTRETAINER, LOWER MOUNT
-
1924-82087M SPRING, COMPRESSIONSPRING, COMPRESSION
-
2010-43106M BOLT, LOWER RETAINER ATTACHINGBOLT, LOWER RETAINER ATTACHING
-
2113-82215M LOCK WASHERLOCK WASHER
-
2281434M CLOVER, LOWER MOUNTCLOVER, LOWER MOUNT
-
2310-83870M SCREW, LOWER MOUNT COVER ATTACHINGSCREW, LOWER MOUNT COVER ATTACHING
-
2411-81779M NUT, LOWER MOUNT COVER SCREWNUT, LOWER MOUNT COVER SCREW
-
2581676T HOUNSING MOUNT, UPPERHOUNSING MOUNT, UPPER
-
2681431M BUMPER, UPPER MOUNT BOLTBUMPER, UPPER MOUNT BOLT
-
2710-81714M BOLT, UPPER MOUNTBOLT, UPPER MOUNT
-
2812-81825M WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2912-81857M WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3012-81803M WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3111-81783M NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3281429M RETAINER, UPPER MOUNTRETAINER, UPPER MOUNT
-
3310-82442M BOLT, UPPER RETAINER ATTACHINGBOLT, UPPER RETAINER ATTACHING
-
3481482M PLATE, STEERING (RIDE GUIDE )PLATE, STEERING (RIDE GUIDE )
