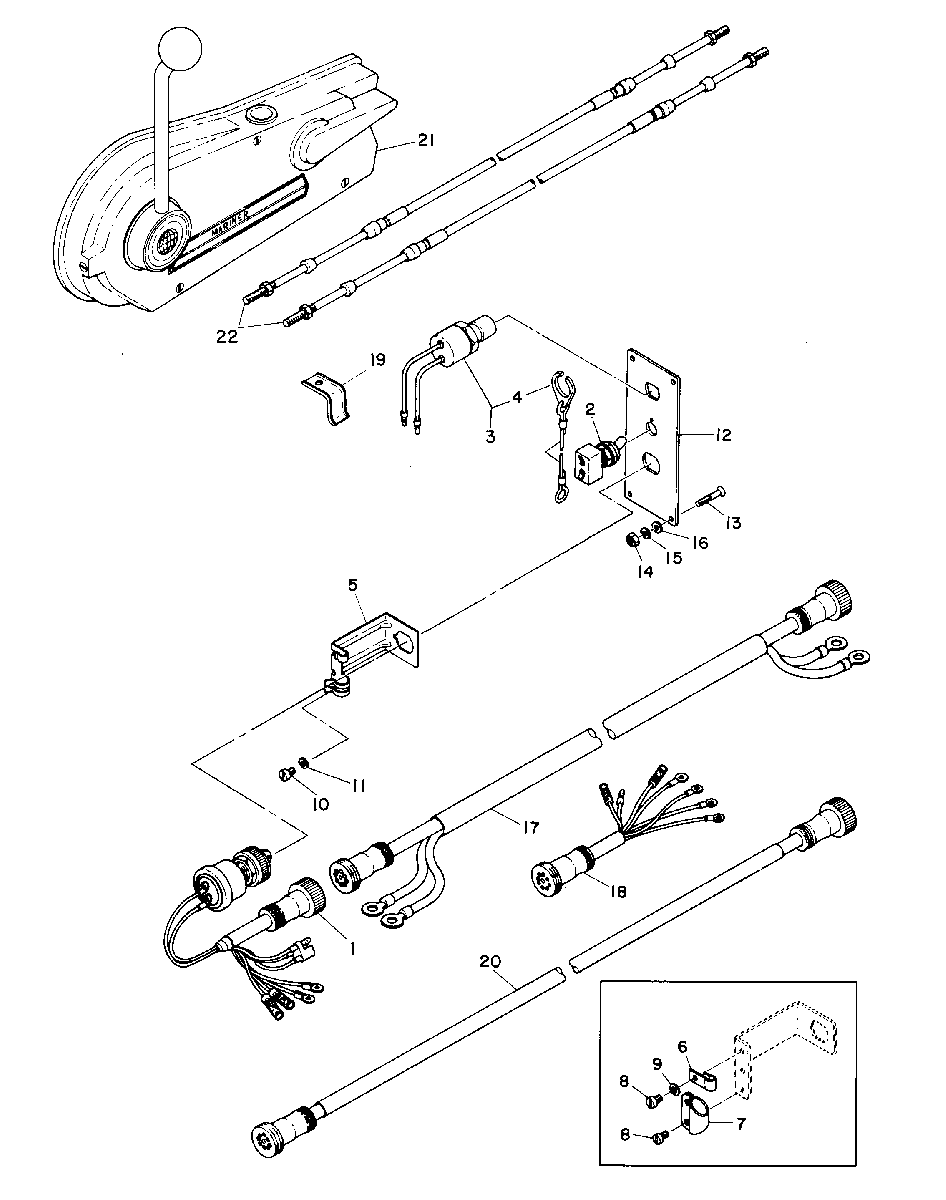

SWITCH PANEL/REMOTE CONTROL для Mariner - 55 663-02730 AND BELOW
-
№АртикулНазвание
-
0-182993M SWITCH PANEL ASS'YSWITCH PANEL ASS'Y
-
187-82994M MAIN SWITCHMAIN SWITCH
-
287-81534M SWITCH, CHOKESWITCH, CHOKE
-
387-97765M STOP SWITCH ASS'YSTOP SWITCH ASS'Y
-
497756M STOPPERSTOPPER
-
581537M STAY, CORD CLAMPSTAY, CORD CLAMP
-
654-82724M CLAMP, WIRE
SERIAL 00000000-00002100CLAMP, WIRE
SERIAL 00000000-00002100 -
754-80722M CLAMP, WIREHARNESS ( )
SERIAL 00000000-00002100CLAMP, WIREHARNESS ( )
SERIAL 00000000-00002100 -
810-82500M SCREW, CLAMP ATTACHING (E-02100 EL-33675)SCREW, CLAMP ATTACHING (E-02100 EL-33675)
-
912-82707M WASHER, CLAMP SCREWWASHER, CLAMP SCREW
-
1010-82500M SCREW (E-02101 EL-33676)SCREW (E-02101 EL-33676)
-
1113-82206M WASHER (E-02101 EL-33676)WASHER (E-02101 EL-33676)
-
1281533M SWITCH PANELSWITCH PANEL
-
1310-80665M SCREW (E-02100 EL-33675)SCREW (E-02100 EL-33675)
-
1310-80164M SCREW, PANEL ATTACHING (E-02101 EL-33676)SCREW, PANEL ATTACHING (E-02101 EL-33676)
-
1411-82377M NUT, PANEL NUTNUT, PANEL NUT
-
1513-82206M LOCK WASHER, PANEL NUTLOCK WASHER, PANEL NUT
-
1612-82847M WASHER, PANEL NUTWASHER, PANEL NUT
-
1784-82691M WIREHARNESS
SERIAL 00000000-00008005WIREHARNESS
SERIAL 00000000-00008005 -
1784-81539M WIREHARNESS
SERIAL 00002006-09999999WIREHARNESS
SERIAL 00002006-09999999 -
1884-81527M WIRE, LEADWIRE, LEAD
-
1981540M CLAMPCLAMP
-
2084-81538M WIREHARNESS EXTENSION (OPTIONAL)WIREHARNESS EXTENSION (OPTIONAL)
-
2181680M REMOTE CONTROLREMOTE CONTROL
-
2281681M6 CABLE, REMOTE CONTROL 6 FTCABLE, REMOTE CONTROL 6 FT
-
2281681M7 CABLE, REMOTE CONTROL 7FTCABLE, REMOTE CONTROL 7FT
-
2281681M8 CABLE, REMOTE CONTROL 8 FTCABLE, REMOTE CONTROL 8 FT
-
2281681M9 CABLE, REMOTE CONTROL 9FTCABLE, REMOTE CONTROL 9FT
-
2281681M11 CABLE, REMOTE CONTROL 11 FTCABLE, REMOTE CONTROL 11 FT
-
2281681M12 CABLE, REMOTE CONTROL 12 FTCABLE, REMOTE CONTROL 12 FT
-
2281681M13 CABLE, REMOTE CONTROL 13 FTCABLE, REMOTE CONTROL 13 FT
-
2281681M14 CABLE, REMOTE CONTROL 14 FTCABLE, REMOTE CONTROL 14 FT
-
2281681M15 CABLE, REMOTE CONTROL 15 FTCABLE, REMOTE CONTROL 15 FT
-
2281681M16 CABLE, REMOTE CONTROL 16 FTCABLE, REMOTE CONTROL 16 FT
-
2281681M17 CABLE, REMOTE CONTROL 17 FTCABLE, REMOTE CONTROL 17 FT
-
2281681M18 CABLE, REMOTE CONTROL 18 FTCABLE, REMOTE CONTROL 18 FT
