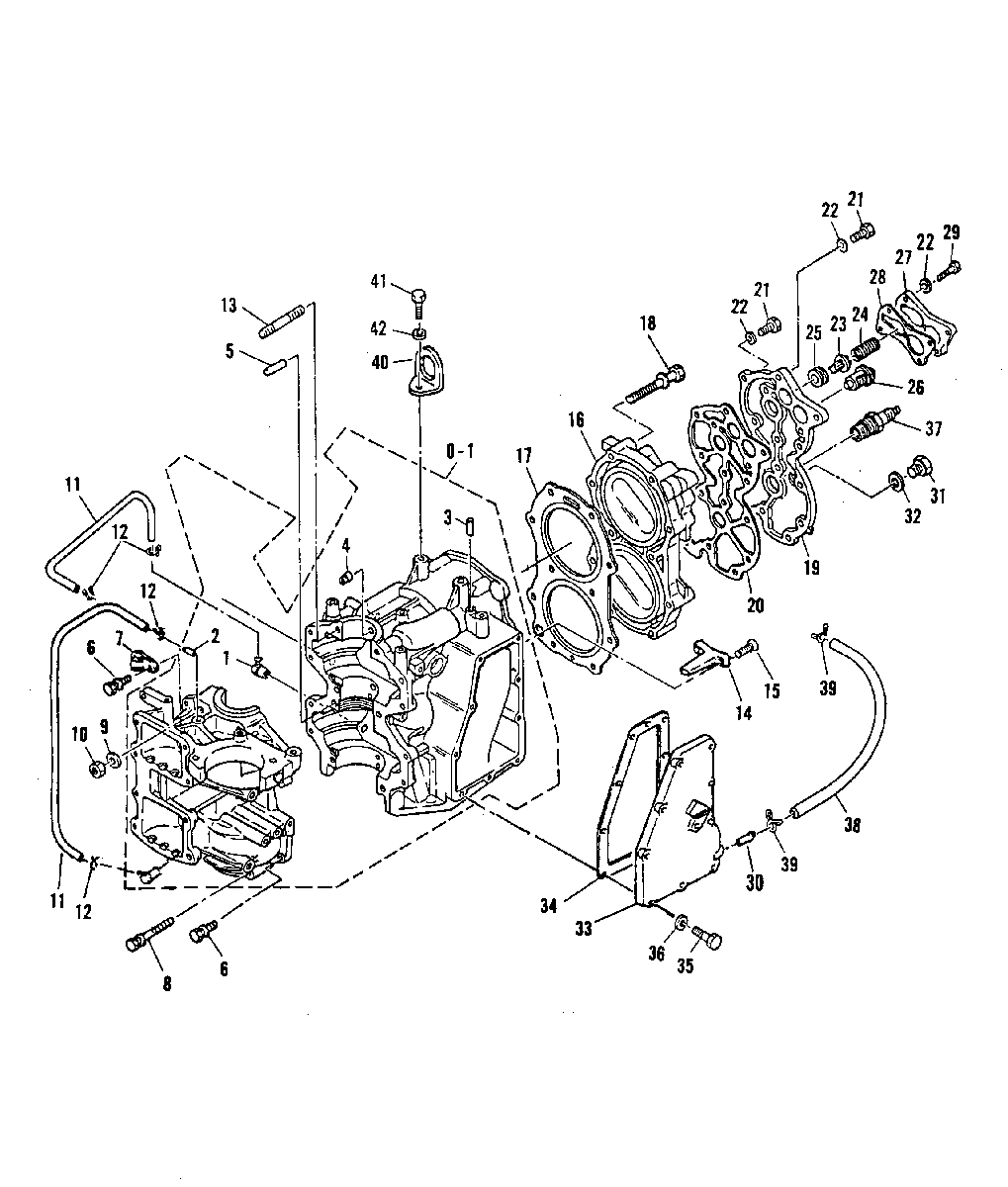

CRANKCASE AND CYLINDER HEAD для Mariner - 55 663-315379 AND UP
-
№АртикулНазвание
-
0-1870-9274M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
121-80727M CHECK VALVECHECK VALVE
-
222-80122M FITTINGFITTING
-
317-82354M DOWEL PINDOWEL PIN
-
417-81258M LOCK, BEARINGLOCK, BEARING
-
517-82368M DOWEL PINDOWEL PIN
-
610-41837M BOLTBOLT
-
754-82033M CLAMPCLAMP
-
810-41838M BOLTBOLT
-
912-81807M WASHERWASHER
-
1011-82387M NUTNUT
-
1132-811045M HOSEHOSE
-
1254-82046M CLIPCLIP
-
1316-81743M STUDSTUD
-
1481255M ANODEANODE
-
1510-82532M SCREWSCREW
-
16968-7974M CYLINDER HEADCYLINDER HEAD
-
1727-19140 GASKETGASKET
-
1810-8527761 BOLTBOLT
-
1981253M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2027-81254M GASKET, HEAD COVERGASKET, HEAD COVER
-
2110-84058M BOLTBOLT
-
2212-82214M WASHERWASHER
-
2381267M PRESSURE CONTROL VALVEPRESSURE CONTROL VALVE
-
2424-82086M SPRINGSPRING
-
2525-82067M GROMMETGROMMET
-
26814554T01 THERMOSTAT
SERIAL (E-004121 EL-316399) AND ABOVETHERMOSTAT
SERIAL (E-004121 EL-316399) AND ABOVE -
2699080M THERMOSTAT
SERIAL(E-004020 EL-316338) AND BELOWTHERMOSTAT
SERIAL(E-004020 EL-316338) AND BELOW -
2781265M COVER, THERMOSTATCOVER, THERMOSTAT
-
2827-81266M GASKETGASKET
-
2910-83285M BOLTBOLT
-
3022-94716M FITTINGFITTING
-
3122-81926M PLUGPLUG
-
3227-81990M GASKETGASKET
-
3381330M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3427-81331M GASKETGASKET
-
3510-84058M BOLTBOLT
-
3612-82214M WASHERWASHER
-
3733-8244068 SPARK PLUGSPARK PLUG
-
3832-81324M HOSEHOSE
-
3954-82047M CLIPCLIP
-
4041827M HANGER, ENGINEHANGER, ENGINE
-
4110-84342M BOLTBOLT
-
4213-82215M LOCKWASHERLOCKWASHER
-
-95667M POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC.POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC. -
-27-84168M GASKET SET, POWERHEAD
CONTENTS INDICATED BY FOOTNOTE 12.GASKET SET, POWERHEAD
CONTENTS INDICATED BY FOOTNOTE 12.
