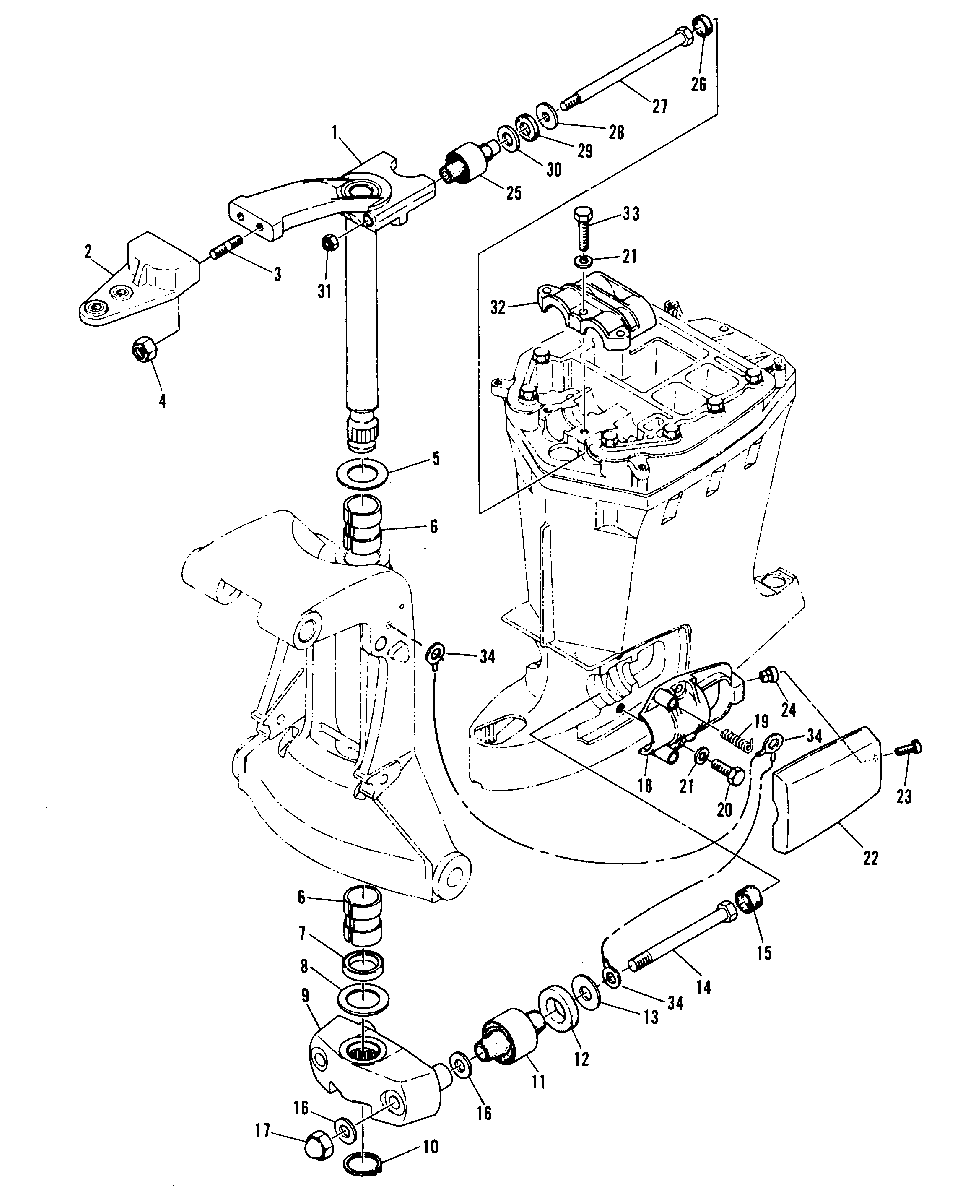

MOUNTING SYSTEM для Mariner - 55 663-315379 AND UP
-
№АртикулНазвание
-
119144M ARM & SHAFT (E)ARM & SHAFT (E)
-
119145T ARM & SHAFT (EL)ARM & SHAFT (EL)
-
281482M PLATE, STEERING (RIDE GUIDE)PLATE, STEERING (RIDE GUIDE)
-
316-81742M STUD, STEERING PLATESTUD, STEERING PLATE
-
411-81785M NUTNUT
-
512-19146M WASHERWASHER
-
623-81955M BUSHINGBUSHING
-
726-98950M OIL SEAL, STEERING SHAFTOIL SEAL, STEERING SHAFT
-
812-81839M WASHERWASHER
-
981432M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
1053-42446M SNAP RINGSNAP RING
-
1184430M LOWER MOUNTLOWER MOUNT
-
1212-84431M WASHERWASHER
-
1312-84432M WASHERWASHER
-
1410-81717M BOLTBOLT
-
1581436M BUMPERBUMPER
-
1612-84429M WASHERWASHER
-
1711-82397M NUTNUT
-
1884433M RETAINER, LOWER MOUNTRETAINER, LOWER MOUNT
-
1924-82087M SPRING, COMPRESSIONSPRING, COMPRESSION
-
2010-43106M BOLTBOLT
-
2113-82215M LOCKWASHERLOCKWASHER
-
2281434M COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2310-83870M SCREWSCREW
-
2411-81779M NUTNUT
-
2581676T UPPER MOUNTUPPER MOUNT
-
2681431M BUMPERBUMPER
-
2710-81714M BOLTBOLT
-
2812-81825M WASHERWASHER
-
2912-83702M WASHERWASHER
-
3012-81803M WASHERWASHER
-
3111-81783M NUTNUT
-
3281429M RETAINER, UPPER MOUNTRETAINER, UPPER MOUNT
-
3310-82442M BOLTBOLT
-
3441845M GROUND WIRE (E)GROUND WIRE (E)
-
3441845M GROUND WIRE (EL)GROUND WIRE (EL)
