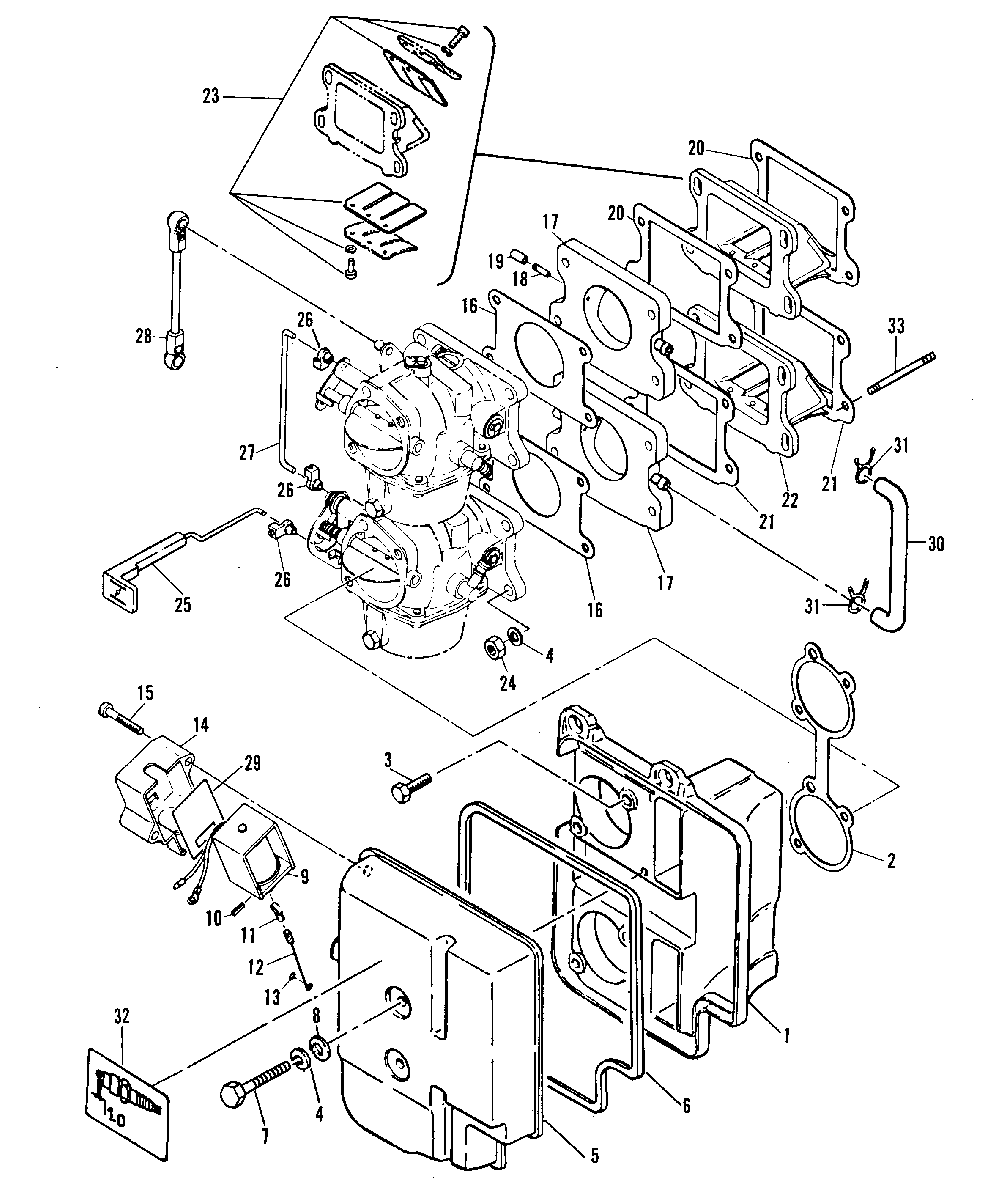

INTAKE MANIFOLD для Mariner - 55 663-315379 AND UP
-
№АртикулНазвание
-
192629M AIR INTAKE BASEAIR INTAKE BASE
-
227-81276M GASKETGASKET
-
310-82405M BOLTBOLT
-
413-82212M LOCKWASHERLOCKWASHER
-
592630M AIR INTAKE COVERAIR INTAKE COVER
-
627-92631M GASKETGASKET
-
710-84657M BOLTBOLT
-
812-82214M WASHERWASHER
-
989-84410M SOLENOIDSOLENOID
-
1017-82145M ROLL PINROLL PIN
-
1184411M HOOKHOOK
-
1284412M WIREWIRE
-
1325-82258M "O" RING"O" RING
-
1481551M COVER, SOLENOIDCOVER, SOLENOID
-
1510-82522M SCREWSCREW
-
1627-81272 GASKETGASKET
-
1792632M INTAKE MANIFOLDINTAKE MANIFOLD
-
1822-80122M PIPE, OVER FLOWPIPE, OVER FLOW
-
1980454M CAPCAP
-
2027-81269M GASKET, MANIFOLD (UPPER)GASKET, MANIFOLD (UPPER)
-
2127-81270M GASKET, MANIFOLD (LOWER)GASKET, MANIFOLD (LOWER)
-
2234-95630M REED VALVEREED VALVE
-
2334-92676M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
2411-82389M NUTNUT
-
2581337M CHOKE RODCHOKE ROD
-
2616333 CONNECTORCONNECTOR
-
27810938M ROD, CHOKE LINK
SERIAL 00004516-09999999ROD, CHOKE LINK
SERIAL 00004516-09999999 -
28810939M ROD, THROTTLE ADJUSTMENT
SERIAL 00004516-09999999ROD, THROTTLE ADJUSTMENT
SERIAL 00004516-09999999 -
27810938M ROD, CHOKE LINK AND BELOW
SERIAL 00000000-00004515ROD, CHOKE LINK AND BELOW
SERIAL 00000000-00004515 -
28810939M ROD, THROTTLE ADJUSTMENT
SERIAL 00000000-00004515ROD, THROTTLE ADJUSTMENT
SERIAL 00000000-00004515 -
2981554M DAMPERDAMPER
-
3032-84415M HOSEHOSE
-
3154-82047M CLAMPCLAMP
-
3237-84416M DECAL
SERIAL 00000000-00004423DECAL
SERIAL 00000000-00004423 -
3316-81735M STUDSTUD
-
--27-84168M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12.POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 12. -
--84419M CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11.CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11. -
--19141M CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11.CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11.
