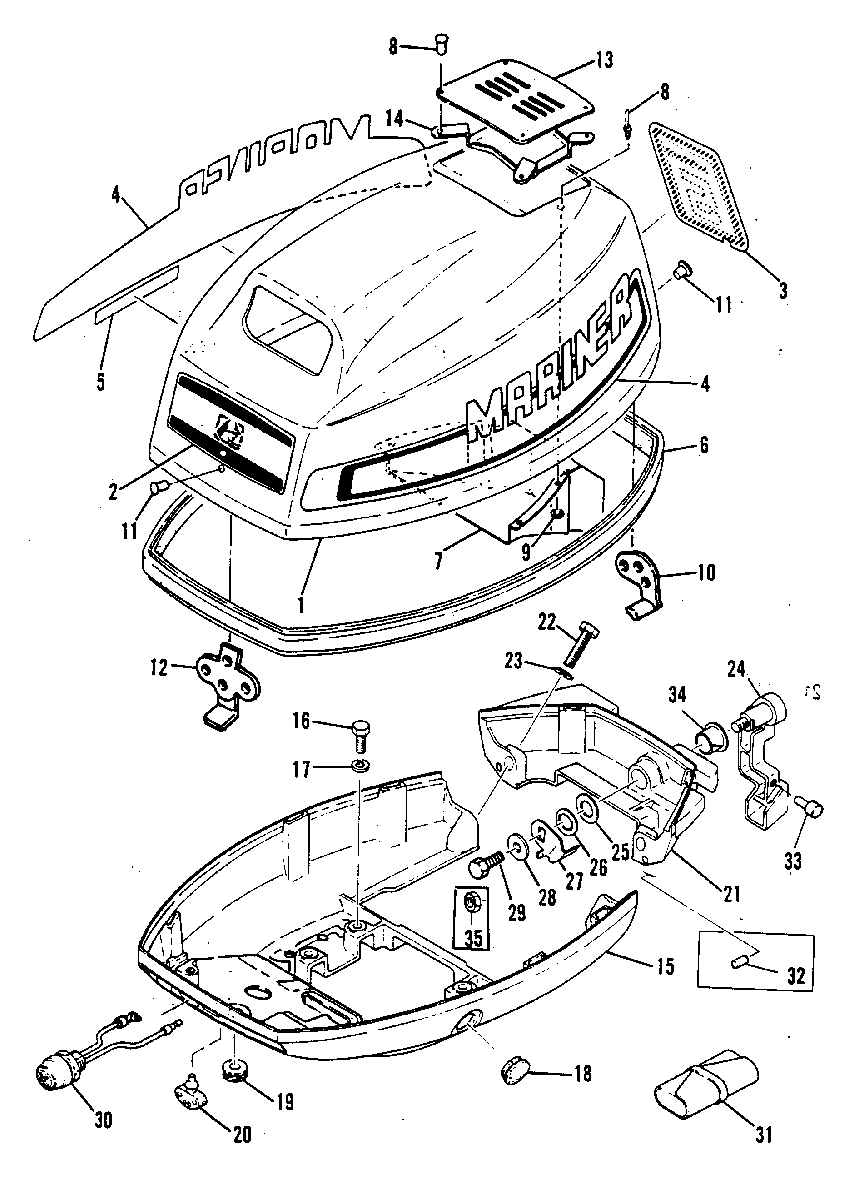

COWLING для Mariner - 5A 661-46595 AND BELOW
-
№АртикулНазвание
-
1NLA TOP COWLTOP COWL
-
237-82906M FRONT DECALFRONT DECAL
-
337-82907M REAR DECALREAR DECAL
-
437-83060M SIDE SET DECALSSIDE SET DECALS
-
537-81202M DECAL (F-N-R)DECAL (F-N-R)
-
681196M SEALSEAL
-
7NLA AIR DUCTAIR DUCT
-
817-81906M RIVETRIVET
-
9NLA WASHERWASHER
-
1094782M HOLDERHOLDER
-
1117-81905M RIVETRIVET
-
12NLA HOOKHOOK
-
13NLA MOULDINGMOULDING
-
1482966M AIR SHROUDAIR SHROUD
-
152168-6809M FRONT BOTTOM COWL
SERIAL 00018546-09999999FRONT BOTTOM COWL
SERIAL 00018546-09999999 -
15NLA FRONT BOTTOM COWL
SERIAL 00000000-00018545FRONT BOTTOM COWL
SERIAL 00000000-00018545 -
1610-82423M BOLTBOLT
-
1713-82212M LOCKWASHERLOCKWASHER
-
1882068M GROMMETGROMMET
-
1925-82062M GROMMETGROMMET
-
2080033M HOLDERHOLDER
-
212168-6810M REAR BOTTOM COWLREAR BOTTOM COWL
-
2210-82441M BOLTBOLT
-
2313-82215M LOCKWASHERLOCKWASHER
-
2482550M LEVERLEVER
-
2512-81817M WASHERWASHER
-
2613-81871M WAVE WASHERWAVE WASHER
-
2781201M CLAMPCLAMP
-
2812-81794M WASHERWASHER
-
2910-91772M BOLT
SERIAL 00030091-09999999BOLT
SERIAL 00030091-09999999 -
3087-81205M STOP SWITCHSTOP SWITCH
-
3191-803581 TOOL KITTOOL KIT
-
3217-82364M DOWEL PIN
SERIAL 00000000-00018545DOWEL PIN
SERIAL 00000000-00018545 -
3382056M GROMMET
SERIAL 00000000-00030090GROMMET
SERIAL 00000000-00030090 -
3423-81951M BUSHING
SERIAL 00000000-00030090BUSHING
SERIAL 00000000-00030090 -
3511-82390M NUT
SERIAL 00000000-00030090NUT
SERIAL 00000000-00030090
