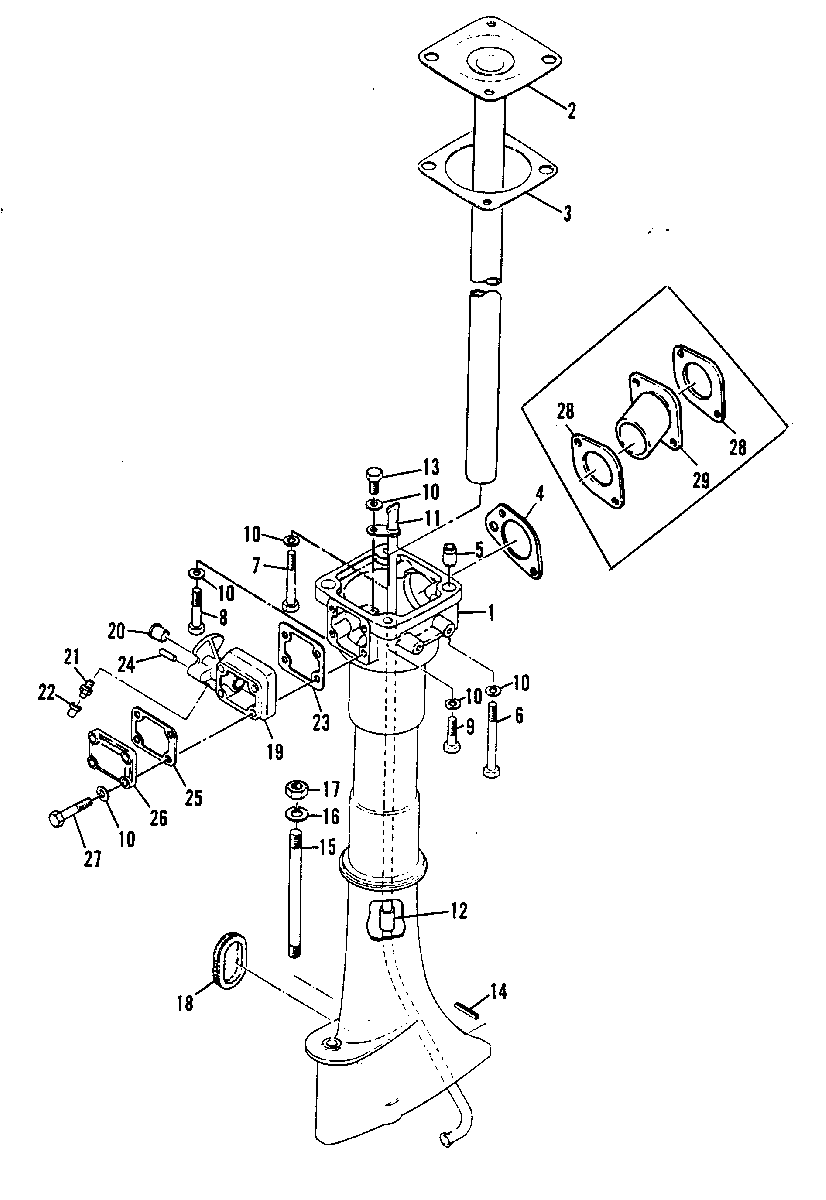

DRIVESHAFT HOUSING для Mariner - 5A 661-46595 AND BELOW
-
№АртикулНазвание
-
11587-6917M DRIVESHAFT HOUSING (SHORT)DRIVESHAFT HOUSING (SHORT)
-
11587-6918M DRIVESHAFT HOUSING (LONG)DRIVESHAFT HOUSING (LONG)
-
232-80995M TUBE (SHORT)TUBE (SHORT)
-
232-80996M TUBE (LONG)TUBE (LONG)
-
327-80166M GASKETGASKET
-
427-82942M GASKET
SERIAL 00030291-09999999GASKET
SERIAL 00030291-09999999 -
517-14229M DOWEL PINDOWEL PIN
-
610-82460M BOLTBOLT
-
710-8527765 BOLTBOLT
-
810-83285M BOLTBOLT
-
910-82405M BOLTBOLT
-
1013-82212M LOCKWASHERLOCKWASHER
-
1132-80992M WATER TUBE (SHORT)WATER TUBE (SHORT)
-
1132-80993M WATER TUBE (LONG)WATER TUBE (LONG)
-
1223-82021M RUBBERRUBBER
-
1310-84368M BOLTBOLT
-
1417-82153M ROLL PINROLL PIN
-
1516-81739M STUDSTUD
-
1613-82215M LOCKWASHERLOCKWASHER
-
1711-82382M NUTNUT
-
1880997M COVERCOVER
-
1980999M SHIFT CASINGSHIFT CASING
-
2023-81948M BUSHING
SERIAL 00017623-09999999BUSHING
SERIAL 00017623-09999999 -
2122-82369M GREASE FITTING
SERIAL 00017623-09999999GREASE FITTING
SERIAL 00017623-09999999 -
2281439M CAP
SERIAL 00017623-09999999CAP
SERIAL 00017623-09999999 -
2327-81000M GASKETGASKET
-
2417-82361M DOWEL PINDOWEL PIN
-
2527-80297M GASKETGASKET
-
2684369M COVER
SERIAL 00044726-09999999COVER
SERIAL 00044726-09999999 -
2680298M COVER
SERIAL 00000000-00044725COVER
SERIAL 00000000-00044725 -
2710-83285M BOLTBOLT
-
2827-80309M GASKET
SERIAL 00000000-00030290GASKET
SERIAL 00000000-00030290 -
2980310M GUIDEGUIDE
