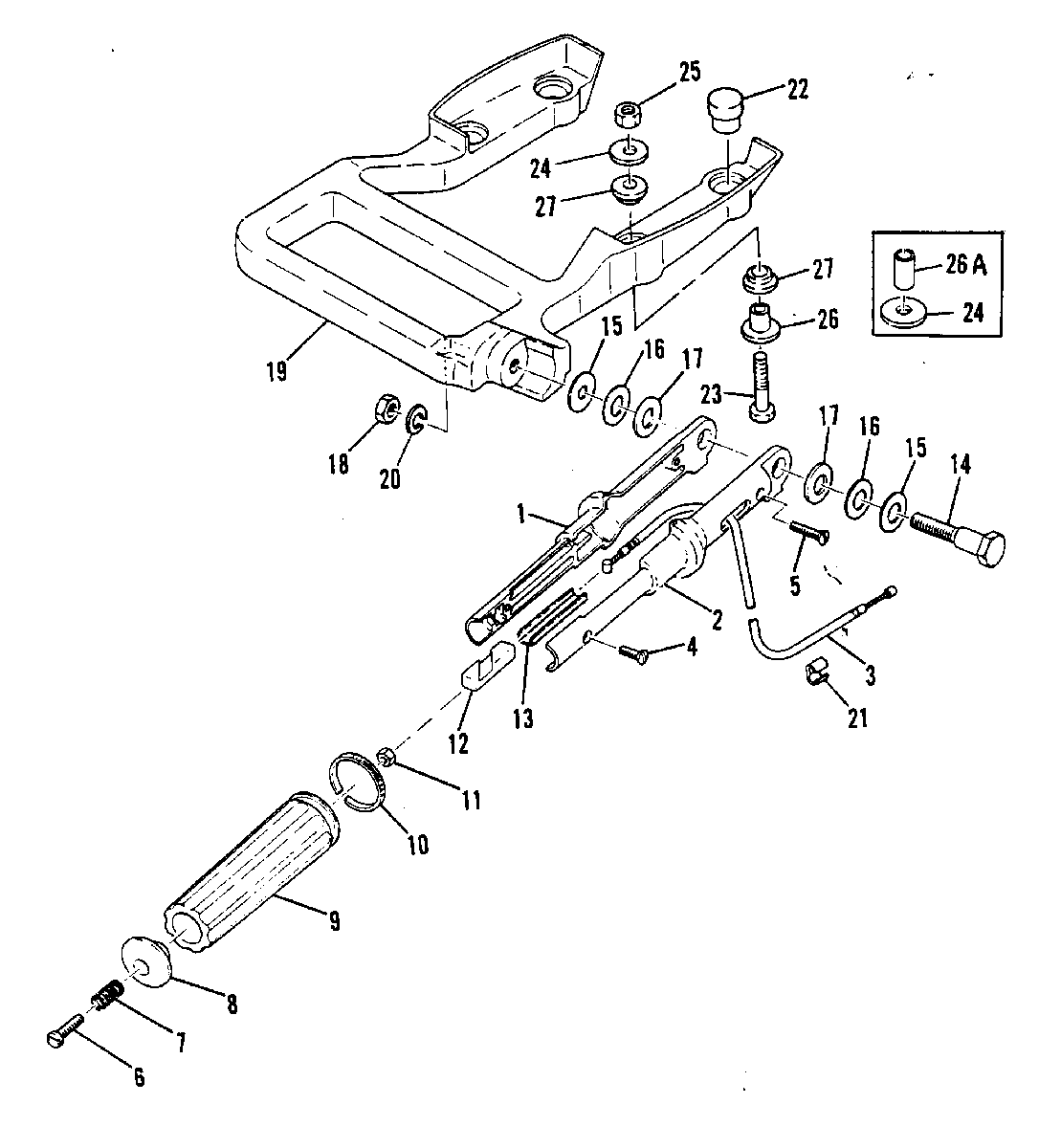

STEERING HANDLE для Mariner - 5A 661-46595 AND BELOW
-
№АртикулНазвание
-
184408M STEERING ARM
SERIAL 00032166-09999999STEERING ARM
SERIAL 00032166-09999999 -
284371M STEERING ARM
SERIAL 00032166-09999999STEERING ARM
SERIAL 00032166-09999999 -
180311M STEERING ARM
SERIAL 00000000-00032165STEERING ARM
SERIAL 00000000-00032165 -
280312M STEERING ARM
SERIAL 00000000-00032165STEERING ARM
SERIAL 00000000-00032165 -
380974M THROTTLE CABLETHROTTLE CABLE
-
410-82532M SCREWSCREW
-
510-82528M SCREWSCREW
-
610-84438M SCREWSCREW
-
724-82075M SPRINGSPRING
-
880155M CAPCAP
-
980152M GRIPGRIP
-
1037-80156M INDICATORINDICATOR
-
1111-82388M NUTNUT
-
1280153M GUIDEGUIDE
-
1323-80157M BUSHINGBUSHING
-
1410-84372M BOLTBOLT
-
1512-81810M WASHERWASHER
-
1612-81849M WASHERWASHER
-
1712-81850M WASHERWASHER
-
1811-82383M NUTNUT
-
1981194M STEERING BRACKETSTEERING BRACKET
-
2013-82215M LOCKWASHERLOCKWASHER
-
2154-82052M CLIPCLIP
-
2225-82955M GROMMET
SERIAL 00030091-09999999GROMMET
SERIAL 00030091-09999999 -
2310-97749M BOLT
SERIAL 00030091-09999999BOLT
SERIAL 00030091-09999999 -
2412-81801M WASHER
SERIAL 00030091-09999999WASHER
SERIAL 00030091-09999999 -
2511-82383M NUT
SERIAL 00030091-09999999NUT
SERIAL 00030091-09999999 -
2682956M COLLAR
SERIAL 00030091-09999999COLLAR
SERIAL 00030091-09999999 -
2725-80515M RUBBER
SERIAL 00030091-09999999RUBBER
SERIAL 00030091-09999999 -
2310-97749M BOLT
SERIAL 00000000-00030090BOLT
SERIAL 00000000-00030090 -
2412-81801M WASHER
SERIAL 00000000-00030090WASHER
SERIAL 00000000-00030090 -
2511-82383M NUT
SERIAL 00000000-00030090NUT
SERIAL 00000000-00030090 -
26A23-81991M COLLAR
SERIAL 00000000-00030090COLLAR
SERIAL 00000000-00030090 -
2725-80515M GROMMET
SERIAL 00000000-00030090GROMMET
SERIAL 00000000-00030090
