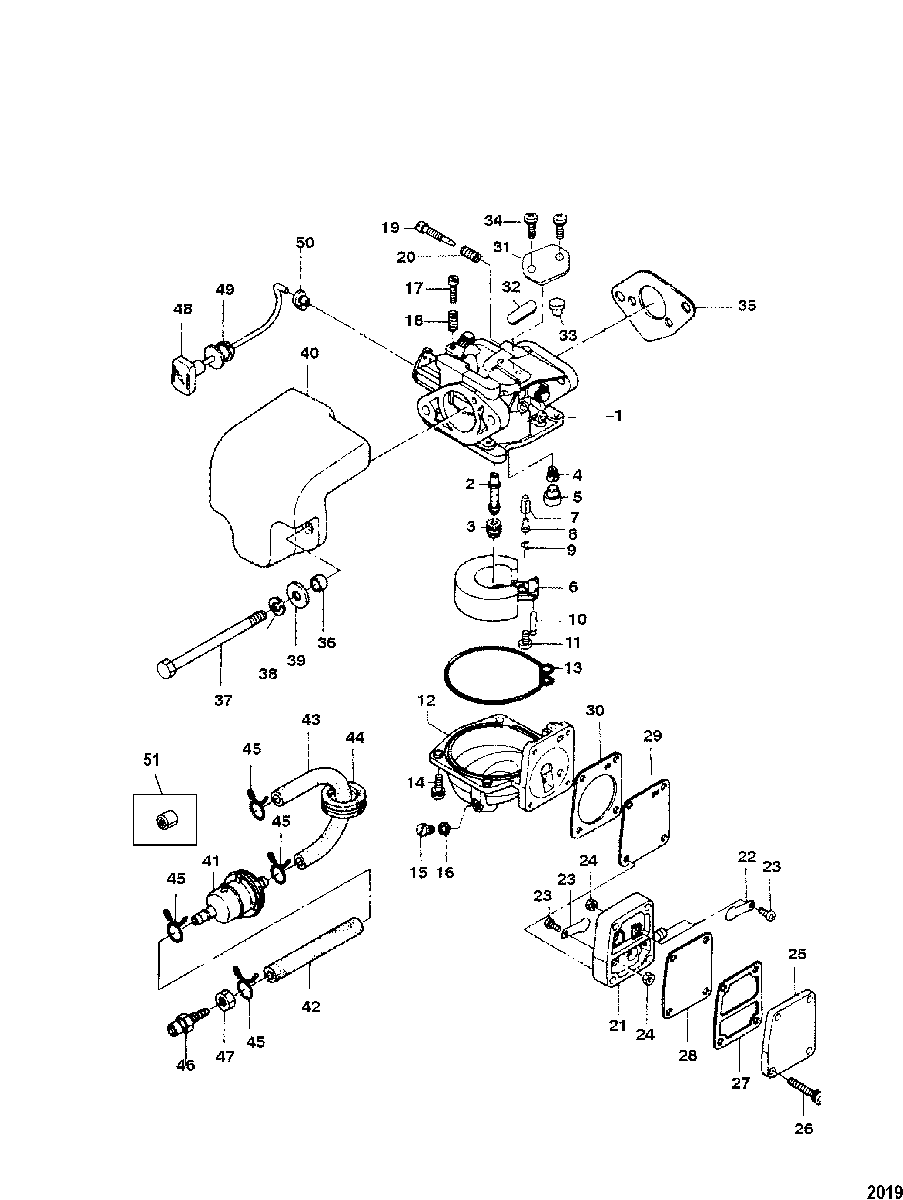

Carburetor для Mariner - 6 (2 CYL.)(2-STROKE)(International) 0N027903 THRU 0N055109
-
№АртикулНазвание
-
13303-803687T04 CARBURETOR
(6)CARBURETOR
(6) -
13303-803687T03 CARBURETOR
(8)CARBURETOR
(8) -
2803692003 MAIN NOZZLE
(6)MAIN NOZZLE
(6) -
28036922 MAIN NOZZLE
(8)MAIN NOZZLE
(8) -
3803688003 JET, Main (#80) (#80)
(6)JET, Main (#80) (#80)
(6) -
38036882 JET, Main (#98) (#98)
(8)JET, Main (#98) (#98)
(8) -
48036892 JET, Pilot (#48)JET, Pilot (#48)
-
516252 CAPCAP
-
616253 FLOATFLOAT
-
7898101063 FLOAT VALVEFLOAT VALVE
-
8853721 PIN, ValvePIN, Valve
-
954-16255 CLIPCLIP
-
1017-16256 PINPIN
-
1110-162571 SCREWSCREW
-
12803691T01 FLOAT BOWLFLOAT BOWL
-
1325-16259 O-RINGO-RING
-
1410-162601 SCREWSCREW
-
1510-16261 SCREW, DrainSCREW, Drain
-
1627-16262 GASKETGASKET
-
1710-16263 SCREWSCREW
-
1824-16264 SPRINGSPRING
-
1910-8129351 SCREW, Pilot AdjustSCREW, Pilot Adjust
-
2024-16266 SPRINGSPRING
-
2116268 BODY, PumpBODY, Pump
-
2221-16269 CHECK VALVECHECK VALVE
-
2310-8518131 SCREWSCREW
-
2411-8518141 NUTNUT
-
2516272 COVER, PumpCOVER, Pump
-
2610-162606 SCREWSCREW
-
2727-16274 GASKETGASKET
-
2816275 DIAPHRAGMDIAPHRAGM
-
2916325 DIAPHRAGMDIAPHRAGM
-
3027-16326 GASKETGASKET
-
31855540 COVER, CarburetorCOVER, Carburetor
-
3227-855541 GASKETGASKET
-
3327-8555411 GASKETGASKET
-
3410-855542 SCREWSCREW
-
3527-16327 GASKETGASKET
-
3623-8537151 SPACERSPACER
-
3710-855809003 BOLT, (M6 x 85)BOLT, (M6 x 85)
-
3813-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3912-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
408036971 SILENCER, AirSILENCER, Air
-
4135-16248 FILTER, FuelFILTER, Fuel
-
4232-804889130 TUBINGTUBING
-
4332-804889130 TUBINGTUBING
-
4425-162262 GROMMETGROMMET
-
4554-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
4622-853736 CONNECTOR, FuelCONNECTOR, Fuel
-
4711-17480 NUTNUT
-
488036951 ROD, ChokeROD, Choke
-
4925-16332 GROMMETGROMMET
-
5016333 ROD, SnapROD, Snap
-
5121-42657A3 CHECK VALVECHECK VALVE
-
-803826A2 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-883274A02 GASKET SET, PowerheadGASKET SET, Powerhead
