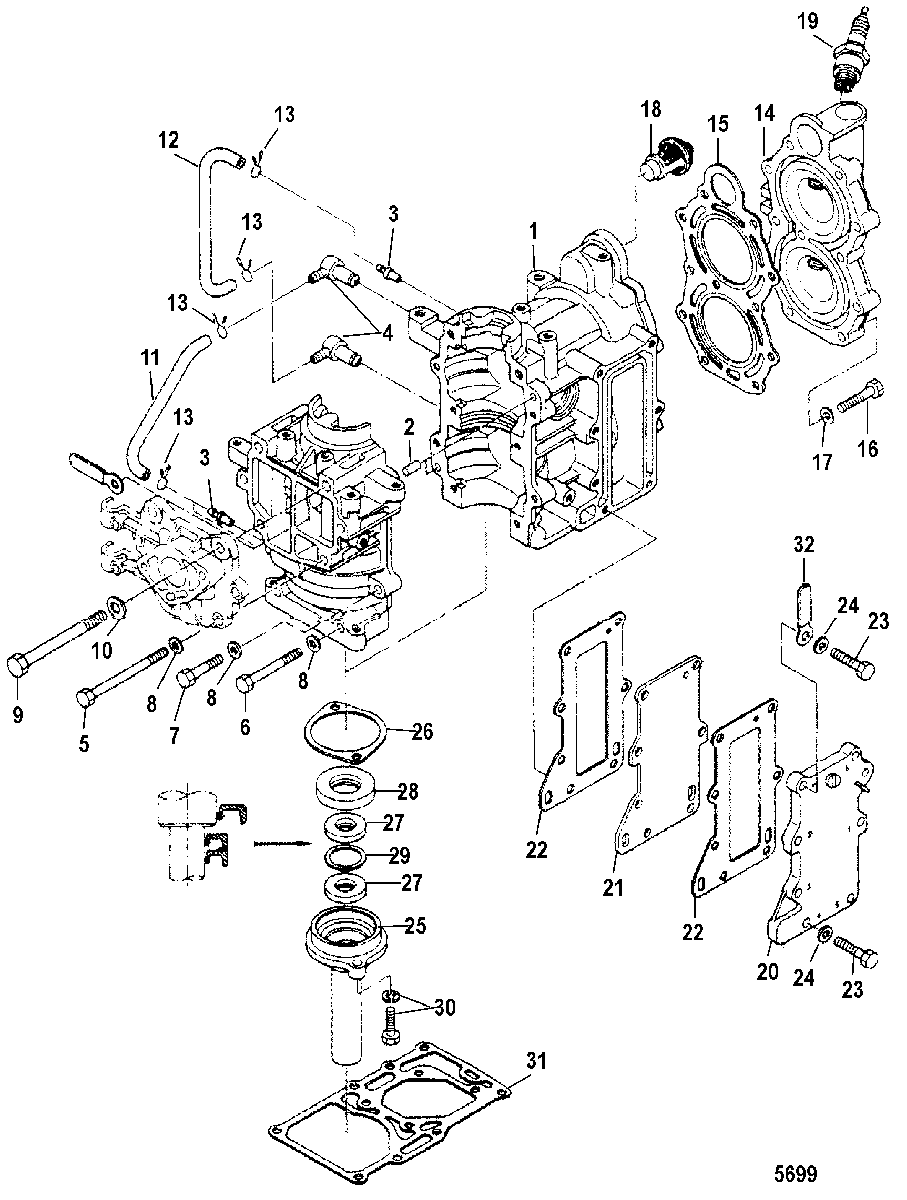

Cylinder Block для Mariner - 6 (2 CYL.)(2-STROKE)(International) 0N027903 THRU 0N055109
-
№АртикулНазвание
-
1878-803660T04 CYLINDER BLOCKCYLINDER BLOCK
-
217-16119 PIN, DowelPIN, Dowel
-
322-8129601 NIPPLENIPPLE
-
422-812960A01 BLEED VALVEBLEED VALVE
-
510-166983 BOLTBOLT
-
610-166984 BOLTBOLT
-
710-166985 BOLTBOLT
-
812-809931044 WASHERWASHER
-
910-8150687 BOLTBOLT
-
1012-4002217 WASHERWASHER
-
1132-8M0057112 LUBRICATION PIPE, (230 mm)LUBRICATION PIPE, (230 mm)
-
1232-8M0057112 LUBRICATION PIPE, (230 mm)LUBRICATION PIPE, (230 mm)
-
1354-95224 CLIPCLIP
-
14979-803662T02 CYLINDER HEADCYLINDER HEAD
-
1527-803663021 GASKETGASKET
-
1610-166985 BOLTBOLT
-
1712-809931044 WASHERWASHER
-
18803665 THERMOSTATTHERMOSTAT
-
1933-8M0114744 SPARK PLUG, (NGK#BP7HS-10)SPARK PLUG, (NGK#BP7HS-10)
-
1933-17719547 SPARK PLUG, (NGK#BPR7HS-10)SPARK PLUG, (NGK#BPR7HS-10)
-
208036662 COVER, Exhaust, OuterCOVER, Exhaust, Outer
-
218036664 COVER, Exhaust, InnerCOVER, Exhaust, Inner
-
2227-803663027 GASKETGASKET
-
2310-8150683 BOLTBOLT
-
2412-809931044 WASHERWASHER
-
251100-853713T02 HEAD, Crank CaseHEAD, Crank Case
-
2627-803663033 GASKETGASKET
-
2726-85370712 SEAL, OilSEAL, Oil
-
2826-85370710 SEAL, OilSEAL, Oil
-
2923-8537155 SPACERSPACER
-
3010-167051 BOLTBOLT
-
3127-803663023 GASKETGASKET
-
3254-813275 CLAMPCLAMP
-
-27-883274A02 GASKET SET, PowerheadGASKET SET, Powerhead
-
-803679A3 SHORT BLOCK ASSEMBLYSHORT BLOCK ASSEMBLY
