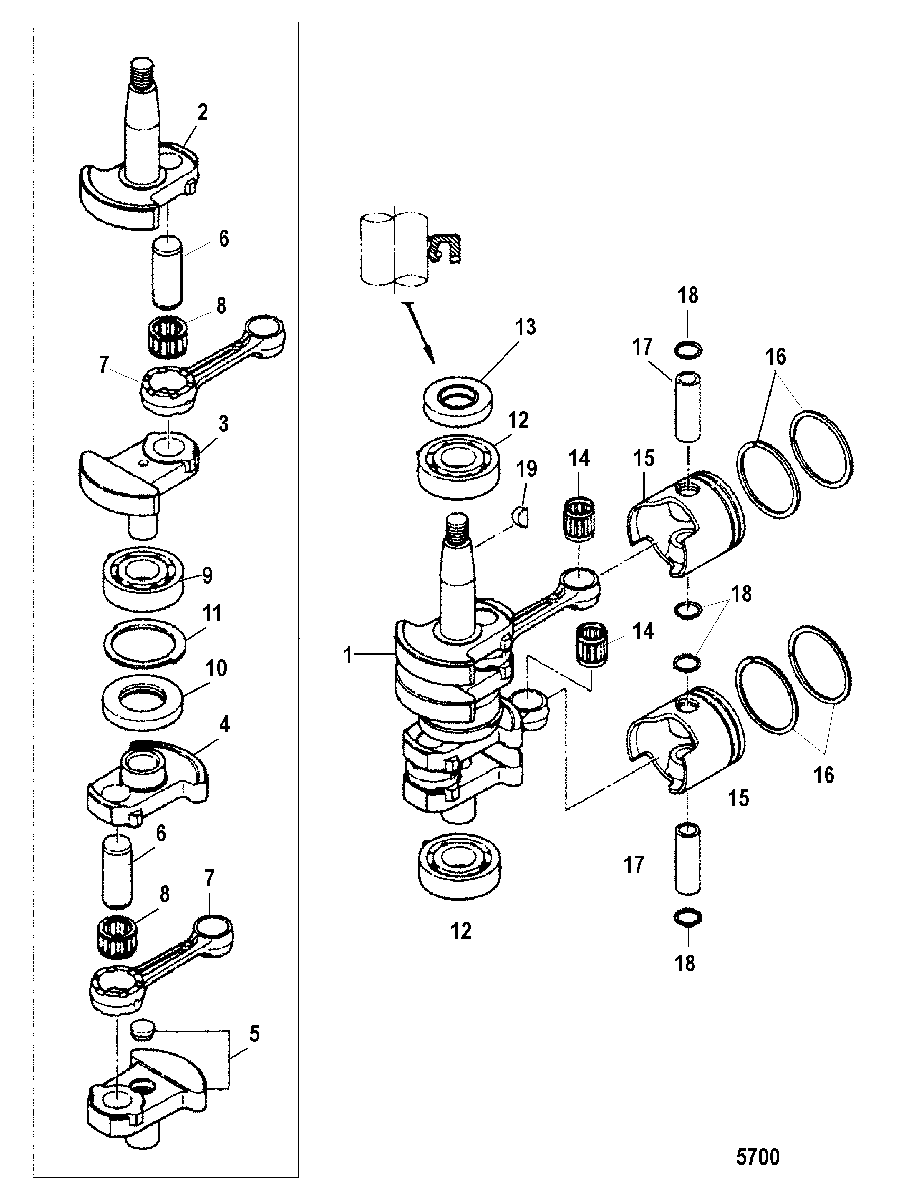

Crankshaft, Pistons and Connecting Rods для Mariner - 6 (2 CYL.)(2-STROKE)(International) 0N027903 THRU 0N055109
-
№АртикулНазвание
-
1474-8M0047721 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2474-804885T01 CRANKSHAFTCRANKSHAFT
-
3474-804885T02 CRANKSHAFTCRANKSHAFT
-
4474-804885T03 CRANKSHAFTCRANKSHAFT
-
5474-804885T04 CRANKSHAFTCRANKSHAFT
-
68036731 PIN, CrankPIN, Crank
-
7629-803674T01 CONNECTING RODCONNECTING ROD
-
831-8036751 BEARING, NeedleBEARING, Needle
-
930-16049 BEARING, BallBEARING, Ball
-
1026-85370711 SEAL, OilSEAL, Oil
-
118537122 THRUST PLATETHRUST PLATE
-
1230-16049 BEARING, BallBEARING, Ball
-
1326-898101285 SEAL, OilSEAL, Oil
-
1431-8036752 BEARING, NeedleBEARING, Needle
-
15779-804886T PISTON
(Standard)PISTON
(Standard) -
15700-8M0103786 PISTON
(0.5 Oversize)PISTON
(0.5 Oversize) -
1639-8M0080355 RING, Piston
(Standard), services whole engineRING, Piston
(Standard), services whole engine -
1639-803678A4 RING, Piston
(0.5 Oversize), services whole engineRING, Piston
(0.5 Oversize), services whole engine -
1639-8M0080355 RING, Piston
(Standard), services one pistonRING, Piston
(Standard), services one piston -
1639-8M0080354 RING, Piston
(0.5 Oversize), services one pistonRING, Piston
(0.5 Oversize), services one piston -
1741-8036801 PIN, PistonPIN, Piston
-
1853-16057 CLIPCLIP
-
1928-16053 KEYKEY
-
-27-883274A02 GASKET SET, PowerheadGASKET SET, Powerhead
-
-803679A3 SHORT BLOCK ASSEMBLYSHORT BLOCK ASSEMBLY
