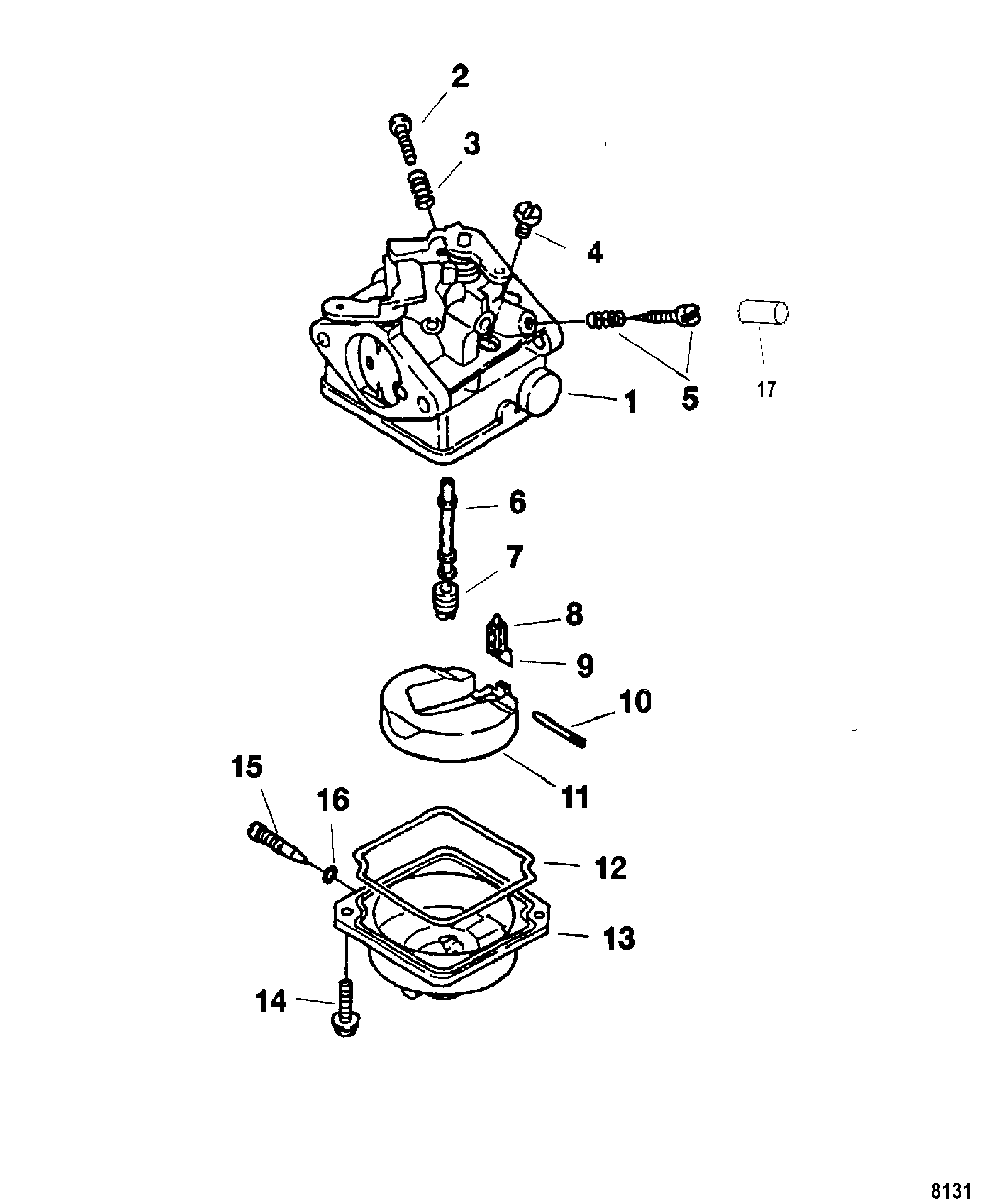

Carburetor для Mariner - 6 (4-STROKE) 0P073456 THRU 0P400999
-
№АртикулНазвание
-
13303-803819T1 CARBURETOR
(4 HP) SN# 0R017219 & BelowCARBURETOR
(4 HP) SN# 0R017219 & Below -
13303-803819T2 CARBURETOR
(4 HP) SN# 0R017220 & UpCARBURETOR
(4 HP) SN# 0R017220 & Up -
13303-879817A1 CARBURETOR
(4 HP)(MPE)CARBURETOR
(4 HP)(MPE) -
13303-879658A1 CARBURETOR
(4 HP-Bodensee) SN# 0R017220 & UpCARBURETOR
(4 HP-Bodensee) SN# 0R017220 & Up -
13303-803522T1 CARBURETOR
(5 HP) SN# 0R017219 & BelowCARBURETOR
(5 HP) SN# 0R017219 & Below -
13303-803522T2 CARBURETOR
(5 HP) SN# 0R017220 & UpCARBURETOR
(5 HP) SN# 0R017220 & Up -
13303-879818A1 CARBURETOR
(5HP)(MPE)CARBURETOR
(5HP)(MPE) -
13303-879659A1 CARBURETOR
(5 HP-Bodensee) SN# 0R017220 & UpCARBURETOR
(5 HP-Bodensee) SN# 0R017220 & Up -
13301-804766T2 CARBURETOR
(6 HP) SN# 0R017219 & BelowCARBURETOR
(6 HP) SN# 0R017219 & Below -
13301-804766T2 CARBURETOR
(6 HP) SN# 0R017220 & UpCARBURETOR
(6 HP) SN# 0R017220 & Up -
13303-879819A1 CARBURETOR
(6HP)(MPE)CARBURETOR
(6HP)(MPE) -
13303-879660A1 CARBURETOR
(6 HP-Bodensee) SN# 0R017220 & UpCARBURETOR
(6 HP-Bodensee) SN# 0R017220 & Up -
210-8035095 SCREWSCREW
-
324-803554 SPRINGSPRING
-
48035241 PILOT JET
(4 HP)(#40) SN# 0R017219 & BelowPILOT JET
(4 HP)(#40) SN# 0R017219 & Below -
4803524 PILOT JET
(5 HP)(#42) SN# 0R017219 & BelowPILOT JET
(5 HP)(#42) SN# 0R017219 & Below -
48035243 JET, Pilot (#38)
(4/5 HP)(#38) SN# 0R017220 & UpJET, Pilot (#38)
(4/5 HP)(#38) SN# 0R017220 & Up -
48035242 PILOT JET
(6 HP)(#45)PILOT JET
(6 HP)(#45) -
48035241 PILOT JET
(6 HP)(#40)(Bodensee)PILOT JET
(6 HP)(#40)(Bodensee) -
510-8035094 SCREW ASSEMBLY, Pilot
(USA)SCREW ASSEMBLY, Pilot
(USA) -
510-8035098 SCREW ASSEMBLY, Pilot
(MPE)SCREW ASSEMBLY, Pilot
(MPE) -
510-8035099 SCREW ASSEMBLY, Pilot
(Bodensee)SCREW ASSEMBLY, Pilot
(Bodensee) -
68126507 MAIN NOZZLE
(4 HP) SN# 0R017219 & BelowMAIN NOZZLE
(4 HP) SN# 0R017219 & Below -
68126509 MAIN NOZZLE
(5 HP) SN# 0R017219 & BelowMAIN NOZZLE
(5 HP) SN# 0R017219 & Below -
68126507 MAIN NOZZLE
(4 HP) SN# 0R017220 & UpMAIN NOZZLE
(4 HP) SN# 0R017220 & Up -
681265011 MAIN NOZZLE
(4 HP-Bodensee)MAIN NOZZLE
(4 HP-Bodensee) -
68126509 MAIN NOZZLE
(5 HP) SN# 0R017220 & UpMAIN NOZZLE
(5 HP) SN# 0R017220 & Up -
681265011 MAIN NOZZLE
(5 HP-Bodensee)MAIN NOZZLE
(5 HP-Bodensee) -
68126506 MAIN NOZZLE
(6 HP)MAIN NOZZLE
(6 HP) -
63303-879660A1 MAIN NOZZLE
(6 HP-Bodensee)MAIN NOZZLE
(6 HP-Bodensee) -
7162502 JET, Main (#70)
(4/5 HP) SN# 0R017219 & BelowJET, Main (#70)
(4/5 HP) SN# 0R017219 & Below -
7162505 JET, Main (#60)
(4 HP) SN# 0R017220 & UpJET, Main (#60)
(4 HP) SN# 0R017220 & Up -
7162508 JET, Main (#65)
(5 HP) SN# 0R017220 & UpJET, Main (#65)
(5 HP) SN# 0R017220 & Up -
7162509 JET, Main (#62)
(5 HP - Bodensee)JET, Main (#62)
(5 HP - Bodensee) -
7162506 JET, Main (#75)
(6 HP)JET, Main (#75)
(6 HP) -
7162507 JET, Main (#68)
(6 HP - Bodensee)JET, Main (#68)
(6 HP - Bodensee) -
8162543 FLOAT VALVE, BrassFLOAT VALVE, Brass
-
954-803525 CLIP, Stainless SteelCLIP, Stainless Steel
-
1017-162562 PIN, Float - Stainless SteelPIN, Float - Stainless Steel
-
11162533 FLOATFLOAT
-
1227-8035084 GASKET, RubberGASKET, Rubber
-
1316258T5 FLOAT BOWLFLOAT BOWL
-
1410-16260 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
1510-8035093 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
1625-8035131 O-RING, RubberO-RING, Rubber
-
1719-881837 PLUG
(6.5MM)PLUG
(6.5MM) -
1719-881836 PLUG
(7.5MM)(MPE)(Use where Applicable)PLUG
(7.5MM)(MPE)(Use where Applicable) -
-27-8M0114820 GASKET SET, Powerhead
SN# 0R057258 & BelowGASKET SET, Powerhead
SN# 0R057258 & Below -
-27-803508A05 GASKET SET, Powerhead
SN# 0R057259 & UpGASKET SET, Powerhead
SN# 0R057259 & Up
