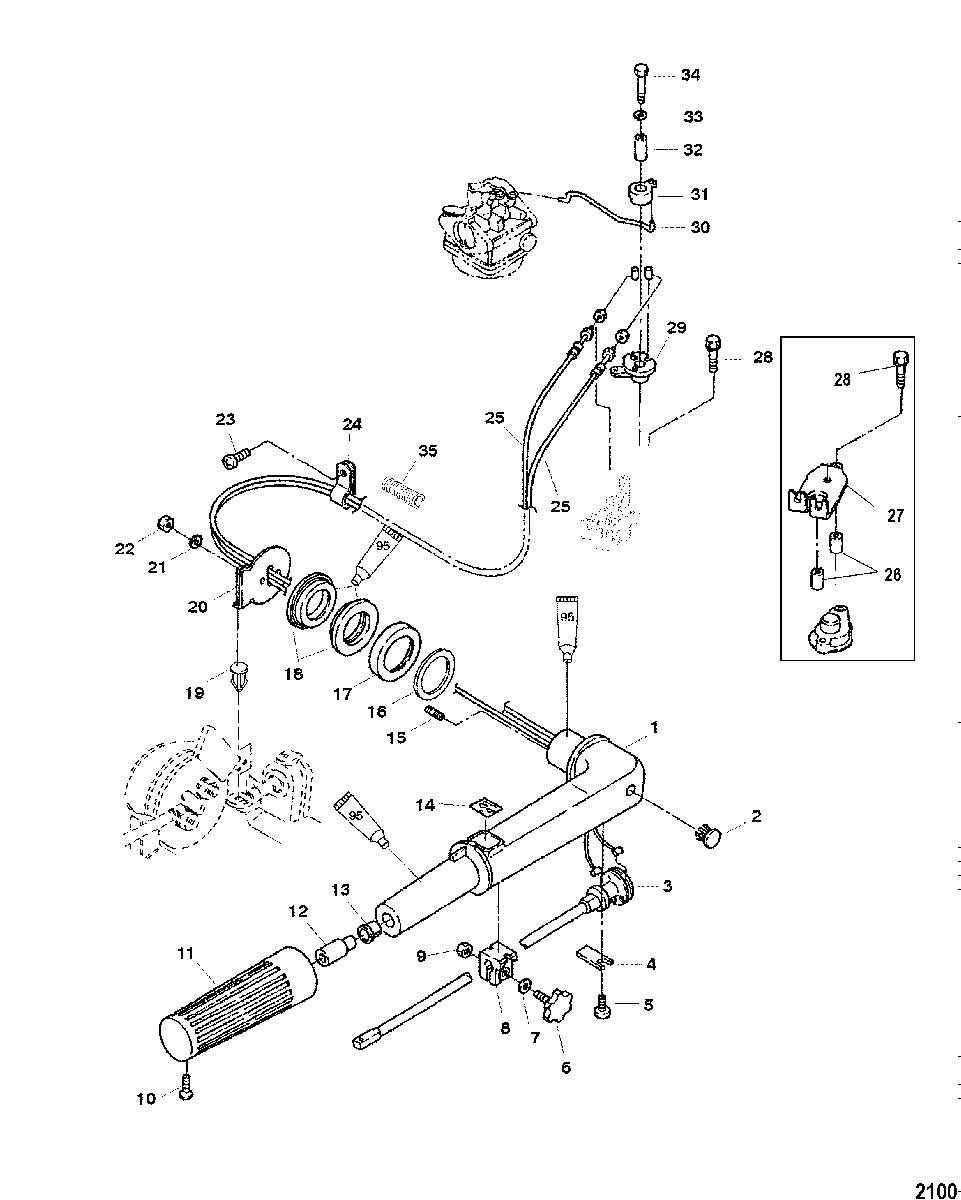

Steering Handle для Mariner - 6 (4-STROKE) 0P073456 THRU 0P400999
-
№АртикулНазвание
-
-8M0106934 HANDLE KIT, SteeringHANDLE KIT, Steering
-
1803565T HANDLE, SteeringHANDLE, Steering
-
217-16085 PINPIN
-
316093 SHAFT, ThrottleSHAFT, Throttle
-
416338 BRACKETBRACKET
-
510-16827 SCREWSCREW
-
610-16087 SCREW, AdjustingSCREW, Adjusting
-
712-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
8813026 FRICTION PIECEFRICTION PIECE
-
911-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1010-16094 SCREWSCREW
-
1116086 GRIPGRIP
-
12803569 SHAFT, RubberSHAFT, Rubber
-
1323-8035671 BUSHINGBUSHING
-
1437-8M0097201 DECALDECAL
-
1516-815028 STUD BOLTSTUD BOLT
-
1612-804508 WASHERWASHER
-
1723-803566 SPACERSPACER
-
1823-803567 BUSHINGBUSHING
-
1917-16085 PINPIN
-
208035681 STOPPERSTOPPER
-
2113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2310-16827 SCREW
(Use where Applicable)SCREW
(Use where Applicable) -
2454-953951 CLAMP
(Use where Applicable)CLAMP
(Use where Applicable) -
2584-803570 WIRE, Throttle
SN# 0R036271 & BelowWIRE, Throttle
SN# 0R036271 & Below -
2584-803570001 WIRE, Throttle
SN# 0R036272 & UpWIRE, Throttle
SN# 0R036272 & Up -
2623-8035731 COLLAR
(Use where Applicable)COLLAR
(Use where Applicable) -
27803575 BRACKET
(Use where Applicable)BRACKET
(Use where Applicable) -
2810-82304235 BOLT, (M6 x 45)
(M6 x 45)BOLT, (M6 x 45)
(M6 x 45) -
2810-82304221 BOLT
(M6 X 40)BOLT
(M6 X 40) -
29803571 DRUM, ThrottleDRUM, Throttle
-
30803574 ROD, ThrottleROD, Throttle
-
31803572 OPENER, ThrottleOPENER, Throttle
-
3223-803573 COLLARCOLLAR
-
3312-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
3410-82304220 BOLT, (M6 x 35)BOLT, (M6 x 35)
-
35853740018 PROTECTIVE SLEEVEPROTECTIVE SLEEVE
