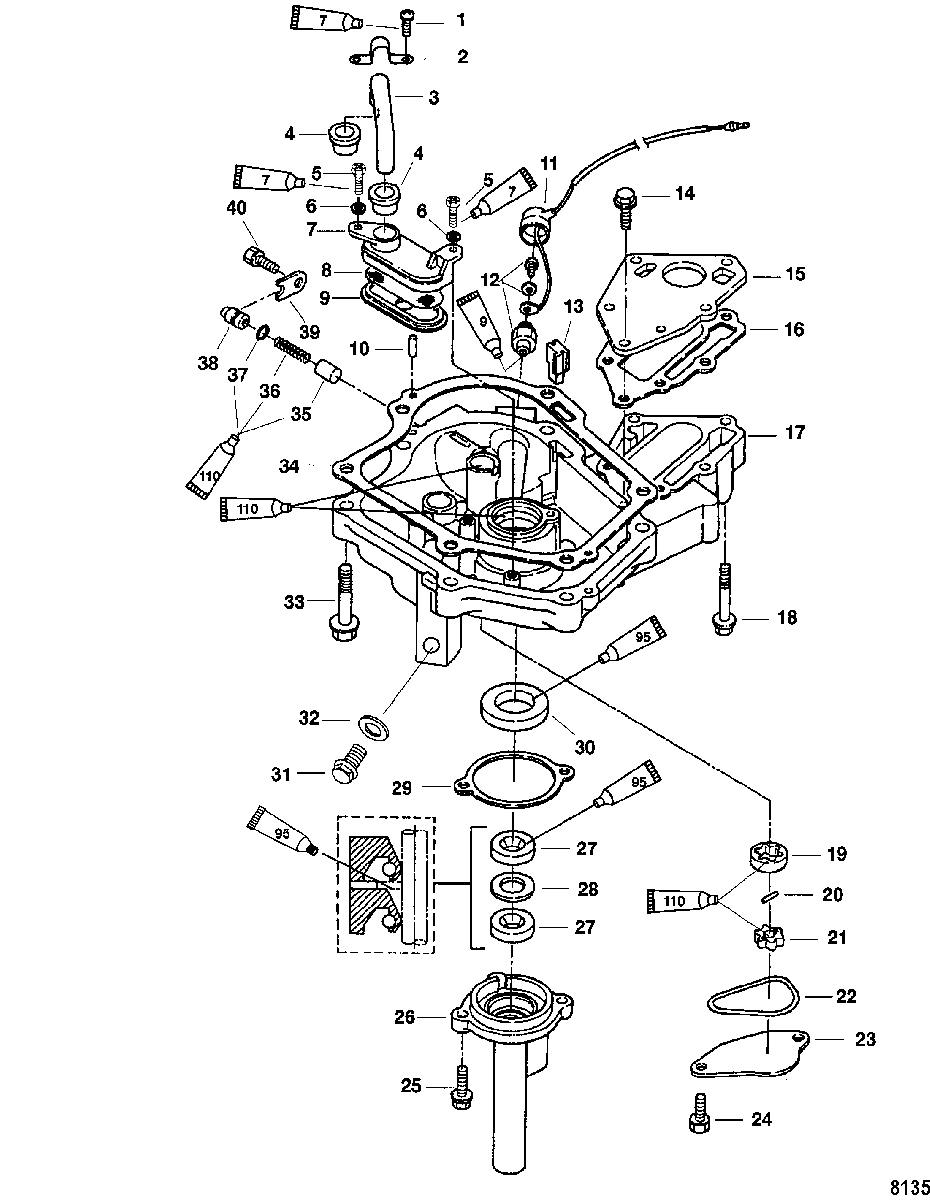

Oil Pan для Mariner - 6 (4-STROKE) 0P073456 THRU 0P400999
-
№АртикулНазвание
-
110-82303110 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
254-803543 STOPPERSTOPPER
-
332-952237 TUBINGTUBING
-
426-8035202 SEALSEAL
-
510-855558 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
612-160721 WASHERWASHER
-
7803540 HOUSING, StrainerHOUSING, Strainer
-
8803542 STRAINERSTRAINER
-
9803541 CUPCUP
-
1017-16119 PIN, DowelPIN, Dowel
-
1184-803539 LEAD WIRELEAD WIRE
-
1287-803538 SWITCHSWITCH
-
1325-8035135 GROMMETGROMMET
-
1410-810755007 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
15803532001 PLATE, ExhaustPLATE, Exhaust
-
1627-803508015 GASKETGASKET
-
17803531T PAN, Oil
SN# 0R057258 & BelowPAN, Oil
SN# 0R057258 & Below -
17803531T PAN, Oil
SN# 0R057259 & UpPAN, Oil
SN# 0R057259 & Up -
1810-168306 BOLT, (M6 x 40)BOLT, (M6 x 40)
-
198035331 ROTOR, OuterROTOR, Outer
-
2017-162563 PINPIN
-
21803533 ROTOR, InnerROTOR, Inner
-
2225-8035134 O-RING
SN# 0R057258 & BelowO-RING
SN# 0R057258 & Below -
2225-803513010 O-RING
SN# 0R057259 & UpO-RING
SN# 0R057259 & Up -
23803534 COVERCOVER
-
2410-168287 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
2510-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
268150162 HOUSINGHOUSING
-
2726-8M0101649 SEAL, OilSEAL, Oil
-
2823-815018 SPACERSPACER
-
2927-16704 GASKETGASKET
-
3026-8M0101648 SEAL, OilSEAL, Oil
-
3110-803509021 BOLTBOLT
-
3212-8035161 WASHERWASHER
-
3310-8150685 BOLT, (M8 x 40)BOLT, (M8 x 40)
-
3427-803508014 GASKETGASKET
-
35803535 CONTROL PLUNGERCONTROL PLUNGER
-
3624-8035541 SPRINGSPRING
-
3725-168231 O-RINGO-RING
-
38803536 SEATSEAT
-
39803537 COVERCOVER
-
4010-168287 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
-27-8M0114820 GASKET SET, Powerhead
SN# 0R057258 & BelowGASKET SET, Powerhead
SN# 0R057258 & Below -
-27-803508A05 GASKET SET, Powerhead
SN# 0R057259 & UpGASKET SET, Powerhead
SN# 0R057259 & Up
