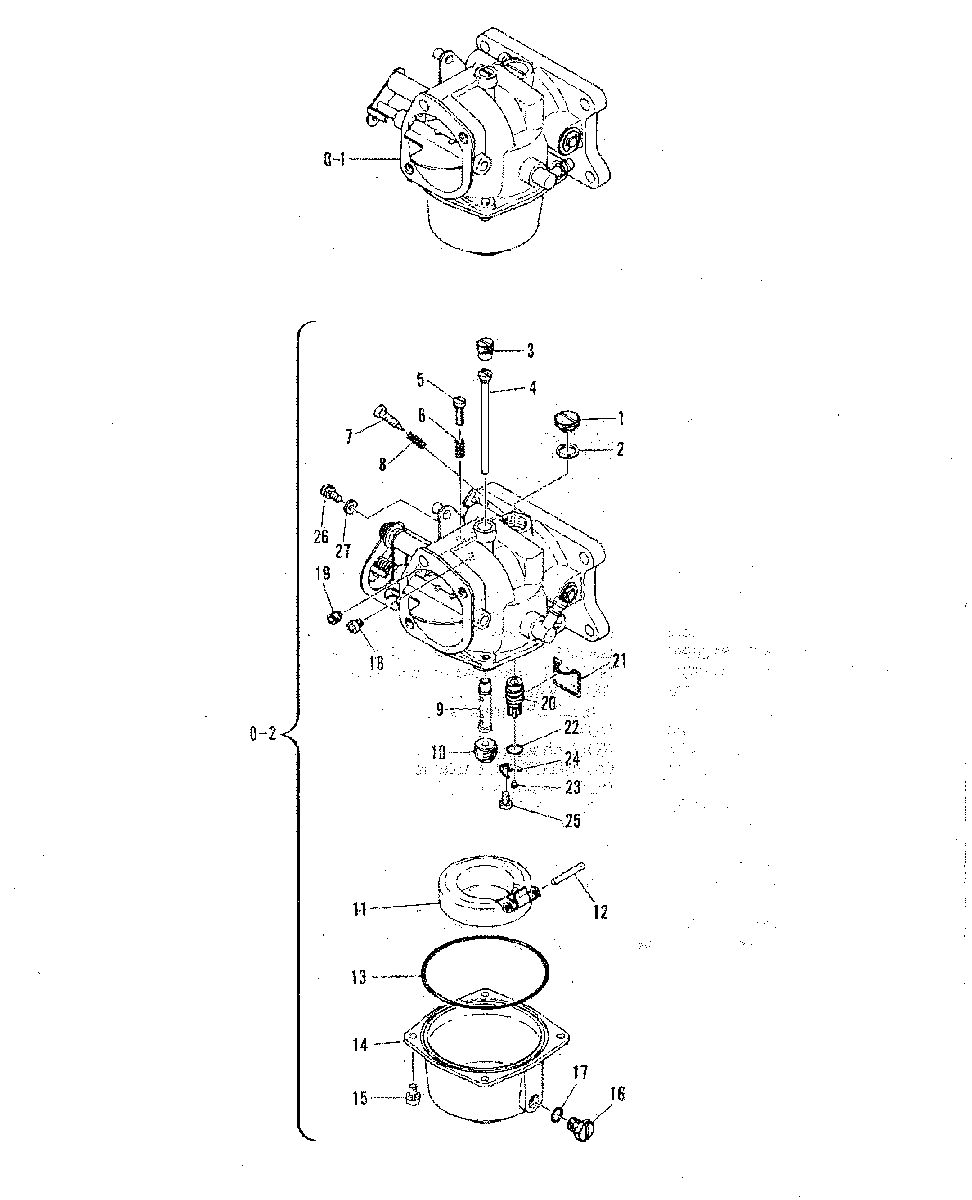

CARBURETOR для Mariner - 60 (2 CYL.) 675-001171 AND UP
-
№АртикулНазвание
-
0-11383-7965M CARBURETOR ASS'Y (UPPER E)CARBURETOR ASS'Y (UPPER E)
-
0-11383-7967M CARBURETOR ( UPPER EL)CARBURETOR ( UPPER EL)
-
0-21383-7966M CARBURETOR ASS'Y (LOWER E)CARBURETOR ASS'Y (LOWER E)
-
0-21383-7968M CARBURETOR ASS'Y (LOWER EL)CARBURETOR ASS'Y (LOWER EL)
-
110-81292M SCREW, PLUGSCREW, PLUG
-
212-92636M WASHERWASHER
-
310-97080M SCREW, PLUG
SERIAL 00001541-09999999SCREW, PLUG
SERIAL 00001541-09999999 -
310-81279M SCREW, PLUG
SERIAL 00000000-00001540SCREW, PLUG
SERIAL 00000000-00001540 -
497081M JET, PIOLET (#82)
SERIAL 00001540-09999999JET, PIOLET (#82)
SERIAL 00001540-09999999 -
41587-8441M JET, PIOLET (#80)
SERIAL 00000000-00001540JET, PIOLET (#80)
SERIAL 00000000-00001540 -
510-81277M SCREW, THROTTLE (LOWER)SCREW, THROTTLE (LOWER)
-
624-82080M SPRING,COMPRESSION (LOWER)SPRING,COMPRESSION (LOWER)
-
710-81281M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
824-82073M SPRING, COMPRESSIONSPRING, COMPRESSION
-
981287M NOZZLE, MAINNOZZLE, MAIN
-
1092637M JET, MAIN (#165) (E)JET, MAIN (#165) (E)
-
1092638M JET, MAIN (#160) (EL)JET, MAIN (#160) (EL)
-
1197848M FLOATFLOAT
-
1217-81278M PIN, FLOATPIN, FLOAT
-
1325-82288M O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
1481290M FLOAT, BOWLFLOAT, BOWL
-
1510-81758M SCREW W/WASHERSCREW W/WASHER
-
1610-81293M SCREWSCREW
-
1725-81695M O-RINGO-RING
-
1881288M PILOT, AIR JEY (#100)PILOT, AIR JEY (#100)
-
1997094M JET(#180)(E)
SERIAL 00001541-09999999JET(#180)(E)
SERIAL 00001541-09999999 -
1992640M JET (#150)(E)
SERIAL 0A000000-0E001540JET (#150)(E)
SERIAL 0A000000-0E001540 -
1981286M JET (#160) (EL)JET (#160) (EL)
-
2082780M VALVE SEATVALVE SEAT
-
2154-8M0120624 CLIPCLIP
-
2225-82261M O-RINGO-RING
-
2317-92639M PIN, VALVE
SERIAL 0EL30681-0Z999999PIN, VALVE
SERIAL 0EL30681-0Z999999 -
2317-92639M PIN, VALVE
SERIAL 00000000-00001540PIN, VALVE
SERIAL 00000000-00001540 -
2480026M PLATEPLATE
-
2510-82499M SCREWSCREW
-
2610-97082M SCREW W/WASHER (UPPER)
SERIAL 00001541-09999999SCREW W/WASHER (UPPER)
SERIAL 00001541-09999999 -
2610-83371M SCREW W/WASHER (UPPER)
SERIAL 00000000-00001540SCREW W/WASHER (UPPER)
SERIAL 00000000-00001540 -
2712-83372M WASHER ( UPPER)WASHER ( UPPER)
-
2784419M REPAIR KIT, CARBURETOR (FITS ALL 4 CARBS)
REPLACEMENT PARTSREPAIR KIT, CARBURETOR (FITS ALL 4 CARBS)
REPLACEMENT PARTS
