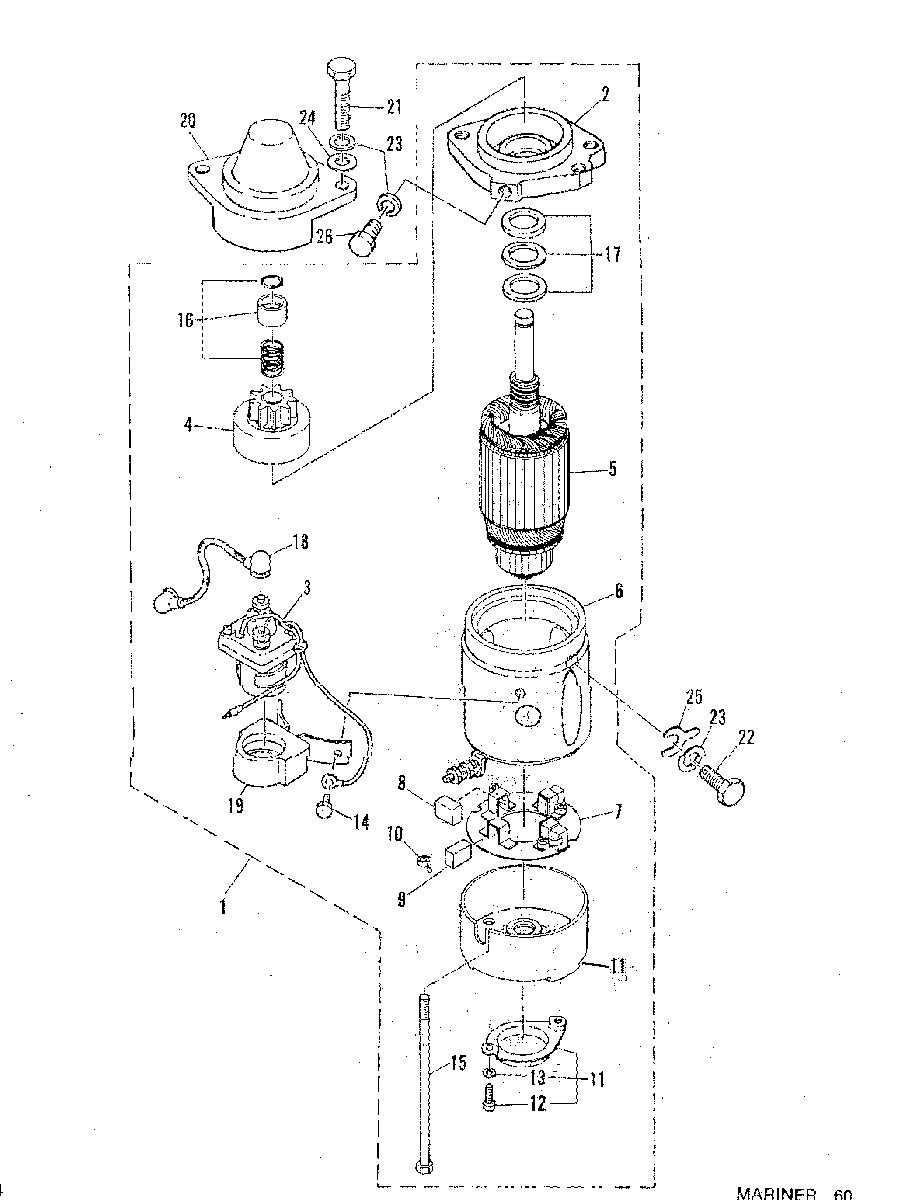

ELECTRIC STARTER MOTOR для Mariner - 60 (2 CYL.) 675-001171 AND UP
-
№АртикулНазвание
-
150-97072T ELECTRIC MOTOR ASS'Y
SERIAL 00001541-09999999ELECTRIC MOTOR ASS'Y
SERIAL 00001541-09999999 -
150-97072T ELECTRIC MOTOR ASS'Y
SERIAL 00000000-00001540ELECTRIC MOTOR ASS'Y
SERIAL 00000000-00001540 -
283654M FRONT BRACKETFRONT BRACKET
-
389-96357T SWITCH, SOLENOID
SERIAL 00001541-09999999SWITCH, SOLENOID
SERIAL 00001541-09999999 -
389-96357T SWITCH, SOLENOID
SERIAL 00000000-00001540SWITCH, SOLENOID
SERIAL 00000000-00001540 -
481504T GEARGEAR
-
583651M ARMATUREARMATURE
-
681493M STATORSTATOR
-
781507M BRUSH HOLDERBRUSH HOLDER
-
894475M BRUSH (+)BRUSH (+)
-
994478M BRUSH (-)BRUSH (-)
-
1024-81496M SPRING, BRUSHSPRING, BRUSH
-
1181499M REAR COVER ASS'YREAR COVER ASS'Y
-
1210-82515M SCREWSCREW
-
1313-82206M WASHER, LOCKWASHER, LOCK
-
1410-84088M BOLTBOLT
-
1510-81500M BOLTBOLT
-
1692671M RING, STOPRING, STOP
-
1712-83652M WASHER KITWASHER KIT
-
1892672M WIRE, LEADWIRE, LEAD
-
1984934M MOUNT
SERIAL 00001541-09999999MOUNT
SERIAL 00001541-09999999 -
2081508M COVERCOVER
-
2110-84236M BOLTBOLT
-
2210-84342M BOLTBOLT
-
2313-82215M WASHERWASHER
-
2412-82217M WASHERWASHER
-
2581485M WASHERWASHER
-
2610-82437M BOLTBOLT
