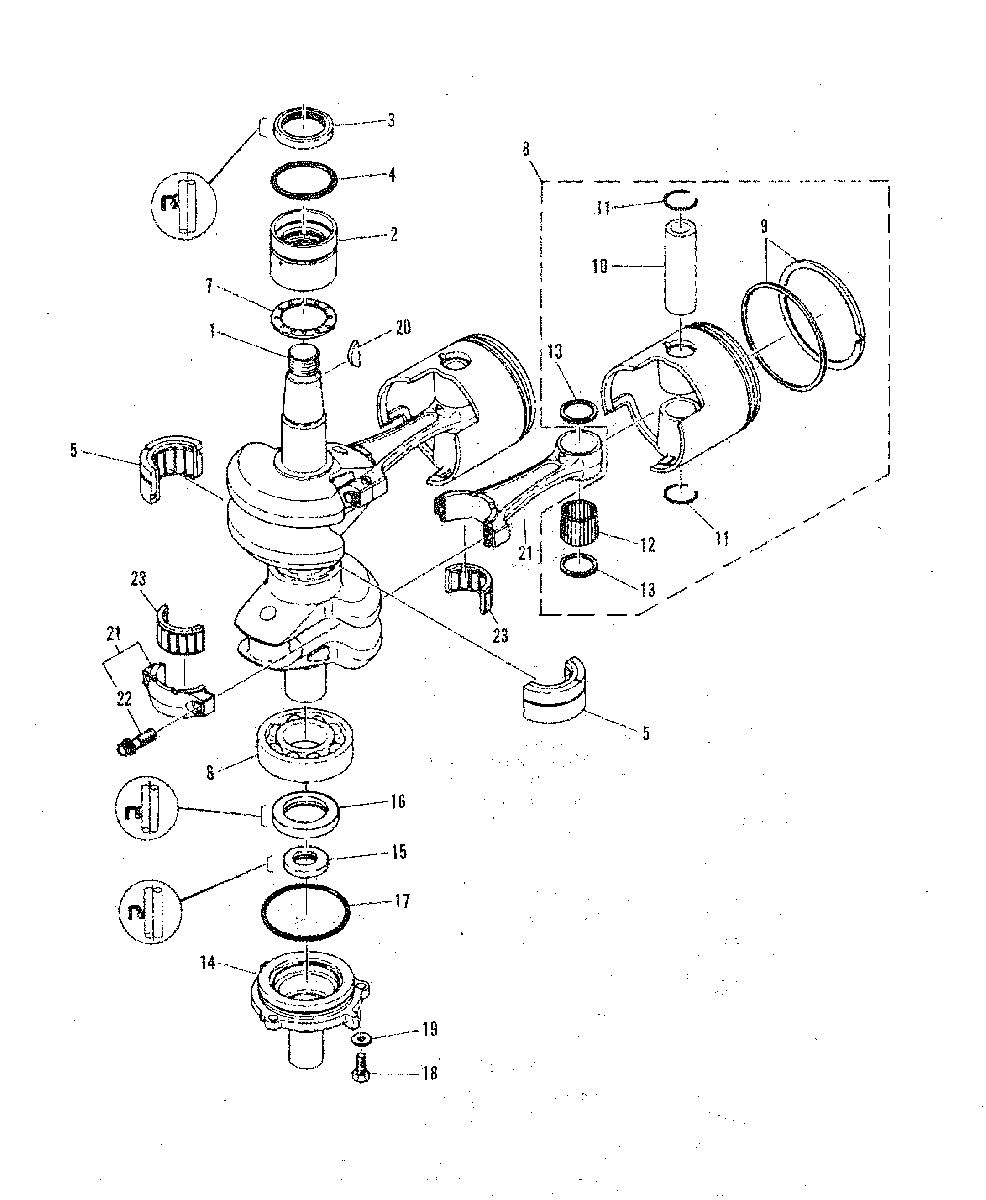

CRANKSHAFT AND PISTON для Mariner - 60 (2 CYL.) 675-001171 AND UP

№

Артикул

Название
1

463-6825M CRANKSHAFT ASS'Y

CRANKSHAFT ASS'Y

0 ₽
2

31-82312T BEARING, NEEDLE

BEARING, NEEDLE

11 670 ₽
3

26-82249M OIL SEAL, CRANKSHAFT - UPPER

OIL SEAL, CRANKSHAFT - UPPER

1 740 ₽
4

25-82276M O-RING, CRANKSHAFT - UPPER

O-RING, CRANKSHAFT - UPPER

410 ₽
5

31-97837T BEARING, CENTER MAIN

BEARING, CENTER MAIN

13 540 ₽
6

30-814560T BEARING, CRANKSHAFT - LOWER

BEARING, CRANKSHAFT - LOWER

12 140 ₽
7

15-81259M SHIM, CRANKSHAFT

SHIM, CRANKSHAFT

0 ₽
8

761-8457M PISTON ASS'Y (STD)

PISTON ASS'Y (STD)

0 ₽
8

761-8458M PISTON ASS'Y (1ST O.S 82.25 MM)

PISTON ASS'Y (1ST O.S 82.25 MM)

0 ₽
8

761-8459M PISTON ASS'Y (2ND O.S. 82.50 MM)

PISTON ASS'Y (2ND O.S. 82.50 MM)

0 ₽
9

39-92625T PISTON RING SET (STD)

PISTON RING SET (STD)

3 890 ₽
9

39-92626T PISTON RING SET 1ST (O.S. 82.25 MM)

PISTON RING SET 1ST (O.S. 82.25 MM)

3 730 ₽
9

39-92627T PISTON RING SET 2ND (O.S. 82.20 MM)

PISTON RING SET 2ND (O.S. 82.20 MM)

3 570 ₽
10

41-81263T PIN, PISTON

PIN, PISTON

1 150 ₽
11

53-81264M SNAP RING, PISTON OIN

SNAP RING, PISTON OIN

530 ₽
12

29-82353M BEARING, CONNECTING ROD (PISTON END)

BEARING, CONNECTING ROD (PISTON END)

90 ₽
13

12-81831M RETAINER, CONECTING ROD BEARING

RETAINER, CONECTING ROD BEARING

750 ₽
14

41828M HOUSING, OIL SEAL

HOUSING, OIL SEAL

0 ₽
15

26-82255M OIL SEAL, CRANKSHAFT - LOWER

OIL SEAL, CRANKSHAFT - LOWER

1 710 ₽
16

26-82248M OIL SEAL, CRANKSHAFT - LOWER

OIL SEAL, CRANKSHAFT - LOWER

1 800 ₽
17

25-82286M O-RING, OIL SEAL HOUSING

O-RING, OIL SEAL HOUSING

600 ₽
18

10-826957M BOLT

BOLT

0 ₽
19

12-82214M WASHER

WASHER

30 ₽
20

28-81915M KEY, CRANKSHAFT TO FLYWHEEL

KEY, CRANKSHAFT TO FLYWHEEL

490 ₽
21

629-8813M CONNECTING ROD ASS'Y

CONNECTING ROD ASS'Y

0 ₽
22

10-81715M BOLT

BOLT

0 ₽
23

31-97710M BEARING, CONNECTING ROD (CRANKSHAFT END)

BEARING, CONNECTING ROD (CRANKSHAFT END)

13 560 ₽
