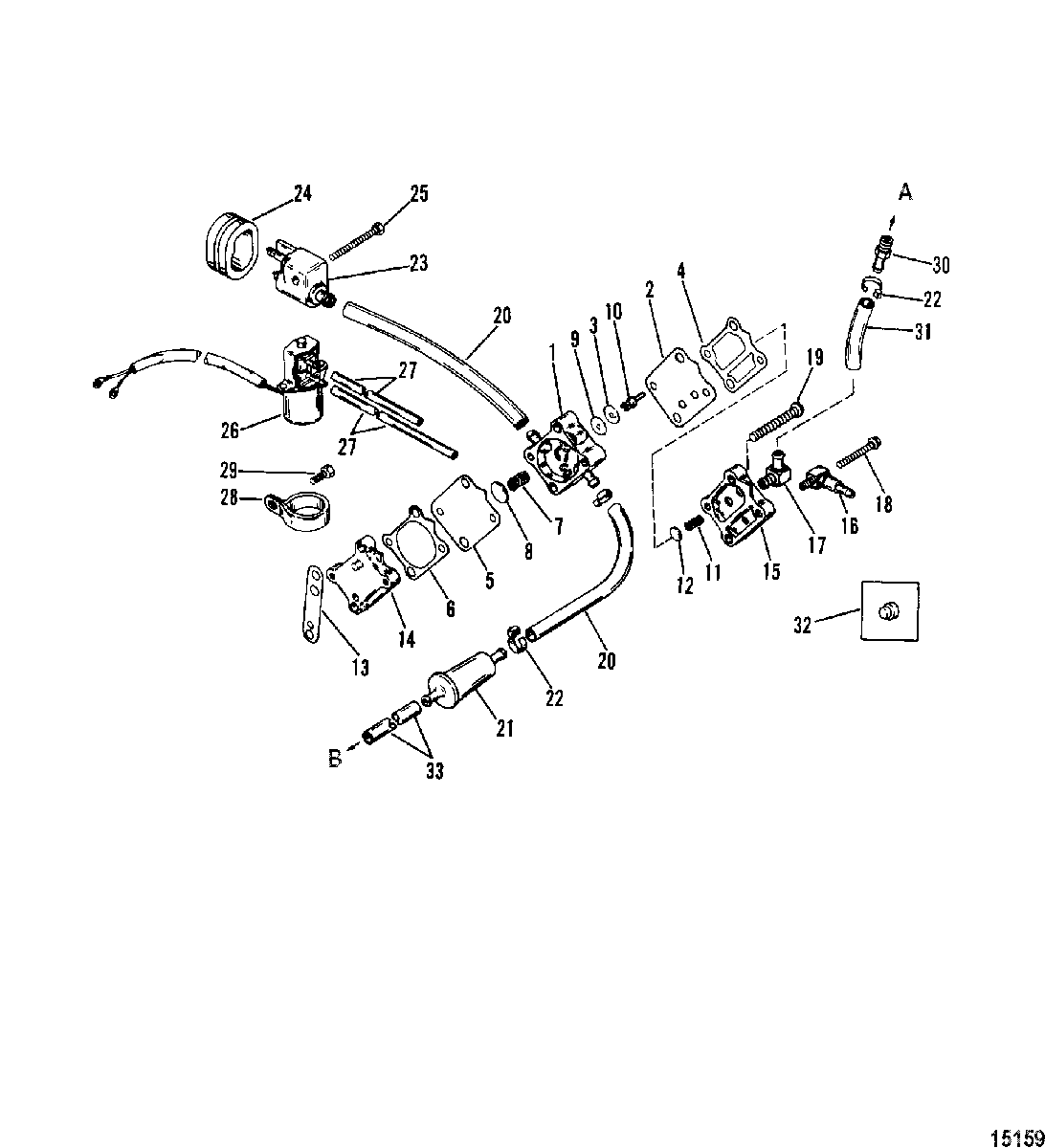

Fuel Pump для Mariner - 75 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
242909A4 DIAPHRAGM KIT
(Contents Of (27-43004A86) Gasket Set)DIAPHRAGM KIT
(Contents Of (27-43004A86) Gasket Set) -
3NSS NOT SOLD SEPARATE, Check Valve, RubberNOT SOLD SEPARATE, Check Valve, Rubber
-
4NSS NOT SOLD SEPARATE, Gasket, BoostNOT SOLD SEPARATE, Gasket, Boost
-
5NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
6NSS NOT SOLD SEPARATE, Gasket PulseNOT SOLD SEPARATE, Gasket Pulse
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
10NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKET, Base
(Contents Of 27-43004A86) Gasket SetGASKET, Base
(Contents Of 27-43004A86) Gasket Set -
1498768 BASE, Fuel PumpBASE, Fuel Pump
-
1598775A1 PLATE, Fuel PumpPLATE, Fuel Pump
-
1621-424811 CHECK VALVE, Oil InjectionCHECK VALVE, Oil Injection
-
1722-19688 FITTINGFITTING
-
1810-82104540 SCREW, Fuel PumpSCREW, Fuel Pump
-
1910-40057134 SCREW, (M6 x 50), Fuel Pump To CrankcaseSCREW, (M6 x 50), Fuel Pump To Crankcase
-
2032-8M0108349 TUBINGTUBING
-
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2254-816311T TIE STRAP, Fuel TubingTIE STRAP, Fuel Tubing
-
2322-816856Q3 CONNECTOR, FuelCONNECTOR, Fuel
-
2425-145091 GROMMET, Fuel ConnectorGROMMET, Fuel Connector
-
2510-4010635 SCREW, Fuel ConnectorSCREW, Fuel Connector
-
2689-819503A2 VALVE, EnrichnerVALVE, Enrichner
-
2732-1430165 TUBING, (38.00 Inches Bulk), Enrichner ValveTUBING, (38.00 Inches Bulk), Enrichner Valve
-
2854-15279 CLAMP, Enrichner ValveCLAMP, Enrichner Valve
-
2910-82127335 SCREW, (M8 x 1.25 x 35) , ClampSCREW, (M8 x 1.25 x 35) , Clamp
-
3022-64705 FITTING, Fuel Line
(A = To Crankcase)FITTING, Fuel Line
(A = To Crankcase) -
3132-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
3222-56800 PLUG, Pipe (.0625-27), Non Oil InjectionPLUG, Pipe (.0625-27), Non Oil Injection
-
3332-19017A1 LINE ASSEMBLY, Fuel
(B = To Carburetor)LINE ASSEMBLY, Fuel
(B = To Carburetor) -
-42909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
-27-43004A99 GASKET SETGASKET SET
