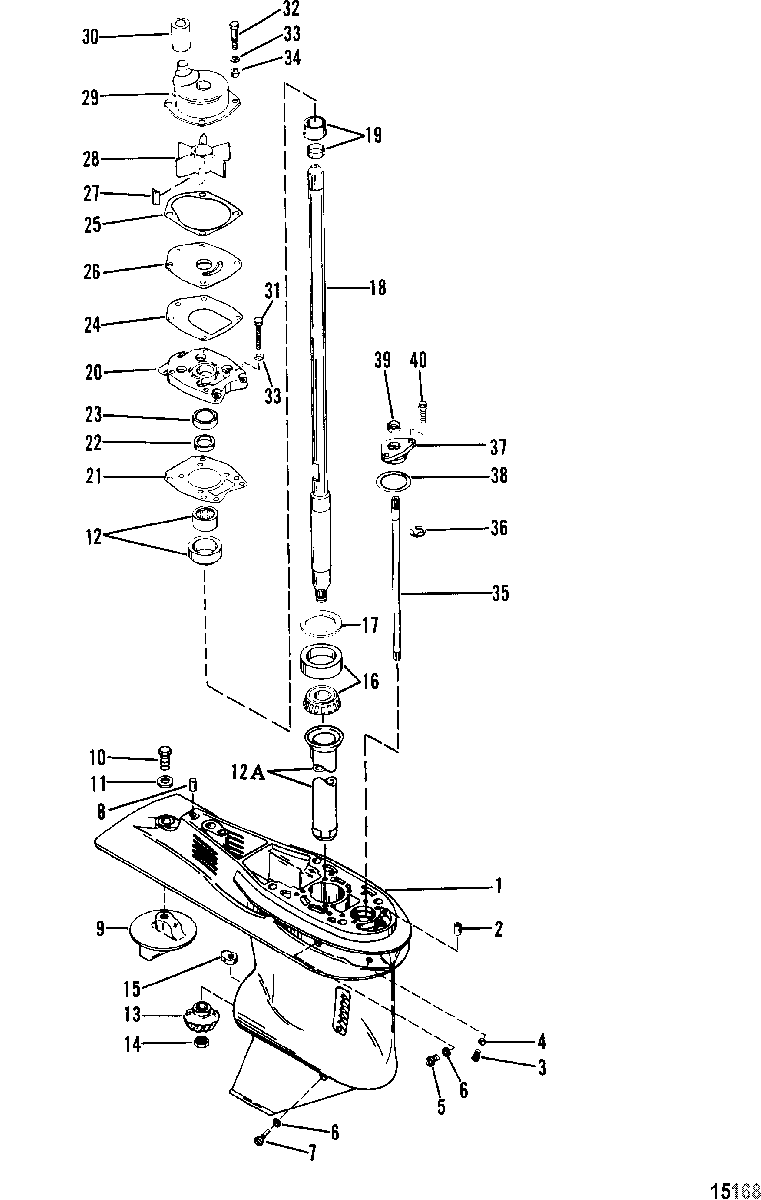

Gear Housing, Driveshaft для Mariner - 75 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, Long, BlackGEAR HOUSING ASSEMBLY, Long, Black
-
-1667-9011G34 GEAR HOUSING ASSEMBLY, X-Long, BlackGEAR HOUSING ASSEMBLY, X-Long, Black
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, Long, GrayGEAR HOUSING ASSEMBLY, Long, Gray
-
-1667-9011J24 GEAR HOUSING ASSEMBLY, X-Long, GrayGEAR HOUSING ASSEMBLY, X-Long, Gray
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, Long, OysterGEAR HOUSING ASSEMBLY, Long, Oyster
-
11667-9011T73 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
11667-9011T73 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
11667-9011T73 GEAR HOUSING ASSEMBLY, OysterGEAR HOUSING ASSEMBLY, Oyster
-
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front, Quanitity Of Two On X-LongPIN, Dowel - With Hole (.375 x .625) , Front, Quanitity Of Two On X-Long
-
310-28653 SCREW, (#10-32 x 0.25), VentSCREW, (#10-32 x 0.25), Vent
-
419643 SEAL, Vent ScrewSEAL, Vent Screw
-
510-79953Q04 SCREW, (.375-16 x .250), Grease FillerSCREW, (.375-16 x .250), Grease Filler
-
612-191833 WASHER, Fiber, Drain/Filler ScrewWASHER, Fiber, Drain/Filler Screw
-
722-8M0058389 SCREW, Magnetic, DrainSCREW, Magnetic, Drain
-
817-43044 PIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-LongPIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-Long
-
997-31640Q4 TRIM TAB ASSEMBLYTRIM TAB ASSEMBLY
-
1010-825427 SCREW, (.437-14 x 1.250), Trim TabSCREW, (.437-14 x 1.250), Trim Tab
-
1112-45176 WASHER, (.453 x .812 x .105) Stainless Steel, Trim Tab ScrewWASHER, (.453 x .812 x .105) Stainless Steel, Trim Tab Screw
-
1243040T1 CARRIER ASSEMBLY, Roller BearingCARRIER ASSEMBLY, Roller Bearing
-
12A43046 TUBE, OilerTUBE, Oiler
-
1343-44484T GEAR, Pinion (13 Teeth)GEAR, Pinion (13 Teeth)
-
1411-35921 NUT, (.625-18), Pinion GearTo Drive ShaftNUT, (.625-18), Pinion GearTo Drive Shaft
-
15760394 CAM, Shift ControlCAM, Shift Control
-
1631-42677A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1715-8M0063265 SHIM SETSHIM SET
-
1845-43031A1 DRIVESHAFT ASSEMBLY, LongDRIVESHAFT ASSEMBLY, Long
-
1845-43032A4 DRIVESHAFT ASSEMBLY, X-LongDRIVESHAFT ASSEMBLY, X-Long
-
1942461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
2046-8M0113262 COVER ASSEMBLY, Alluminum CoverCOVER ASSEMBLY, Alluminum Cover
-
2127-430472 GASKET, Cover, Alluminum CoverGASKET, Cover, Alluminum Cover
-
2226-43036 SEAL, Oil, Lower, Alluminun CoverSEAL, Oil, Lower, Alluminun Cover
-
2326-43035 SEAL, Oil, Upper, Alluminum CoverSEAL, Oil, Upper, Alluminum Cover
-
2427-430331 GASKET, Cover, Alluminum CoverGASKET, Cover, Alluminum Cover
-
2527-430341 GASKET, Aluminum Cover, Water Pump, Alluminun CoverGASKET, Aluminum Cover, Water Pump, Alluminun Cover
-
2046-8M0113262 COVER ASSEMBLY, Plastic CoverCOVER ASSEMBLY, Plastic Cover
-
2046-8M0113262 COVER ASSEMBLY, Aluminum CoverCOVER ASSEMBLY, Aluminum Cover
-
2226-43036 SEAL, Oil, Lower, Plastic CoverSEAL, Oil, Lower, Plastic Cover
-
2326-43035 SEAL, Oil, Upper, Plastic CoverSEAL, Oil, Upper, Plastic Cover
-
2527-430341 GASKET, Aluminum Cover, Water Pump, Plastic CoverGASKET, Aluminum Cover, Water Pump, Plastic Cover
-
26817275A2 FACE PLATEFACE PLATE
-
2728-8M0032833 KEY, Impeller DriveKEY, Impeller Drive
-
2847-43026T2 IMPELLERIMPELLER
-
29817275A2 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3043023 SEAL, Water TubeSEAL, Water Tube
-
3110-4000330 SCREW, (M6 x 25), CoverSCREW, (M6 x 25), Cover
-
3210-4000332 SCREW, (M6 x 35), Water PumpSCREW, (M6 x 35), Water Pump
-
3312-4002315 WASHER, (6.60 X 12.5 X 1.5 mm -SS)WASHER, (6.60 X 12.5 X 1.5 mm -SS)
-
3423-43045 INSULATOR, Water Pump ScrewINSULATOR, Water Pump Screw
-
3543048A1 SHIFT SHAFT ASSEMBLY, LongSHIFT SHAFT ASSEMBLY, Long
-
3543049A1 SHIFT SHAFT ASSEMBLY, X-LongSHIFT SHAFT ASSEMBLY, X-Long
-
3653-29641 E RING, Shift ShaftE RING, Shift Shaft
-
3723-43052A4 BUSHING ASSEMBLY, Shift ShaftBUSHING ASSEMBLY, Shift Shaft
-
3825-457101 O-RING, (1.424 x .103), BushingO-RING, (1.424 x .103), Bushing
-
3926-8164641 SEAL, Oil, BushingSEAL, Oil, Bushing
-
4010-8M4503518 SCREW, (M6 x 20) Stainless Steel, BushingSCREW, (M6 x 20) Stainless Steel, Bushing
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113799 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-27-43004A99 GASKET SETGASKET SET
