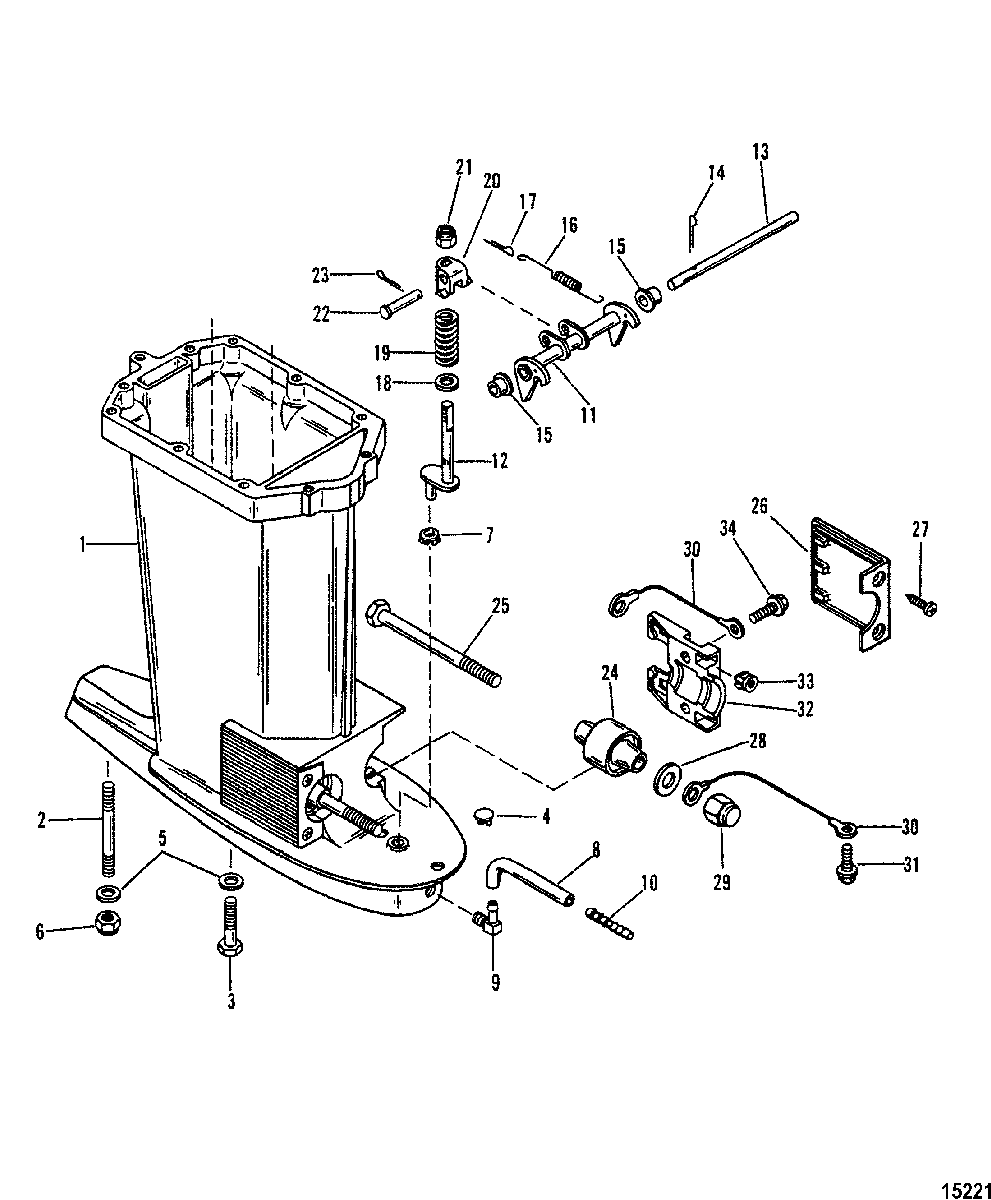

Drive Shaft Housing для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
1898289A49 DRIVE SHAFT HOUSING ASSEMBLY, BlackDRIVE SHAFT HOUSING ASSEMBLY, Black
-
1898289A49 DRIVE SHAFT HOUSING ASSEMBLY, GrayDRIVE SHAFT HOUSING ASSEMBLY, Gray
-
216-903501 STUD, (M10 x 100)STUD, (M10 x 100)
-
310-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
4429221 PLUG, Three Ram Power TrimPLUG, Three Ram Power Trim
-
512-45176 WASHERWASHER
-
611-40140 NUT, (M10)NUT, (M10)
-
7429222 GUIDE, Non PowerTrimGUIDE, Non PowerTrim
-
822-85822A4 SPEEDOMETER PICK-UP ASSEMBLYSPEEDOMETER PICK-UP ASSEMBLY
-
922-433351 CONNECTOR, 90 DegreeCONNECTOR, 90 Degree
-
1022-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1114664A2 REVERSE HOOK ASSEMBLYREVERSE HOOK ASSEMBLY
-
1216686 PUSH RODPUSH ROD
-
1399606 SHAFTSHAFT
-
1418-45882 COTTER PINCOTTER PIN
-
1523-69132 BUSHINGBUSHING
-
1624-996261 SPRINGSPRING
-
1718-47959 COTTER PINCOTTER PIN
-
1812-8M0042642 WASHER, (.323 x .563 x .063)WASHER, (.323 x .563 x .063)
-
1924-16733 SPRINGSPRING
-
20996361 YOKEYOKE
-
2111-82670911 NUT, (.312-24)NUT, (.312-24)
-
2217-99663 CLEVIS PINCLEVIS PIN
-
2318-25191 COTTER PINCOTTER PIN
-
2442930A1 MOUNTMOUNT
-
2510-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
26100-8M4500752 COVERCOVER
-
26100-8M4500752 COVERCOVER
-
2710-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
2812-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
2911-43528 NUT, (M12)NUT, (M12)
-
3088238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
3110-41508 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
328M0036730 CLAMPCLAMP
-
3311-35521 NUTNUT
-
3410-40011149 SCREW, (M8 x 25)SCREW, (M8 x 25)
