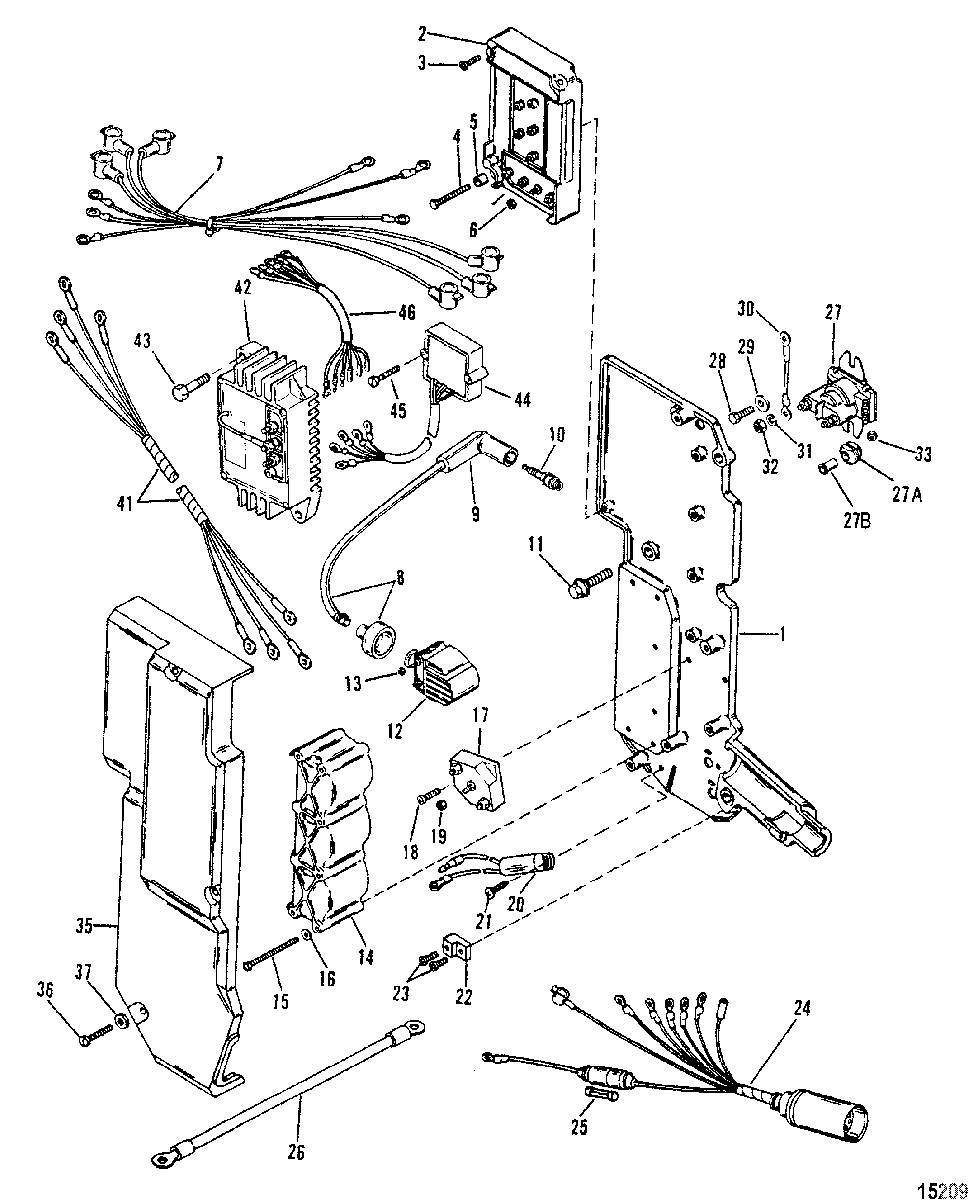

Electrical Components для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221

№

Артикул

Название
1

42968A23 IGNITION PLATE

IGNITION PLATE

0 ₽
2

332-7778A12 SWITCH BOX

SWITCH BOX

23 800 ₽
3

10-69079 SCREW, (#10-16 x .440)

SCREW, (#10-16 x .440)

100 ₽
4

10-40007110 SCREW, (M5 X 30)

SCREW, (M5 X 30)

0 ₽
5

23-94304 SPACER

SPACER

3 800 ₽
6

11-45076 NUT, (#10-32)

NUT, (#10-32)

120 ₽
7

84-41592A4 HARNESS ASSEMBLY

HARNESS ASSEMBLY

0 ₽
8

84-813715A7 CABLE

CABLE

2 600 ₽
9

85-63709A1 BOOT KIT

BOOT KIT

550 ₽
10

33-97182Q SPARK PLUG
(NGK #BUHW-2)

SPARK PLUG
(NGK #BUHW-2)

650 ₽
10

33-14103Q SPARK PLUG
(Belgium/Canada) (NGK #BUZHW-2)

SPARK PLUG
(Belgium/Canada) (NGK #BUZHW-2)

2 140 ₽
11

10-82155025 SCREW, (M8 x 25)

SCREW, (M8 x 25)

190 ₽
12

339-832757A4 IGNITION COIL ASSEMBLY

IGNITION COIL ASSEMBLY

7 450 ₽
13

11-45076 NUT, (#10-32)

NUT, (#10-32)

120 ₽
14

43542 COVER

COVER

0 ₽
15

10-40007115 SCREW, (M5 X 55)

SCREW, (M5 X 55)

0 ₽
16

12-89302 WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

130 ₽
17

17602A1 TERMINAL BLOCK, Black

TERMINAL BLOCK, Black

4 490 ₽
17

17602T02 TERMINAL BLOCK, Gray

TERMINAL BLOCK, Gray

8 430 ₽
18

10-40056107 SCREW, (M5 x 16)

SCREW, (M5 x 16)

290 ₽
19

11-45076 NUT, (#10-32)

NUT, (#10-32)

120 ₽
20

16731T01 MERCURY SWITCH, Old Design

MERCURY SWITCH, Old Design

7 380 ₽
21

10-40056107 SCREW, (M5 x 16)

SCREW, (M5 x 16)

290 ₽
22

86-45915 TERMINAL BLOCK

TERMINAL BLOCK

210 ₽
23

10-48408 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

200 ₽
24

84-41591A7 ENGINE HARNESS
SN# D252461 & Up

ENGINE HARNESS
SN# D252461 & Up

0 ₽
24

84-41591A3 WIRING HARNESS ASSEMBLY
SN# D252460 & Below

WIRING HARNESS ASSEMBLY
SN# D252460 & Below

8 420 ₽
24

84-41591A7 ENGINE HARNESS, Use Without Reference Number 20 And 21

ENGINE HARNESS, Use Without Reference Number 20 And 21

0 ₽
25

88-79091 FUSE, (20 Ampere)

FUSE, (20 Ampere)

360 ₽
26

84-88439A3 BATTERY CABLE, Positive

BATTERY CABLE, Positive

3 290 ₽
26

84-88439A4 BATTERY CABLE, Negative

BATTERY CABLE, Negative

3 540 ₽
27

89-850187T1 STARTER SOLENOID, ( 8-32 .250-20 Terminals)

STARTER SOLENOID, ( 8-32 .250-20 Terminals)

3 730 ₽
27A

25-818967 GROMMET

GROMMET

130 ₽
27B

23-818968 BUSHING

BUSHING

140 ₽
28

10-40011109 SCREW, (M5 x 25)

SCREW, (M5 x 25)

150 ₽
29

12-4002314 WASHER

WASHER

170 ₽
30

84-88807A6 WIRE, (3.50 Inches) Black, Quantity Of Three On Power Trim

WIRE, (3.50 Inches) Black, Quantity Of Three On Power Trim

350 ₽
31

13-26992 LOCKWASHER, (.250)

LOCKWASHER, (.250)

70 ₽
32

11-64015 NUT, ( #8-32)

NUT, ( #8-32)

150 ₽
33

11-26419 NUT, (#8-32)

NUT, (#8-32)

120 ₽
34

134731 FUSE HOLDER, Old Design

FUSE HOLDER, Old Design

0 ₽
35

124174 COVER

COVER

0 ₽
36

10-40007114 SCREW, (50 MM)

SCREW, (50 MM)

250 ₽
37

12-89302 WASHER, (.203 x .406 x .040), Use Where Applicable

WASHER, (.203 x .406 x .040), Use Where Applicable

130 ₽
41

84-12201A2 HARNESS ASSEMBLY
(Use With Black Terminal Block)

HARNESS ASSEMBLY
(Use With Black Terminal Block)

0 ₽
42

815279A2 VOLTAGE REGULATOR
(Use With Black Terminal Block)

VOLTAGE REGULATOR
(Use With Black Terminal Block)

27 500 ₽
43

10-4010630 SCREW, (M6 x 30)
(Use With Black Terminal Block)

SCREW, (M6 x 30)
(Use With Black Terminal Block)

350 ₽
44

8M0084173 VOLTAGE REGULATOR
(Two Female/Three Male Terminals)

VOLTAGE REGULATOR
(Two Female/Three Male Terminals)

28 020 ₽
44

815279A2 VOLTAGE REGULATOR, Five Ring Terminals

VOLTAGE REGULATOR, Five Ring Terminals

27 500 ₽
45

10-4010635 SCREW, (M6 x 35)

SCREW, (M6 x 35)

150 ₽
46

84-821546A3 HARNESS
(Use With 815279--3 Voltage Regulator)

HARNESS
(Use With 815279--3 Voltage Regulator)

3 410 ₽
