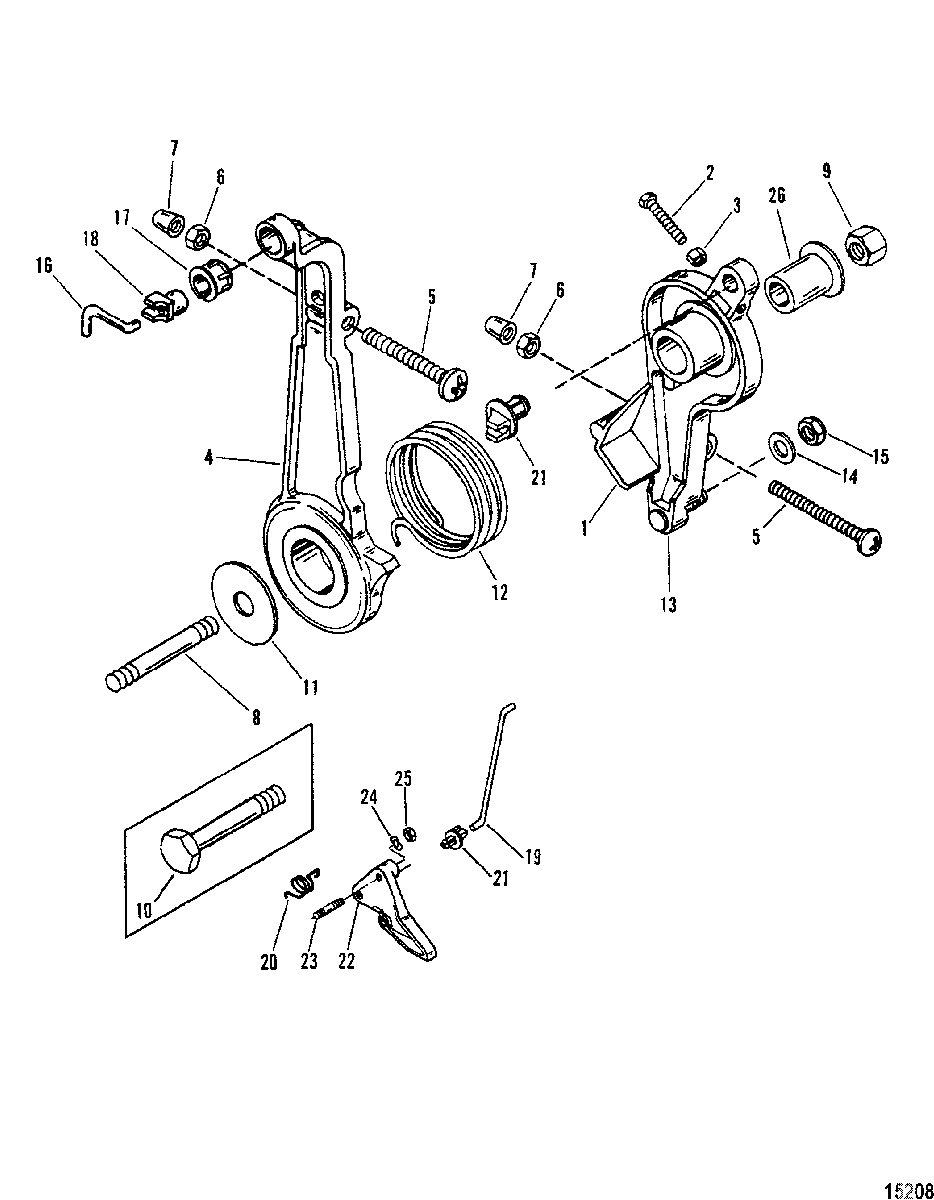

Throttle Lever And Linkage для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
142946T1 LEVERLEVER
-
210-817582 ADJUSTING SCREW, (5 MM)ADJUSTING SCREW, (5 MM)
-
311-400211 NUT, (M5)NUT, (M5)
-
4429471 LEVERLEVER
-
510-814776 ADJUSTING SCREW, (M6 x 55)ADJUSTING SCREW, (M6 x 55)
-
611-400212 NUT, (M6)NUT, (M6)
-
742942 CAPCAP
-
816-42986 STUD, Design ISTUD, Design I
-
911-90517 NUT, (M10), Design INUT, (M10), Design I
-
1010-4007180 SCREW, (M10 x 45), Design IISCREW, (M10 x 45), Design II
-
1112-42980 WASHER, Design IIWASHER, Design II
-
1224-55162 SPRINGSPRING
-
1342927 INSERTINSERT
-
1412-35459 WASHERWASHER
-
1511-401386 NUT, (M6)NUT, (M6)
-
16878172 RODROD
-
1793254 SWIVEL BASESWIVEL BASE
-
1893421 SWIVEL BALLSWIVEL BALL
-
19878420T RODROD
-
2024-14159 SPRINGSPRING
-
2123-932481 BUSHINGBUSHING
-
2242948A7 CAMCAM
-
2316-8161949 STUDSTUD
-
2412-69056 WASHER, (.255 x .620 x .03)WASHER, (.255 x .620 x .03)
-
2511-401386 NUT, (M6)NUT, (M6)
-
2623-812930A1 BUSHINGBUSHING
