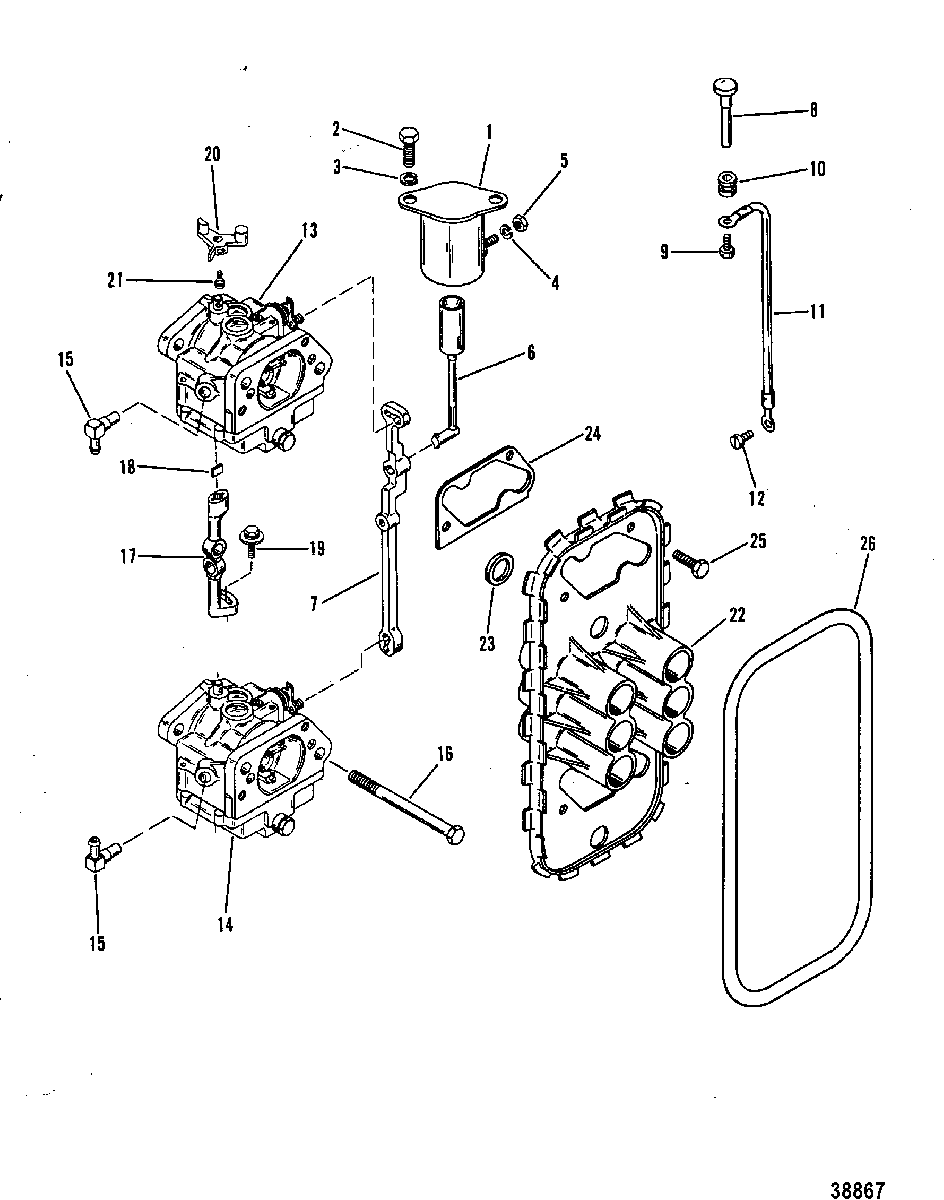

CARBURETOR LINKAGE для Mariner - 75 (4 CYL.) 9393856 & Up
-
№АртикулНазвание
-
154293A10 SOLENOID ASSEMBLY, ChokeSOLENOID ASSEMBLY, Choke
-
210-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
313-26993 LOCKWASHER, (.312), CHOKE SOLENOID SCREWLOCKWASHER, (.312), CHOKE SOLENOID SCREW
-
413-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
-
511-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINALNUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
-
689008A2 PLUNGER ASSEMBLYPLUNGER ASSEMBLY
-
773400 ROD, ChokeROD, Choke
-
890242A1 KNOB ASSEMBLYKNOB ASSEMBLY
-
910-77137 SCREW, (.190-16 x .620), WIRE TO CHOKE KNOBSCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
-
1025-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
1184-74263 WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
-
1210-62568 SCREW, (#10-16 x .375), WIRE TO CHOKE RODSCREW, (#10-16 x .375), WIRE TO CHOKE ROD
-
131379-6071A57 CARBURETOR ASSEMBLY (TOP)CARBURETOR ASSEMBLY (TOP)
-
141379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)CARBURETOR ASSEMBLY (BOTTOM)
-
1522-19688 FITTING, CARBURETORFITTING, CARBURETOR
-
1610-52743 SCREW, (.312-18 x 3.750)SCREW, (.312-18 x 3.750)
-
1753720A2 COUPLING ASSEMBLY, LOWER CARBURETORCOUPLING ASSEMBLY, LOWER CARBURETOR
-
1828-89694 KEY, COUPLINGKEY, COUPLING
-
1910-66104 SCREW, (#8-32 x .790)SCREW, (#8-32 x .790)
-
2073847 ACTUATOR, THROTTLE (UPPER CARBURETOR)ACTUATOR, THROTTLE (UPPER CARBURETOR)
-
2110-60293 SCREW, (#5-40 x .500)SCREW, (#5-40 x .500)
-
2273408 PLATE, CARBURETORPLATE, CARBURETOR
-
2327-73398 GASKET, CARBURETOR PLATEGASKET, CARBURETOR PLATE
-
2427-76952 GASKET, CARBURETOR PLATE TO CARBURETORGASKET, CARBURETOR PLATE TO CARBURETOR
-
2510-28635 SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETORSCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR
-
2673647 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
