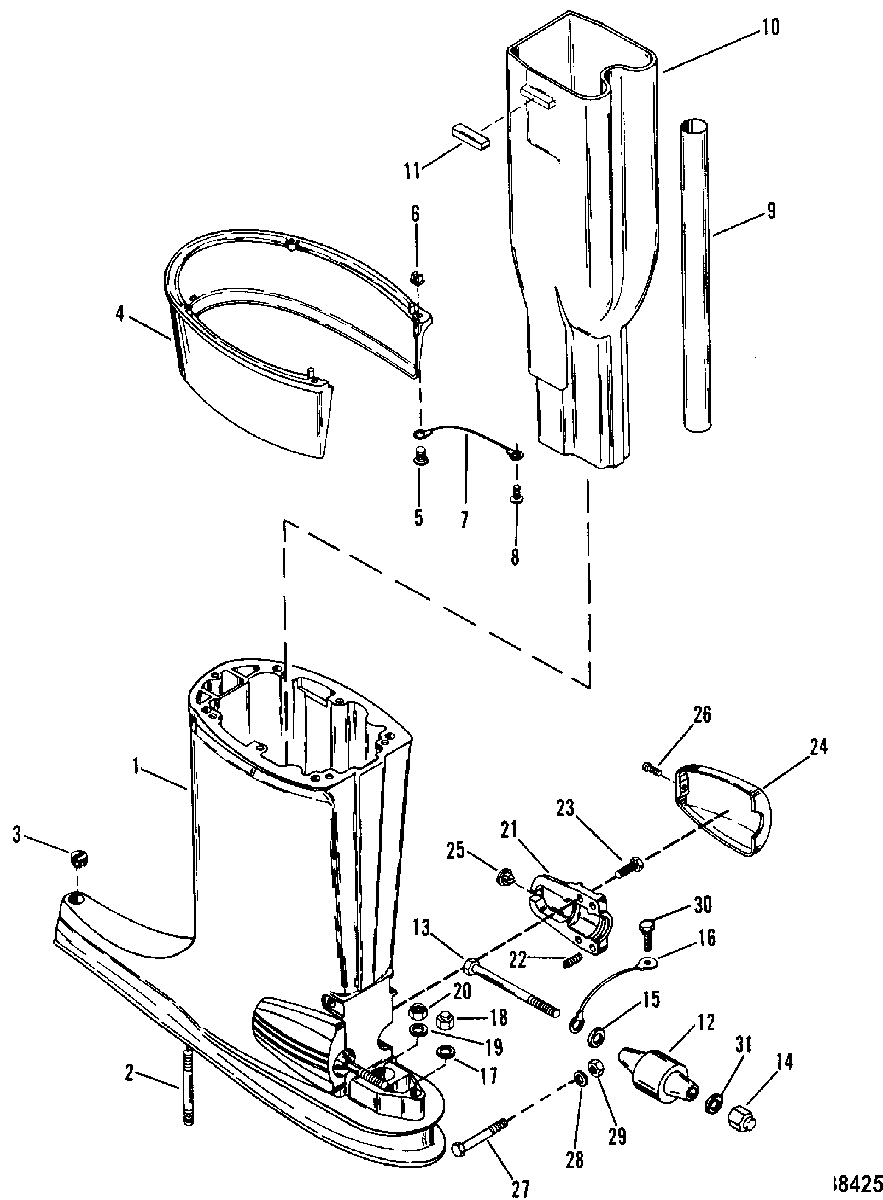

DRIVESHAFT HOUSING ASSEMBLY для Mariner - 75 (4 CYL.) 9393856 & Up
-
№АртикулНазвание
-
11573-5239A4 HOUSING ASSEMBLY, Driveshaft - MercuryHOUSING ASSEMBLY, Driveshaft - Mercury
-
11573-5239A51 HOUSING ASSEMBLY, Driveshaft - MarinerHOUSING ASSEMBLY, Driveshaft - Mariner
-
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
319-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
437417 COVER, TRIM MERCURYCOVER, TRIM MERCURY
-
437417F2 COVER, TRIM MARINERCOVER, TRIM MARINER
-
510-57807 SCREW, (#10-16 x .750) Stainless SteelSCREW, (#10-16 x .750) Stainless Steel
-
625-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
784-88238T01 CABLE ASSEMBLY, TRIM COVER SCREWCABLE ASSEMBLY, TRIM COVER SCREW
-
810-62568 SCREW, (#10-16 x .375), GROUND STRAP ATTACHINGSCREW, (#10-16 x .375), GROUND STRAP ATTACHING
-
932-60897 TUBE, WATER INLETTUBE, WATER INLET
-
1078184T TUBE, EXHAUSTTUBE, EXHAUST
-
1165638 BOOT, EXHAUST TUBEBOOT, EXHAUST TUBE
-
1275298 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
1310-43426 SCREW, UPPER MOUNTSCREW, UPPER MOUNT
-
1411-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
1512-30119 WASHER, (.875 Inch Outside Diameter), UPPER MOUNT SCREWWASHER, (.875 Inch Outside Diameter), UPPER MOUNT SCREW
-
1688238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1712-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
-
1811-29489 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
1912-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
-
2011-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSINGNUT, (.437-20) Stainless Steel, GEAR HOUSING
-
2135608 CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
-
2224-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
2310-29256 SCREW, (.312-18 x .875)SCREW, (.312-18 x .875)
-
2435474T COVER, LOWER MOUNT CLAMP
(MERCURY)COVER, LOWER MOUNT CLAMP
(MERCURY) -
2435474F2 COVER, Lower Mount Clamp
(MARINER)COVER, Lower Mount Clamp
(MARINER) -
2511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
2610-87884 SCREW, (#12-14 x .920)SCREW, (#12-14 x .920)
-
2710-28200 SCREW, (.375-24 x 2.875), DRIVESHAFT HOUSING
(Use where Applicable)SCREW, (.375-24 x 2.875), DRIVESHAFT HOUSING
(Use where Applicable) -
2812-34714 WASHER, HOUSING SCREW
(Use where Applicable)WASHER, HOUSING SCREW
(Use where Applicable) -
2911-25269 NUT, (.375-24), HOUSING SCREW
(Use where Applicable)NUT, (.375-24), HOUSING SCREW
(Use where Applicable) -
3010-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRESCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
-
3112-49339 WASHER, (.8125), LOWER MOUNTWASHER, (.8125), LOWER MOUNT
