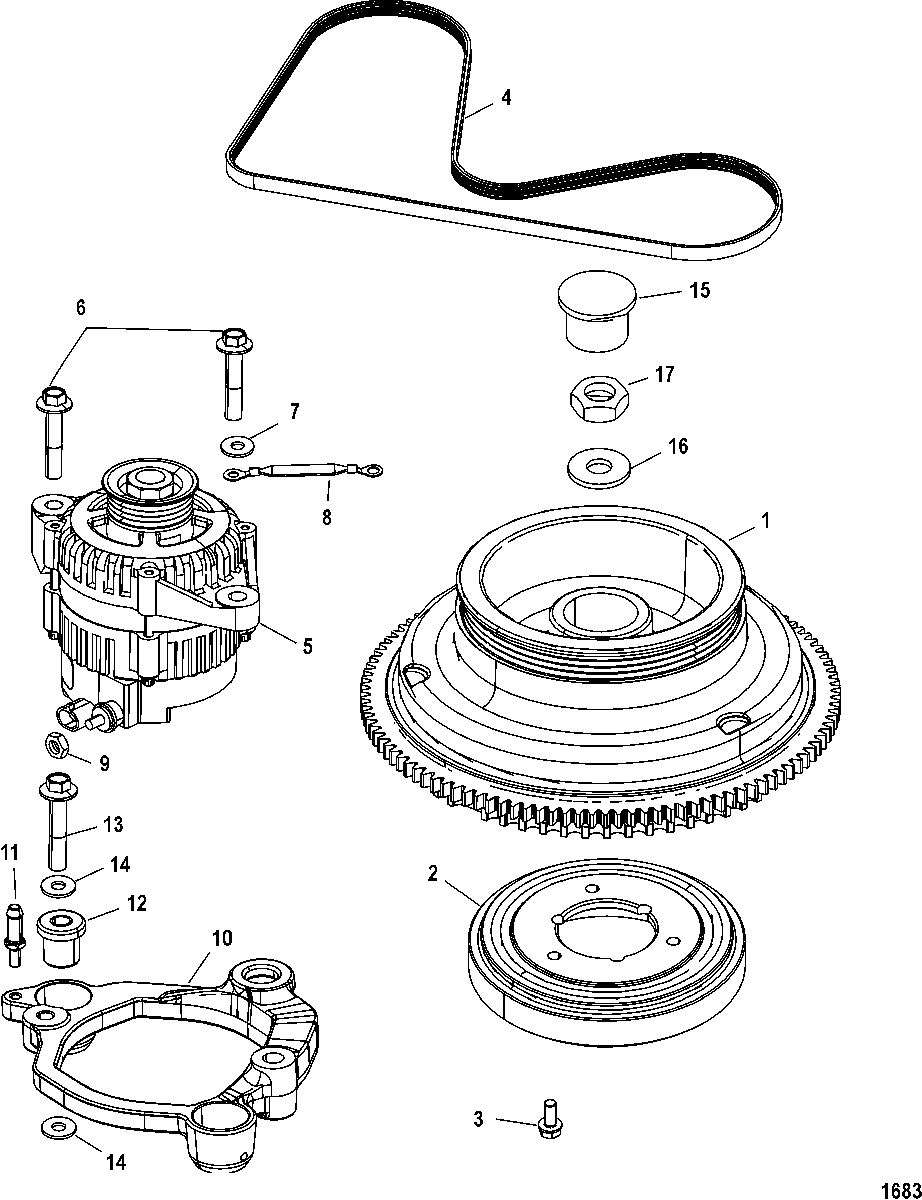

Flywheel and Alternator для Mariner - 75 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
1200-878588T08 FLYWHEELFLYWHEEL
-
2888842T01 DAMPERDAMPER
-
310-8M0143223 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
457-8M0026410 BELTBELT
-
58M0064020 ALTERNATORALTERNATOR
-
610-82130150 SCREW, (M10 x 50)SCREW, (M10 x 50)
-
712-4002319 WASHERWASHER
-
884-856583A5 CABLE ASSEMBLYCABLE ASSEMBLY
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
10879856T02 BRACKET, AlternatorBRACKET, Alternator
-
118215832 PIN, SpecialPIN, Special
-
1223-856975 MOUNTMOUNT
-
1310-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
1412-855725 WASHERWASHER
-
1519-45907 PLUG, YellowPLUG, Yellow
-
1612-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
1711-42979 NUT, (M16)NUT, (M16)
