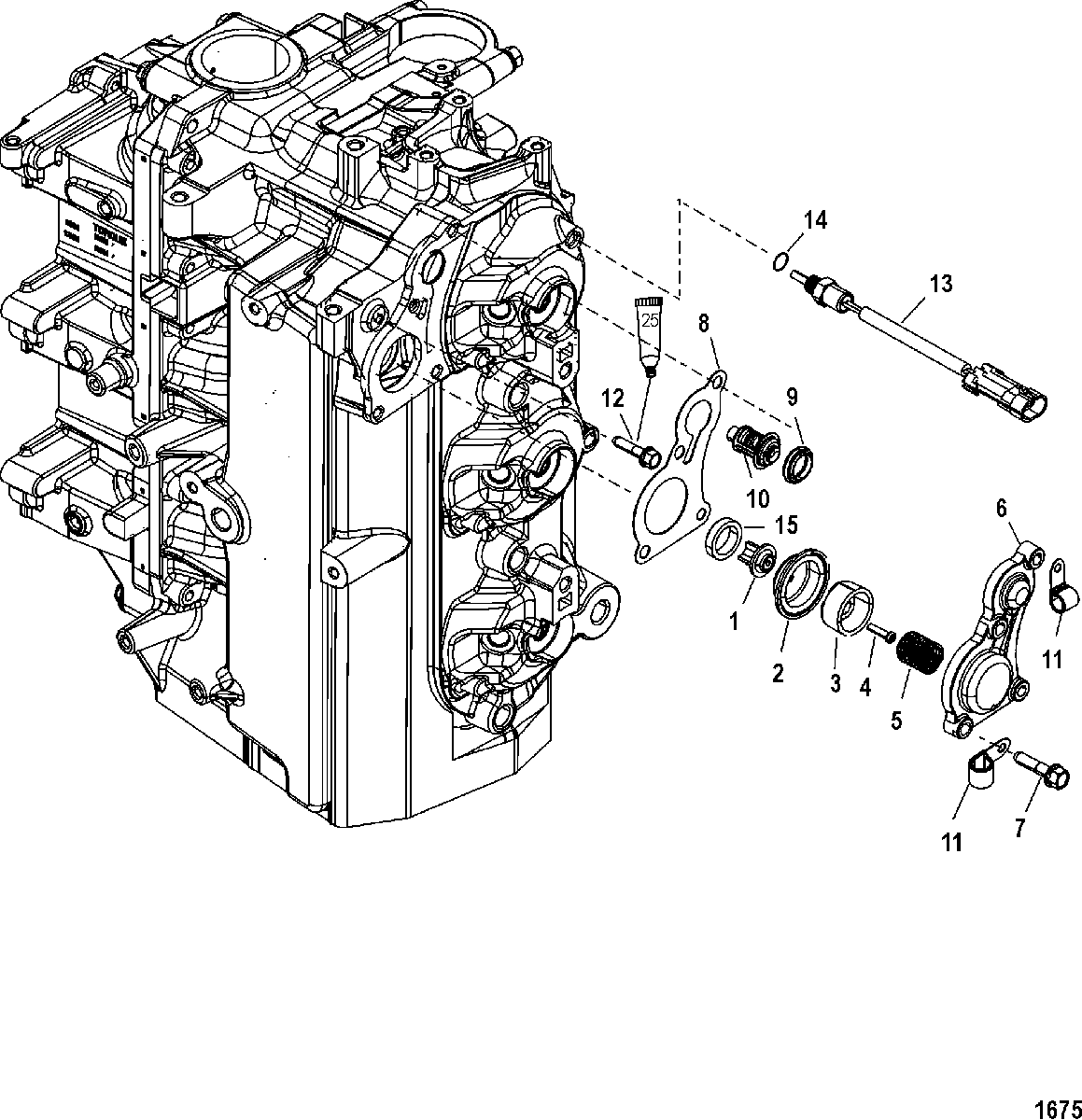

Poppet/Thermostat Mounting для Mariner - 75 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
1884389 POPPETPOPPET
-
2812887002 DIAPHRAGM
SN# 0T932790 & BelowDIAPHRAGM
SN# 0T932790 & Below -
2812887002 DIAPHRAGM
SN# 0T932791 & UpDIAPHRAGM
SN# 0T932791 & Up -
312-94182 WASHERWASHER
-
410-69570 SCREW, (#10-16 x .750) (10-16 x 3/4)SCREW, (#10-16 x .750) (10-16 x 3/4)
-
524-892321 SPRINGSPRING
-
68M0036780 COVERCOVER
-
710-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
827-879855001 GASKET
SN# 0T832040 & BelowGASKET
SN# 0T832040 & Below -
827-879855001 GASKET
SN# 0T832041 & UpGASKET
SN# 0T832041 & Up -
927-62386001 GASKET
SN# 0T961336 & BelowGASKET
SN# 0T961336 & Below -
927-62386001 GASKET
SN# 0T961337 & UpGASKET
SN# 0T961337 & Up -
10833072004 THERMOSTAT, 62A°C (143A°F)
SN# 0T979999 & BelowTHERMOSTAT, 62A°C (143A°F)
SN# 0T979999 & Below -
10833072004 THERMOSTAT, 62A°C (143A°F)
SN# 0T980000 & UpTHERMOSTAT, 62A°C (143A°F)
SN# 0T980000 & Up -
1154-814634 CLAMPCLAMP
-
1210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
13885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1425-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
1523-892265 SPACERSPACER
-
027-879855A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
0895233A07 POWERHEAD ASSEMBLY
(75)POWERHEAD ASSEMBLY
(75) -
0891767A07 POWERHEAD ASSEMBLY
90/115POWERHEAD ASSEMBLY
90/115
