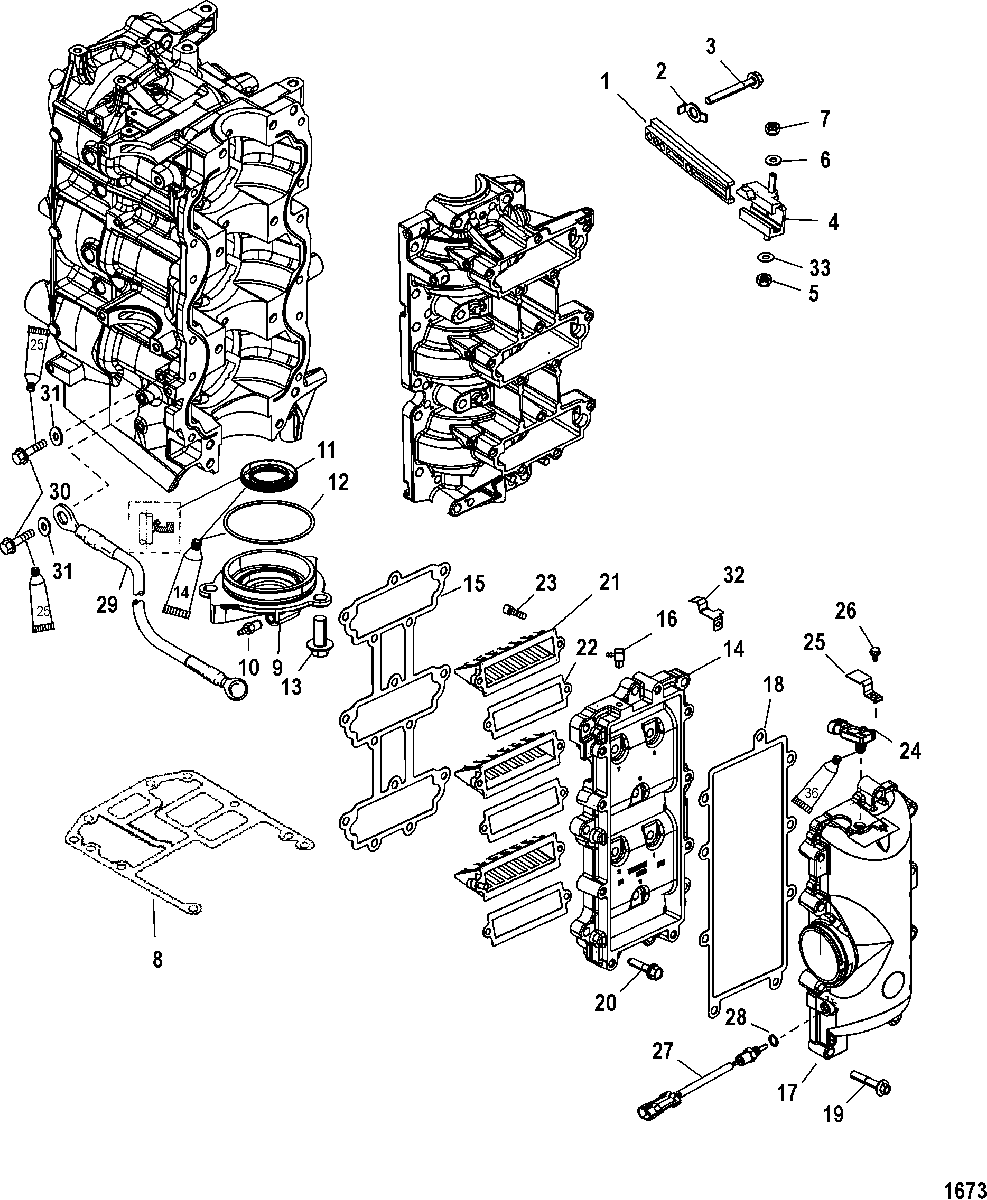

Reed Block для Mariner - 75 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
142881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
214-42981 TAB WASHERTAB WASHER
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
4988851 SLIDESLIDE
-
511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
612-35459 WASHERWASHER
-
711-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
827-430075 GASKETGASKET
-
91169-858552T2 CAP ASSEMBLY, Lower EndCAP ASSEMBLY, Lower End
-
1021-426585 CHECK VALVECHECK VALVE
-
1126-419533 SEAL, OilSEAL, Oil
-
1225-89224 O-RINGO-RING
-
1310-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
14879839A00 PLATE ASSEMBLY, Reed AdaptorPLATE ASSEMBLY, Reed Adaptor
-
1527-879840 GASKETGASKET
-
1622-768431 FITTINGFITTING
-
17879841A03 COVERCOVER
-
1827-879843 GASKETGASKET
-
1910-82127345 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
2010-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
21828623T4 REED BLOCKREED BLOCK
-
2227-880122 GASKETGASKET
-
2310-4007420 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
24854445 SENSOR, MAPSENSOR, MAP
-
25884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
2610-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
27885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2825-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
2984-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3010-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
3112-36001 WASHERWASHER
-
3254-889559 CLAMPCLAMP
-
3312-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
027-879855A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
0895233A07 POWERHEAD ASSEMBLY
75POWERHEAD ASSEMBLY
75 -
0891767A07 POWERHEAD ASSEMBLY
90/115POWERHEAD ASSEMBLY
90/115
