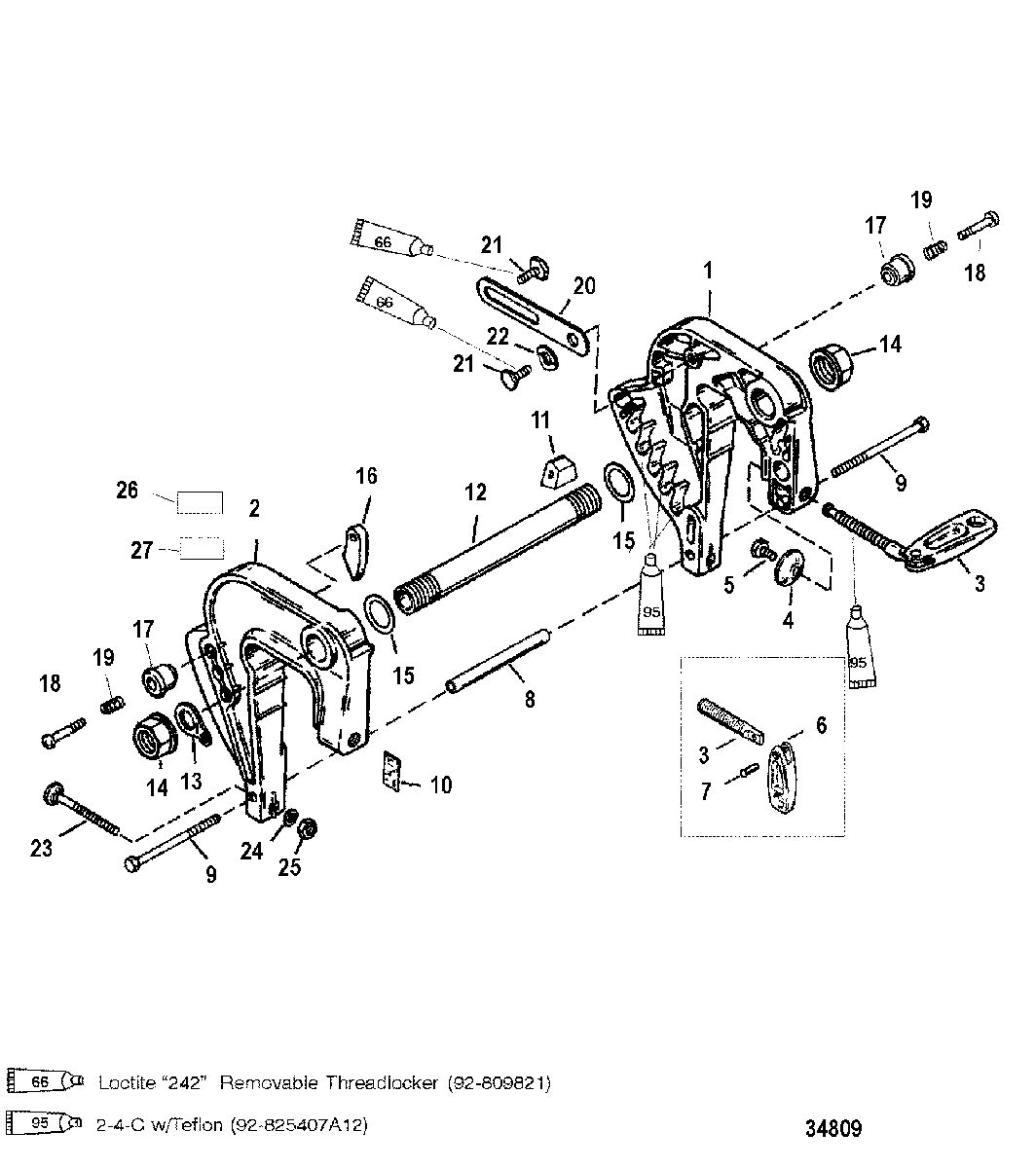

Clamp Bracket для Mariner - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
13404-8894A8 CLAMP BRACKET ASSEMBLY
PortCLAMP BRACKET ASSEMBLY
Port -
23403-8892A6 CLAMP BRACKET
StarboardCLAMP BRACKET
Starboard -
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
412-818884 WASHERWASHER
-
510-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
6NSS NOT SOLD SEPARATE, HandleNOT SOLD SEPARATE, Handle
-
7NSS NOT SOLD SEPARATE, RivetNOT SOLD SEPARATE, Rivet
-
823-8M0084719 SPACERSPACER
-
910-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1037-12869 DECAL, Tilt PositionDECAL, Tilt Position
-
11814427 SHUTTLESHUTTLE
-
1242078 TILT TUBETILT TUBE
-
1354-8M0085928 CLIPCLIP
-
1411-93164 NUT, (.875)NUT, (.875)
-
1512-71421 WASHER, NylonWASHER, Nylon
-
1642390A1 LEVER ASSEMBLY, Tilt ReturnLEVER ASSEMBLY, Tilt Return
-
17NSS NOT SOLD SEPARATE, KnobNOT SOLD SEPARATE, Knob
-
18NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
19NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
2090901 STRAP, Port SideSTRAP, Port Side
-
2110-42498 SCREW, (M6 x 1.0)SCREW, (M6 x 1.0)
-
2213-31030 WAVE WASHERWAVE WASHER
-
2310-43216 BOLT, (.250-20 x 3.50)BOLT, (.250-20 x 3.50)
-
2412-67983 WASHERWASHER
-
2511-8267118 NUT, (.250-20)NUT, (.250-20)
-
26NSS NOT SOLD SEPARATE, Decal-Tilt LockNOT SOLD SEPARATE, Decal-Tilt Lock
-
27NSS NOT SOLD SEPARATE, Decal-Tilt LimitNOT SOLD SEPARATE, Decal-Tilt Limit
