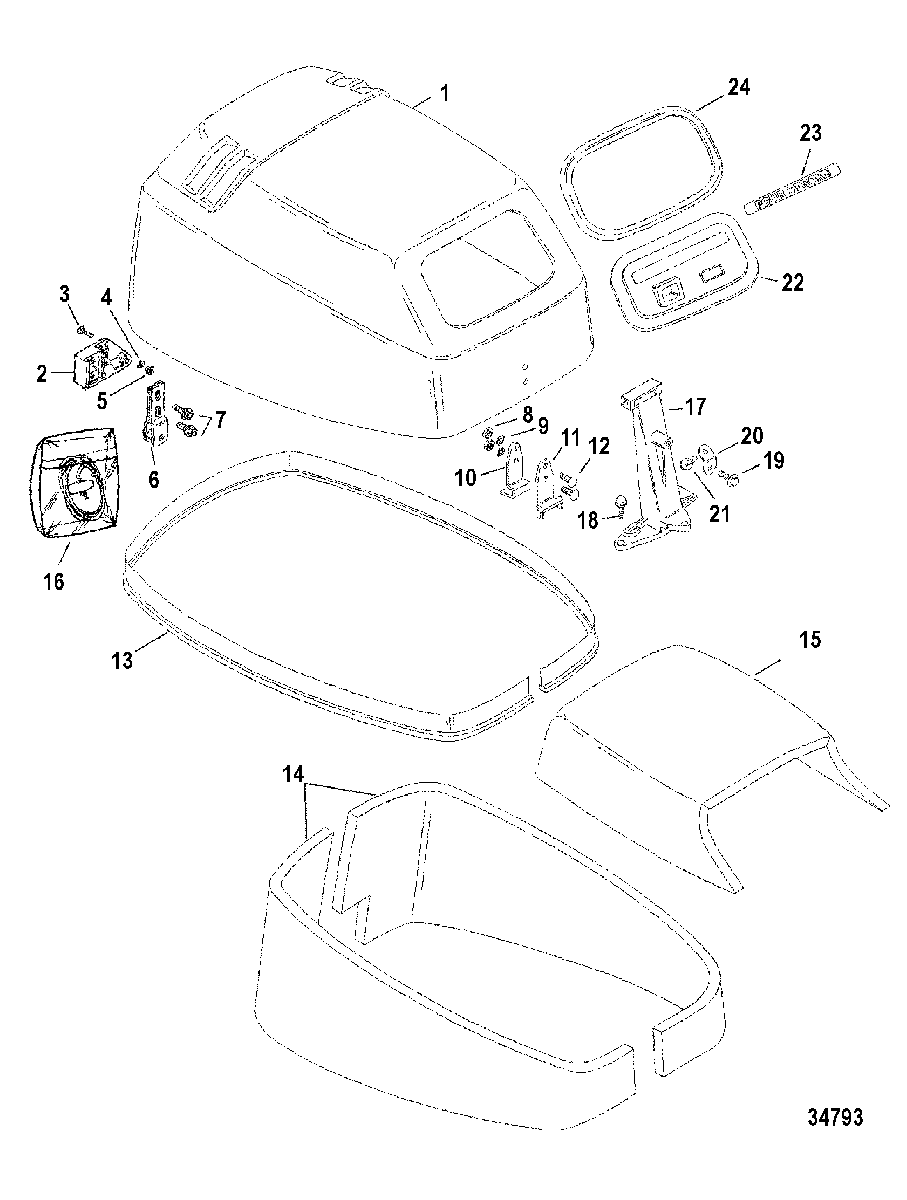

Top Cowl для Mariner - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
1114-854654T3 TOP COWL ASSEMBLY
BlackTOP COWL ASSEMBLY
Black -
1114-854654T4 TOP COWL ASSEMBLY
SilverTOP COWL ASSEMBLY
Silver -
28M0038412 BRACKET, RearBRACKET, Rear
-
310-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
413-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
511-8237515 NUT, (M4)NUT, (M4)
-
6893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
710-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
811-8237515 NUT, (M4)NUT, (M4)
-
913-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
10826649 LATCHLATCH
-
11827702T COVERCOVER
-
1210-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
138M0043391 SEAL, CowlSEAL, Cowl
-
14825567A1 SOUND BLANKET, SideSOUND BLANKET, Side
-
15NSS NOT SOLD SEPARATE, Sound Blacket-TopNOT SOLD SEPARATE, Sound Blacket-Top
-
1647341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
178258271 SUPPORTSUPPORT
-
1810-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
20827501 BRACKETBRACKET
-
2110-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
22825655A5 HANDLE RESTHANDLE REST
-
2337-8500534 DECALDECAL
-
248249952 SEALSEAL
