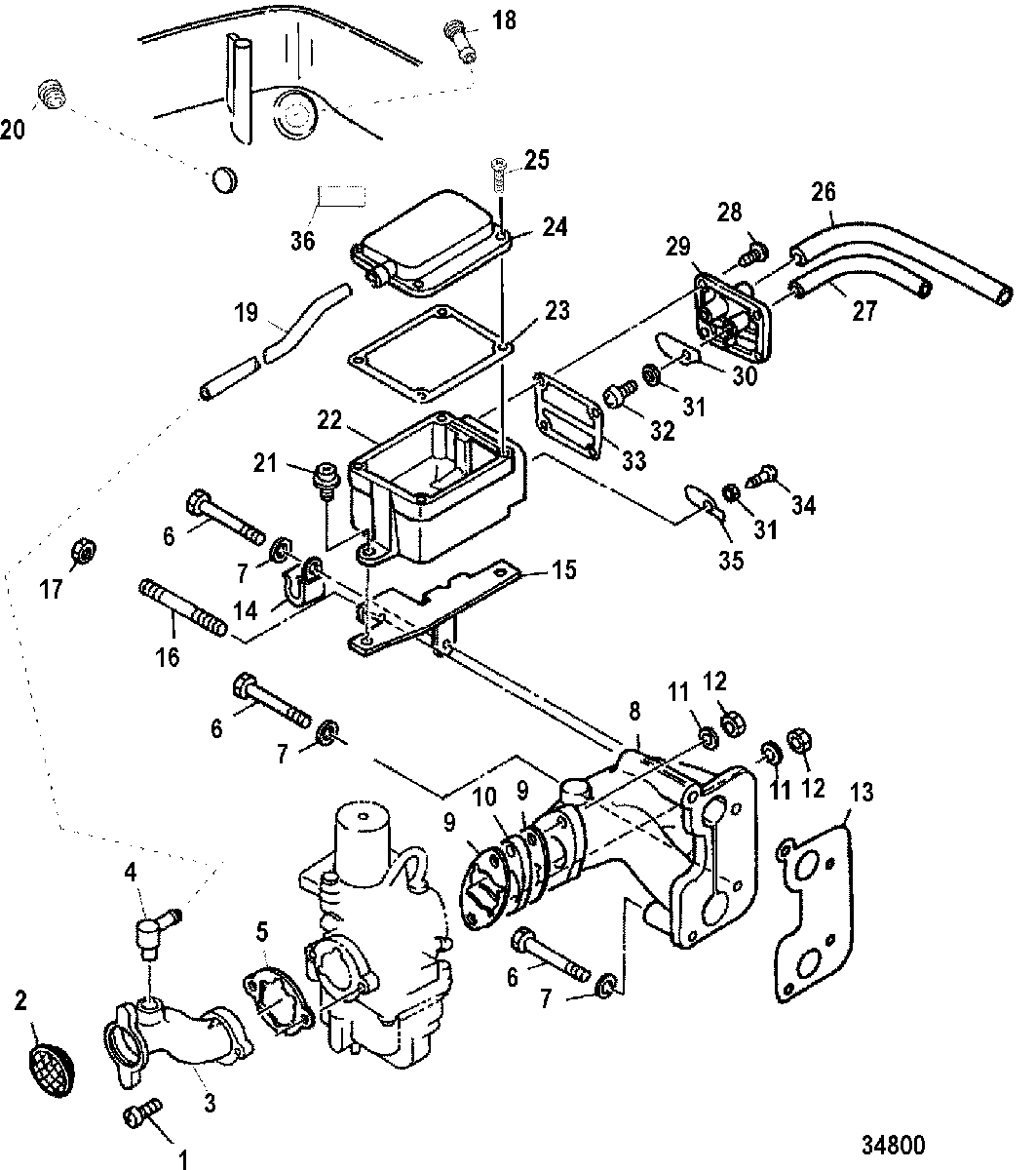

Intake для Mariner - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
110-826679 SCREWSCREW
-
2825588 LOUVERLOUVER
-
3827739 FUNNELFUNNEL
-
4825486 PIPE, BreatherPIPE, Breather
-
527-825589 GASKETGASKET
-
610-4000334 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
8825584 MANIFOLDMANIFOLD
-
927-825586 GASKET, ManifoldGASKET, Manifold
-
1027-825587 GASKET, ManifoldGASKET, Manifold
-
1112-82214M WASHERWASHER
-
1211-82390M NUT, (M6)NUT, (M6)
-
1327-825585 GASKET, ManifoldGASKET, Manifold
-
1454-28700 CLAMPCLAMP
-
15825600 HOLDER, GuideHOLDER, Guide
-
1616-827317 STUDSTUD
-
1711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1822-813613 FITTINGFITTING
-
19827734 PIPE, BreatherPIPE, Breather
-
2019-824473 PLUGPLUG
-
2110-825511 SCREWSCREW
-
22825590 SEPARATOR, OilSEPARATOR, Oil
-
2327-825592 GASKET, Oil Seal HousingGASKET, Oil Seal Housing
-
24825591 SEPARATOR, OilSEPARATOR, Oil
-
2510-84272M SCREWSCREW
-
2632-825598 HOSEHOSE
-
2732-825632 HOSEHOSE
-
2810-84272M SCREWSCREW
-
29825593 BREATHERBREATHER
-
30825594 BREATHERBREATHER
-
3112-82847M WASHERWASHER
-
3210-825515 SCREWSCREW
-
3327-825596 GASKET, BreatherGASKET, Breather
-
3410-84272M SCREWSCREW
-
35825595 BREATHERBREATHER
-
3637-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
-27-825847A95 GASKET SETGASKET SET
