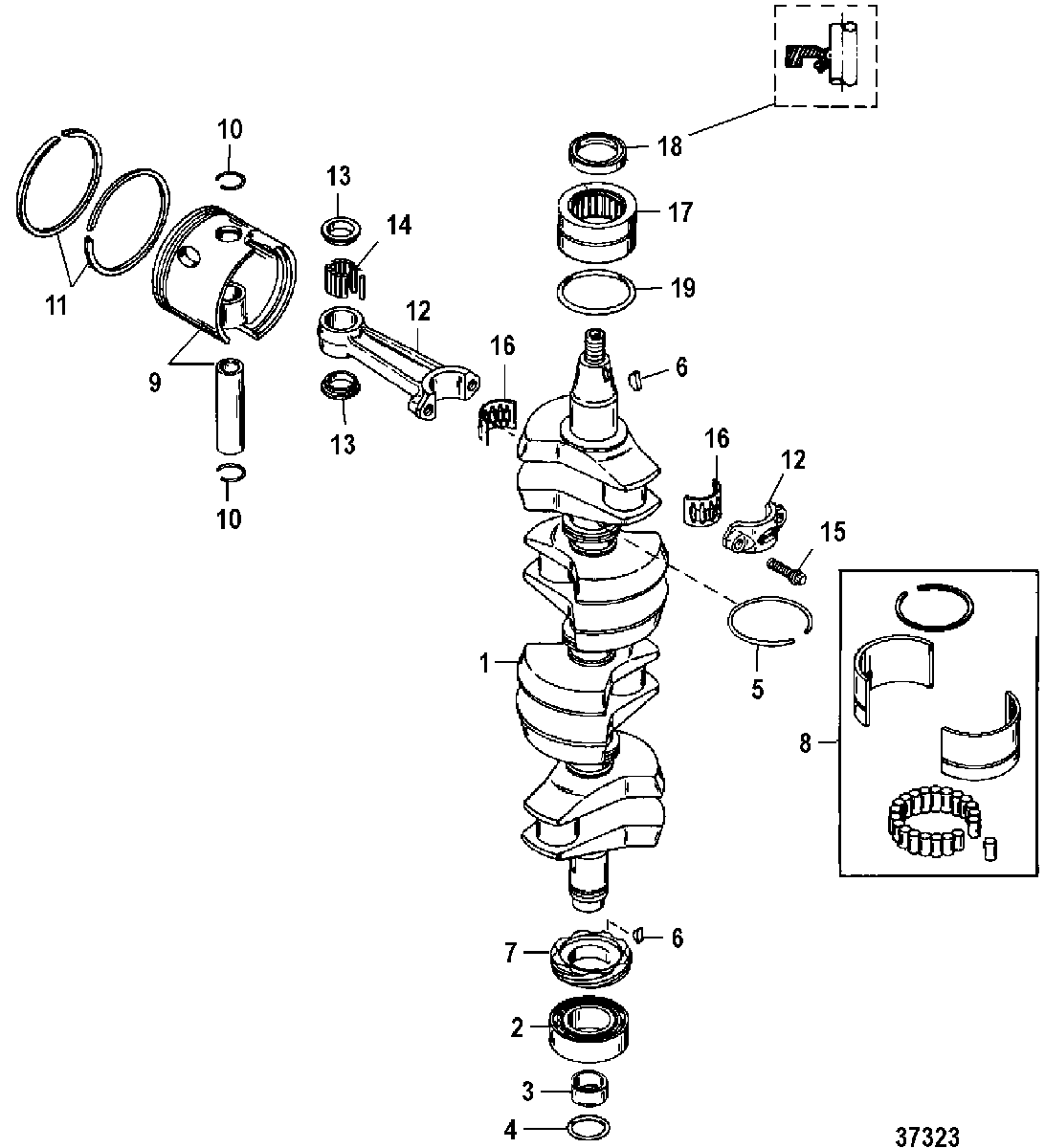

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - 80 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
1473-9193T5 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-43011T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
3786611 WEAR SLEEVEWEAR SLEEVE
-
425-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
539-818412A4 RING ASSEMBLYRING ASSEMBLY
-
628-91800 KEY, WoodruffKEY, Woodruff
-
743-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
842943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
92704-826191T4 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
92704-821896A3 PISTON ASSEMBLY
(.015 O.S.)PISTON ASSEMBLY
(.015 O.S.) -
92704-821896A4 PISTON ASSEMBLY
(.030 O.S.)PISTON ASSEMBLY
(.030 O.S.) -
1053-857196 RING, LockRING, Lock
-
1139-822321A12 RING KIT, Piston - StandardRING KIT, Piston - Standard
-
1139-822321A1 RING KIT, Piston - .015 OversizeRING KIT, Piston - .015 Oversize
-
1139-822321A2 RING SET, Piston
(.030 O.S.)RING SET, Piston
(.030 O.S.) -
12646-818846T6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1312-8M0012298 WASHERWASHER
-
1429-818391001 BEARING, NeedleBEARING, Needle
-
1510-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1631-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
1731-43013T3 BEARING ASSEMBLY, Roller (UPPER)BEARING ASSEMBLY, Roller (UPPER)
-
1826-43993 SEAL, OilSEAL, Oil
-
1925-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
