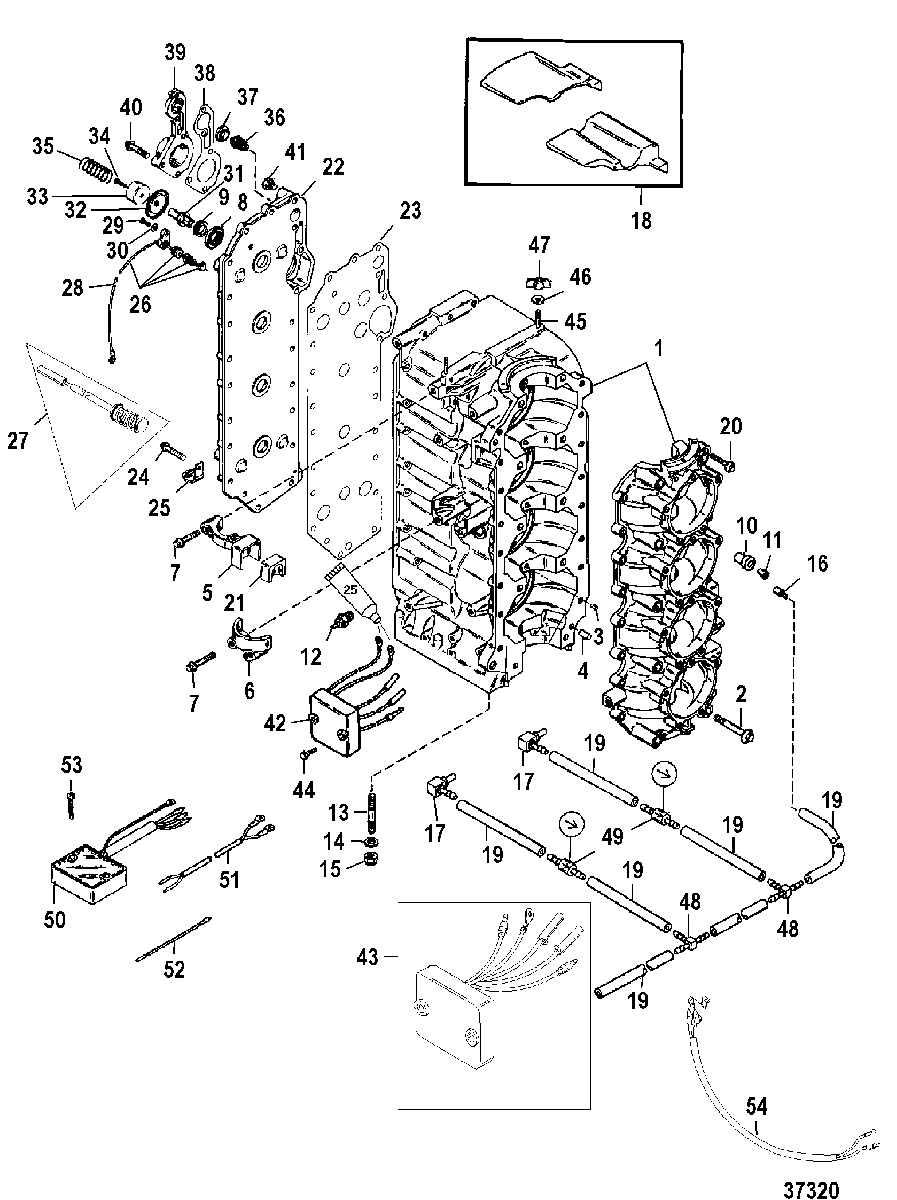

CYLINDER BLOCK AND CRANKCASE для Mariner - 80 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
1877-9191T24 CYLINDER BLOCKCYLINDER BLOCK
-
210-4009680 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
317-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
5428842 COVER (TOP)COVER (TOP)
-
676867 COVER (BOTTOM)COVER (BOTTOM)
-
710-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
865848 CARRIERCARRIER
-
925-64872 GROMMETGROMMET
-
10813801A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1121-42657A3 CHECK VALVECHECK VALVE
-
1221-891664 CHECK VALVECHECK VALVE
-
1316-821676A1 STUD (M10)STUD (M10)
-
1412-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
1511-40140 NUT, (M10)NUT, (M10)
-
1621-426233 CHECK VALVE (PRESS-IN)CHECK VALVE (PRESS-IN)
-
1722-15133 FITTING
SN# USA-0G301750/BEL-9885504 & BelowFITTING
SN# USA-0G301750/BEL-9885504 & Below -
18824703A1 PLUG KITPLUG KIT
-
1932-892024122 TUBING, (20.00 Feet Bulk)
SN# USA-0G301750/BEL-9885504 & BelowTUBING, (20.00 Feet Bulk)
SN# USA-0G301750/BEL-9885504 & Below -
2010-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2199162001 BOOTBOOT
-
221035-9196A2 COVERCOVER
-
2327-443284 GASKETGASKET
-
2410-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2554-814634 CLAMPCLAMP
-
26787991 SENDER, Temperature (37.50 Inch)
(RING TERMINAL)SENDER, Temperature (37.50 Inch)
(RING TERMINAL) -
27787992 SENDER, Temperature
(22-1/2 IN.)(FEMALE TERMINAL)SENDER, Temperature
(22-1/2 IN.)(FEMALE TERMINAL) -
28889733 RETAINERRETAINER
-
2910-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
3012-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
3186596T POPPET VALVEPOPPET VALVE
-
32648771 DIAPHRAGMDIAPHRAGM
-
3312-94182 WASHERWASHER
-
3410-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
3524-42996 SPRINGSPRING
-
3614586 THERMOSTATTHERMOSTAT
-
3727-62386001 GASKETGASKET
-
3827-430068 GASKETGASKET
-
398M0047619 COVERCOVER
-
4010-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
4010-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
4122-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
4214857A16 MODULE ASSEMBLY, Oil Warning
SN# USA-0G437999/BEL-9926999 & BelowMODULE ASSEMBLY, Oil Warning
SN# USA-0G437999/BEL-9926999 & Below -
4314857A16 MODULE ASSEMBLY, Oil Warning
SN# USA-0G438000/BEL-9927000 THRU USA-0G589999/BEL-9973099MODULE ASSEMBLY, Oil Warning
SN# USA-0G438000/BEL-9927000 THRU USA-0G589999/BEL-9973099 -
4410-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
4516-8161949 STUDSTUD
-
4612-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
4711-816872 WING NUTWING NUT
-
4822-59169003 FITTING (TEE)
SN# USA-0G301750/BEL-9885504 & BelowFITTING (TEE)
SN# USA-0G301750/BEL-9885504 & Below -
4921-149125 CHECK VALVE
SN# USA-0G301750/BEL-9885504 & BelowCHECK VALVE
SN# USA-0G301750/BEL-9885504 & Below -
50821889A51 REV LIMITERREV LIMITER
-
5184-823147A7 HARNESS ASSEMBLY, Rev Limiter (USE WHERE APPLICABLE)HARNESS ASSEMBLY, Rev Limiter (USE WHERE APPLICABLE)
-
5284-11149A8 HARNESS ASSEMBLY, Adapter (USE WHERE APPLICABLE)HARNESS ASSEMBLY, Adapter (USE WHERE APPLICABLE)
-
5310-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
5310-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
5484-855212A1 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
-
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
