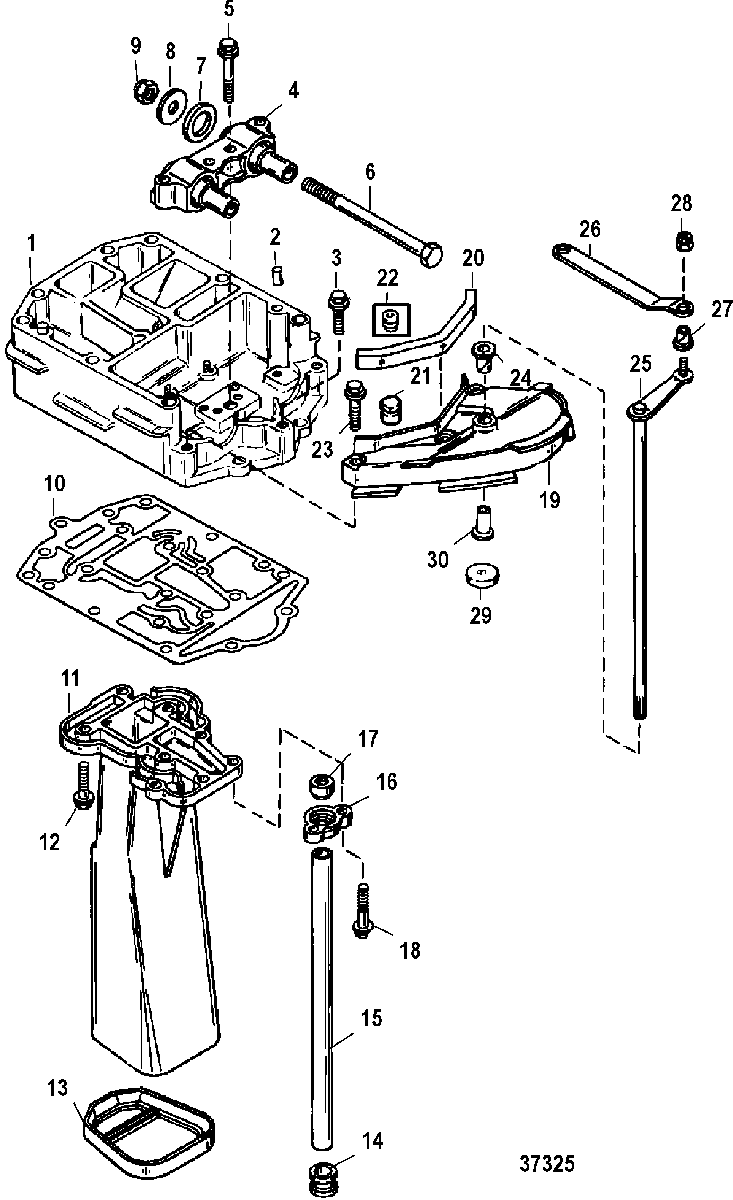

EXHAUST PLATE для Mariner - 80 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
142954A5 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
310-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
310-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
4881900T03 MOUNT, (2.375 Inch)MOUNT, (2.375 Inch)
-
510-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
712-32834 WASHER, NeopreneWASHER, Neoprene
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
911-896963 NUT, (M12)NUT, (M12)
-
1027-430086 GASKETGASKET
-
1187917216T TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water
(LONG)TUBE, Water
(LONG) -
1532-8M0042792 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
16824661 CLAMPCLAMP
-
17814080001 SEAL (UPPER)SEAL (UPPER)
-
1810-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1942953A5 BRACKET ASSEMBLY (LOWER)
(BLACK)BRACKET ASSEMBLY (LOWER)
(BLACK) -
1942953A6 BRACKET ASSEMBLY (LOWER)
(GRAY)BRACKET ASSEMBLY (LOWER)
(GRAY) -
1942953A7 BRACKET ASSEMBLY (LOWER)
(TRACKER-GRAPHITE GRAY)BRACKET ASSEMBLY (LOWER)
(TRACKER-GRAPHITE GRAY) -
2043405 SEALSEAL
-
2125-12602002 GROMMET
SN# 0G359967 & BelowGROMMET
SN# 0G359967 & Below -
2225-19565002 GROMMET
SN# 0G359968 & UpGROMMET
SN# 0G359968 & Up -
2310-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2423-48237 BUSHINGBUSHING
-
2579932A20 SHIFT SHAFT (UPPER)
SN# USA-0G590000/BEL-9973100 & UpSHIFT SHAFT (UPPER)
SN# USA-0G590000/BEL-9973100 & Up -
2642912A3 SHIFT LINKSHIFT LINK
-
2579932A9 SHIFT SHAFT ASSEMBLY (UPPER)
SN# USA-0G589999/BEL-9973099 & BelowSHIFT SHAFT ASSEMBLY (UPPER)
SN# USA-0G589999/BEL-9973099 & Below -
2642912A1 SHIFT LINKSHIFT LINK
-
2723-48475 BUSHINGBUSHING
-
2811-401386 NUT, (M6)NUT, (M6)
-
2923-813745 SPACER
(LONG)SPACER
(LONG) -
2923-11289 SPACER
(X-LONG)SPACER
(X-LONG) -
3043585 COUPLINGCOUPLING
-
-27-13461A99 GASKET SETGASKET SET
