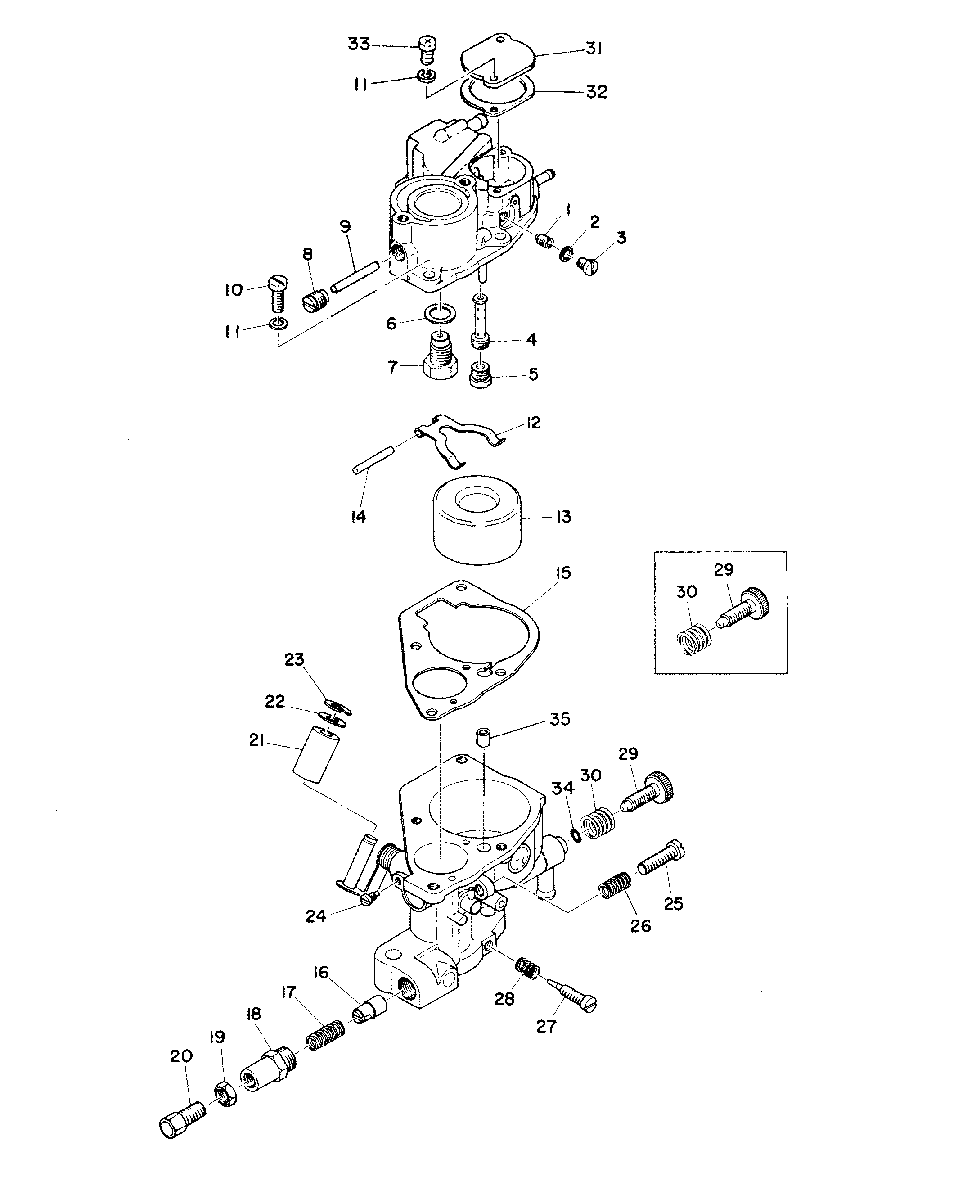

CARBURETOR для Mariner - 8A 655-300100 AND BELOW
-
№АртикулНазвание
-
0-11383-6913M CARBURETOR ASS'Y... .
SERIAL 00000000-00021180CARBURETOR ASS'Y... .
SERIAL 00000000-00021180 -
0-11383-6945M CARBURETOR ASS'Y...
SERIAL 71-65415-09999999CARBURETOR ASS'Y...
SERIAL 71-65415-09999999 -
0-11383-6946M CARBURETOR ASS'Y... .
SERIAL 00028101-09999999CARBURETOR ASS'Y... .
SERIAL 00028101-09999999 -
180440M JET, LOW SPEED (#50)...JET, LOW SPEED (#50)...
-
227-13999M GASKET, JET...GASKET, JET...
-
310-80435M SCREW, JET STOP...SCREW, JET STOP...
-
480445M NOZZLE, MAIN...NOZZLE, MAIN...
-
591741M JET, MAIN (#86)...JET, MAIN (#86)...
-
627-80205M GASKET, VALVE SEAT...GASKET, VALVE SEAT...
-
780453M INLET VALVE SEAT...INLET VALVE SEAT...
-
822-80442M PLUG, MAIN NOZZLE...PLUG, MAIN NOZZLE...
-
980439M NOZZLE, MAIN...NOZZLE, MAIN...
-
1010-82515M SCREW...SCREW...
-
1113-82206M LOCKWASHER...LOCKWASHER...
-
1280452M ARM, FLOAT...ARM, FLOAT...
-
1380450M FLOAT...FLOAT...
-
1417-80451M PIN, FLOAT...PIN, FLOAT...
-
1527-80449M GASKET, FLOAT BOWL...GASKET, FLOAT BOWL...
-
1680446M PLUNGER, CHOKE...PLUNGER, CHOKE...
-
1724-80438M SPRING, PLUNGER...SPRING, PLUNGER...
-
1822-80448M CAP, PLUNGER...CAP, PLUNGER...
-
1911-80431M NUT, PLUNGER...NUT, PLUNGER...
-
2010-80429M BOLT, CHOKE CABLE...BOLT, CHOKE CABLE...
-
2123-80220M BUSHING, THROTTLE SHAFT...BUSHING, THROTTLE SHAFT...
-
2212-82209M WASHER, THROTTLE SHAFT...WASHER, THROTTLE SHAFT...
-
2353-82328M SNAP RING, THROTTLE SHAFT...SNAP RING, THROTTLE SHAFT...
-
2410-80434M SCREW, GUIDE-THROTTLE LEVER...SCREW, GUIDE-THROTTLE LEVER...
-
2510-80433M SET SCREW, THROTTLE LEVER...SET SCREW, THROTTLE LEVER...
-
2624-80436M SPRING, THROTTLE LEVER SET SCREW...SPRING, THROTTLE LEVER SET SCREW...
-
2710-80573M SCREW, AIR ADJUSTING...SCREW, AIR ADJUSTING...
-
2824-80437M SPRING, AIR ADJUSTING SCREW...SPRING, AIR ADJUSTING SCREW...
-
2922-82643M VALVE, DRAIN... .
SERIAL 00000000-00020160VALVE, DRAIN... .
SERIAL 00000000-00020160 -
2910-80349M VALVE, DRAIN... .
SERIAL 16-65415-09999999VALVE, DRAIN... .
SERIAL 16-65415-09999999 -
3024-82641M SPRING, DRAIN VALVE... .
SERIAL 00000000-00020160SPRING, DRAIN VALVE... .
SERIAL 00000000-00020160 -
3024-80331M SPRING, DRAIN VALVE...
SERIAL 16-65415-09999999SPRING, DRAIN VALVE...
SERIAL 16-65415-09999999 -
3180430M COVER...COVER...
-
3227-80432M GASKET...GASKET...
-
3310-82500M SCREW...SCREW...
-
3425-80350M O-RING...
SERIAL 16-65415-09999999O-RING...
SERIAL 16-65415-09999999 -
3583089M JET, STARTER (#70)... .
SERIAL 00000000-00021180JET, STARTER (#70)... .
SERIAL 00000000-00021180 -
3583090M JET, STARTER (#100)...
SERIAL 00021181-09999999JET, STARTER (#100)...
SERIAL 00021181-09999999
