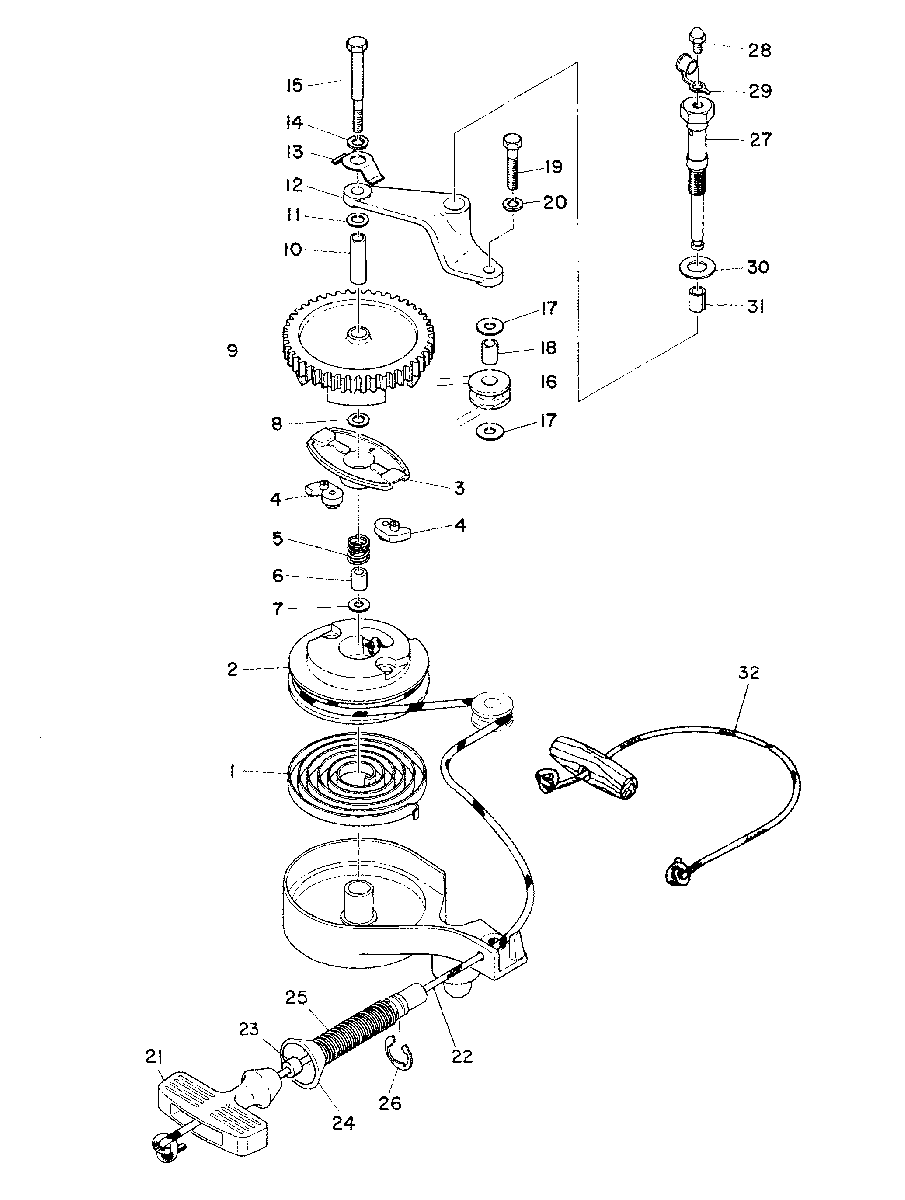

RECOIL STARTER для Mariner - 8A 655-300100 AND BELOW
-
№АртикулНазвание
-
0-180455M STARTER ASS"Y...STARTER ASS"Y...
-
124-80457M SPRING, STARTER...SPRING, STARTER...
-
250-80458M STARTER, SHEAVE...STARTER, SHEAVE...
-
380460M DRIVE, PLATE...DRIVE, PLATE...
-
480469M PAWL, STARTER...PAWL, STARTER...
-
524-80459M SPRING, DRIVE PLATE...SPRING, DRIVE PLATE...
-
623-80473M COLLAR, STARTER ASS'Y BOLT...COLLAR, STARTER ASS'Y BOLT...
-
712-82209M WASHER, STARTER ASS'Y BOLT...WASHER, STARTER ASS'Y BOLT...
-
812-80466M WASHER, THRUST-DRIVE PLATE...WASHER, THRUST-DRIVE PLATE...
-
943-80465M GEAR, STARTER PINION...GEAR, STARTER PINION...
-
1023-80462M SPACER, STARTER BOLT...SPACER, STARTER BOLT...
-
1112-80468M WASHER, THRUST-STARTER BOLT...WASHER, THRUST-STARTER BOLT...
-
1280456M BRACKET, STARTER PULLEY...BRACKET, STARTER PULLEY...
-
1313-80467M WASHER, TENSION-STARTER ASS'Y...WASHER, TENSION-STARTER ASS'Y...
-
1413-82215M LOCKWASHER, STARTER ASS'Y BOLT...LOCKWASHER, STARTER ASS'Y BOLT...
-
1510-80461M BOLT, STARTER ASS'Y ATTACHING...BOLT, STARTER ASS'Y ATTACHING...
-
1680470M PULLEY, ROPE STARTER...PULLEY, ROPE STARTER...
-
1712-82189M WASHER, PULLEY BOLT...WASHER, PULLEY BOLT...
-
1823-80472M COLLAR, PULLEY BOLT...COLLAR, PULLEY BOLT...
-
1910-83285M BOLT, BRACKET ATTACHING...BOLT, BRACKET ATTACHING...
-
2013-82212M LOCKWASHER, PULLEY BOLT...LOCKWASHER, PULLEY BOLT...
-
21814491A1 HANDLE, STARTER ROPE...HANDLE, STARTER ROPE...
-
2250-12066Q10 STARTER ROPE...STARTER ROPE...
-
2383104M SEAL RUBBER...SEAL RUBBER...
-
2480471M GUIDE, STARTER ROPE...GUIDE, STARTER ROPE...
-
2524-82072M SPRING, STARTER GUIDE...SPRING, STARTER GUIDE...
-
2653-82337M SNAP RING, STARTER GUIDE...SNAP RING, STARTER GUIDE...
-
2710-80474M BOLT, GEAR DISTRIBUTION...BOLT, GEAR DISTRIBUTION...
-
2822-82369M FITTING, GREASE...FITTING, GREASE...
-
2981439M CAP, GREASE FITTING...CAP, GREASE FITTING...
-
3012-80463M WASHER, GREASE BOLT THRUST (1.0 MM)...WASHER, GREASE BOLT THRUST (1.0 MM)...
-
3012-80464M WASHER, GREASE BOLT THRUST (2.0 MM)...WASHER, GREASE BOLT THRUST (2.0 MM)...
-
3123-81944M BUSHING, GREASE BOLT...BUSHING, GREASE BOLT...
-
3247341A11 EMERGENCY STARTER ROPE...EMERGENCY STARTER ROPE...
