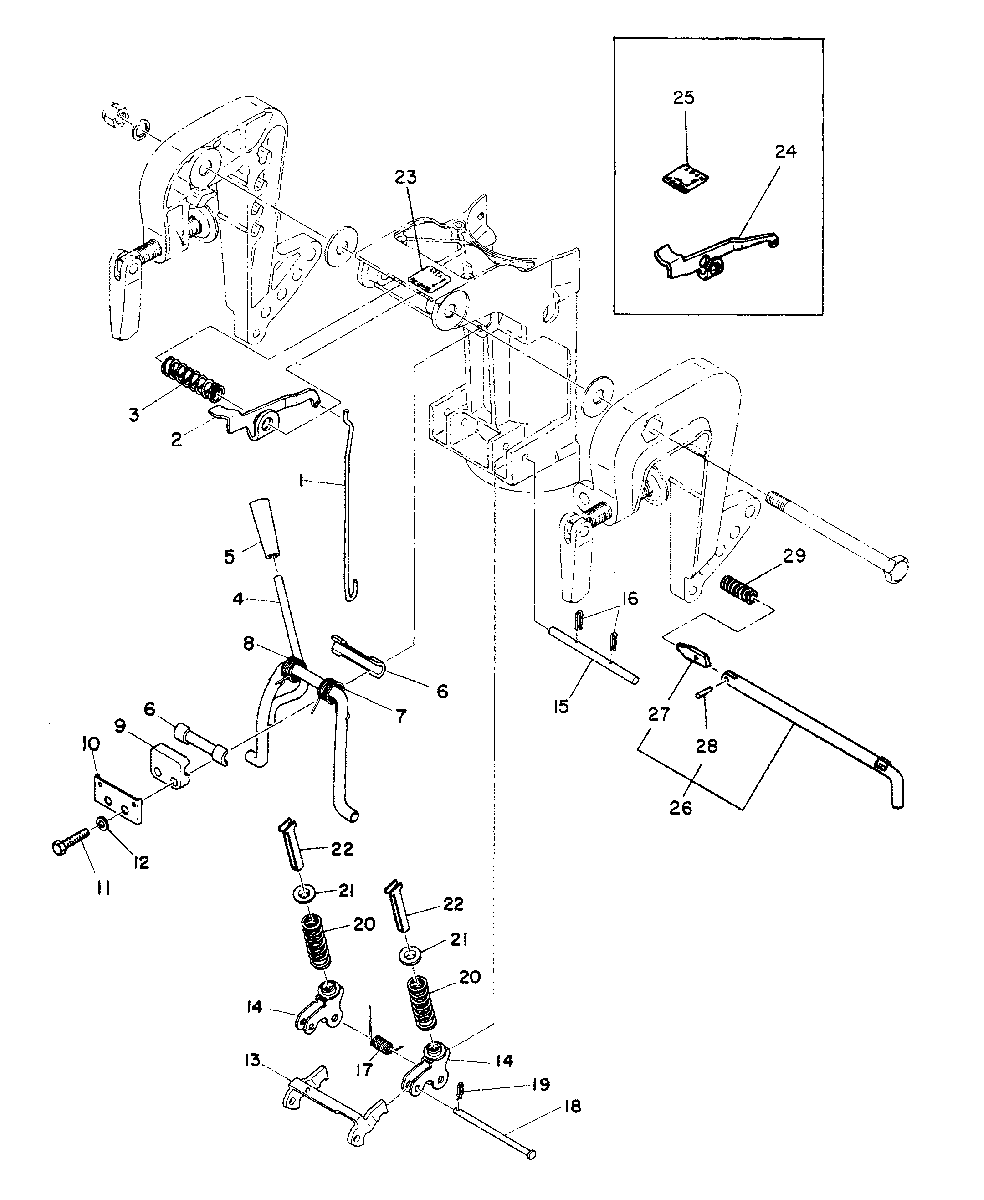

REVERSE LOCK для Mariner - 8A 655-300100 AND BELOW
-
№АртикулНазвание
-
180524M ROD, REVERSE LOCK LEVER...ROD, REVERSE LOCK LEVER...
-
280526M LEVER, LOCK/RELEASE...
SERIAL 00000000-00027075LEVER, LOCK/RELEASE...
SERIAL 00000000-00027075 -
324-82090M SPRING, LEVER RETURN... .
SERIAL 00027075-09999999SPRING, LEVER RETURN... .
SERIAL 00027075-09999999 -
480519M TILT STOP LEVER ASS'Y...TILT STOP LEVER ASS'Y...
-
580100M KNOB, TILT STOP LEVER...KNOB, TILT STOP LEVER...
-
623-80097M BUSHING, TILT STOP LEVER...BUSHING, TILT STOP LEVER...
-
724-82111M SPRING, TILT STOP LEVER-PORT...SPRING, TILT STOP LEVER-PORT...
-
824-82110M SPRING, TILT STOP LEVER-STARBOARD...SPRING, TILT STOP LEVER-STARBOARD...
-
982598M BRACKET, BUSHING...
SERIAL 00000000-00020160BRACKET, BUSHING...
SERIAL 00000000-00020160 -
980976M BRACKET, BUSHING...
SERIAL 00020161-09999999BRACKET, BUSHING...
SERIAL 00020161-09999999 -
1082580M PLATE, BUSHING BRACKET...
SERIAL 00000000-00020160PLATE, BUSHING BRACKET...
SERIAL 00000000-00020160 -
1110-82405M BOLT, TILT STOP LEVER ATTACHING...BOLT, TILT STOP LEVER ATTACHING...
-
1212-82214M WASHER, TILT STOP LEVER BOLT...WASHER, TILT STOP LEVER BOLT...
-
1380522M HOOK, REVERSE LOCK...HOOK, REVERSE LOCK...
-
1480523M HOOK, REVERSE LOCK...HOOK, REVERSE LOCK...
-
1580527M SHAFT, HOOK LEVER...SHAFT, HOOK LEVER...
-
1618-82049M PIN, HOOK LEVER SHAFT...PIN, HOOK LEVER SHAFT...
-
1724-82112M SPRING, REVERSE LOCK RETURN...SPRING, REVERSE LOCK RETURN...
-
1817-81883M SHAFT...SHAFT...
-
1918-82051M PIN, HOOK SHAFT...PIN, HOOK SHAFT...
-
2024-82097M SPRING, REVERSE LOCK...SPRING, REVERSE LOCK...
-
2180525M STOP, REVERSE LOCK SPRING...STOP, REVERSE LOCK SPRING...
-
2280521M ARM, REVERSE LOCK SPRING...ARM, REVERSE LOCK SPRING...
-
2380891M INDICATOR, TILT... .
SERIAL 00000000-00027075INDICATOR, TILT... .
SERIAL 00000000-00027075 -
2483049M LEVER, TILT...
SERIAL 00027075-09999999LEVER, TILT...
SERIAL 00027075-09999999 -
2537-83059M DECAL, TILT INDICATOR...
SERIAL 00027076-09999999DECAL, TILT INDICATOR...
SERIAL 00027076-09999999 -
2617-80266M TILT ROD ASS'Y...TILT ROD ASS'Y...
-
2780640M STOPPER PLATE... .
SERIAL 00026575-09999999STOPPER PLATE... .
SERIAL 00026575-09999999 -
2782857M STOPPER PLATE... .
SERIAL 00026576-09999999STOPPER PLATE... .
SERIAL 00026576-09999999 -
2817-82141M PIN, SPRING...
SERIAL 00000000-00026575PIN, SPRING...
SERIAL 00000000-00026575 -
2817-82144M PIN, SPRING... .
SERIAL 00026576-09999999PIN, SPRING... .
SERIAL 00026576-09999999 -
2924-82099M SPRING...SPRING...
