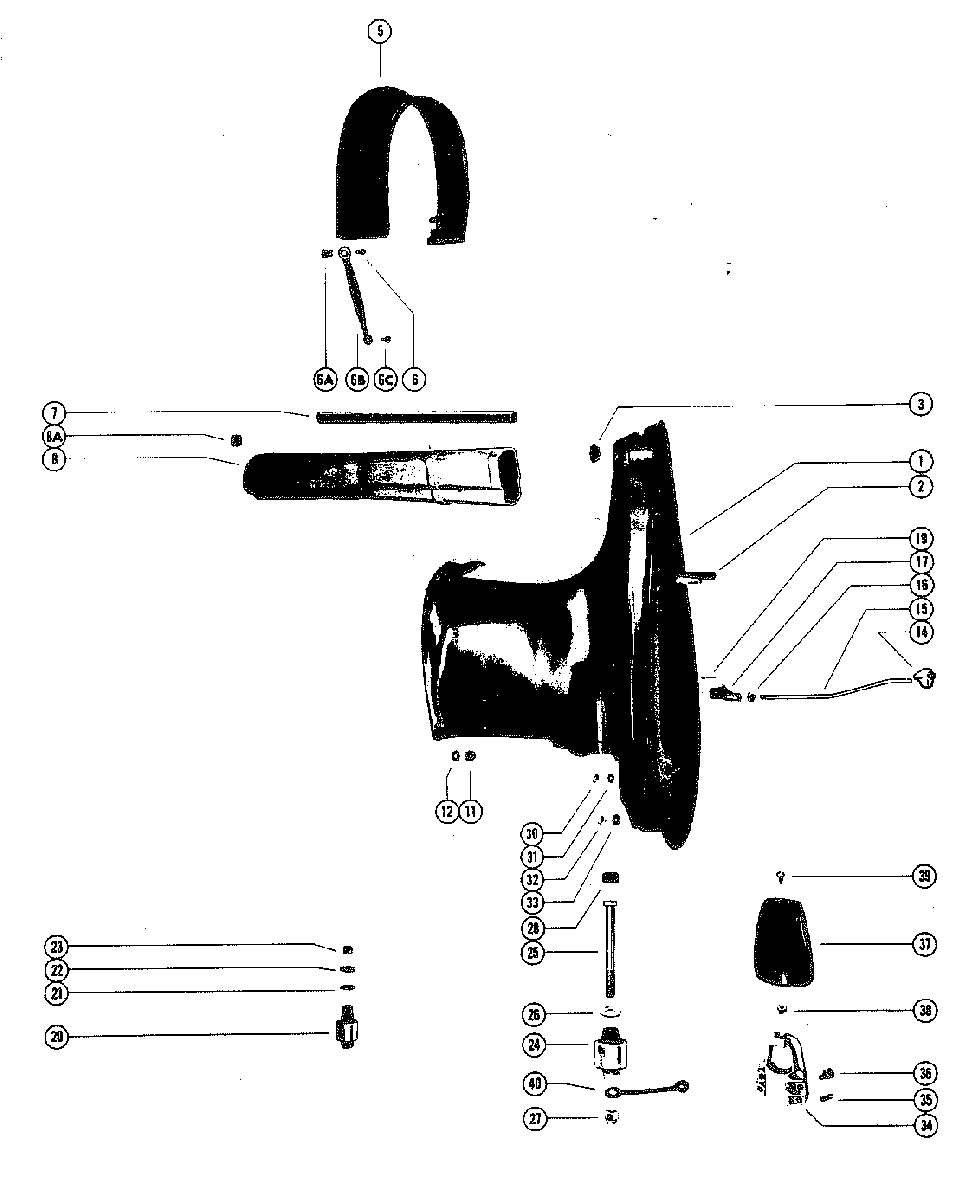

DRIVE SHAFT HOUSING ASSEMBLY для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
11573-5239A51 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD, DRIVE SHAFT HOUSINGSTUD, DRIVE SHAFT HOUSING
-
319-64649 PLUG, PLASTIC-TRIM TAB SCREW HOLEPLUG, PLASTIC-TRIM TAB SCREW HOLE
-
537417F2 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
610-57807 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
6A25-8M0079730 GROMMET, PLASTIC-TRIM COVER SCREWGROMMET, PLASTIC-TRIM COVER SCREW
-
6B84-88238T01 GROUND STRAP ASSEMBLY, TRIM COVER SCREWGROUND STRAP ASSEMBLY, TRIM COVER SCREW
-
6C10-62568 SCREW, GROUND STRAP ATTACHINGSCREW, GROUND STRAP ATTACHING
-
732-60897 TUBE, WATER INLETTUBE, WATER INLET
-
878184T EXHAUST TUBEEXHAUST TUBE
-
8A65638 BOOT, EXHAUST TUBEBOOT, EXHAUST TUBE
-
1111-69254 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1212-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1452887 GUIDE, PUSH ROD--NOT USED WITH FULL POWER TRI
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOWGUIDE, PUSH ROD--NOT USED WITH FULL POWER TRI
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOW -
1547558 ROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOWROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOW -
1611-69254 NUT, JAM-PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOWNUT, JAM-PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOW -
1747559 YOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOWYOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855841 AND BELOW -
1492704 GUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UPGUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UP -
1543417A2 ROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UPROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UP -
1611-28770 NUT, JAM-PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UPNUT, JAM-PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UP -
1789813 YOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UPYOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5855842 AND UP -
1918-25191 COTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIMCOTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIM -
2075296 MOUNT, RUBBER-UPPERMOUNT, RUBBER-UPPER
-
2112-47840 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
2212-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2311-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2475299 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
2510-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2612-49339 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2825067 BUMPER, RUBBER-LOWER MOUNTING SCREWBUMPER, RUBBER-LOWER MOUNTING SCREW
-
3011-34933 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
3112-45176 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
3211-29489 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
3312-45176 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
3435608 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
3524-35522 SPRING, TENSION-LOWER MOUNT CLAMPSPRING, TENSION-LOWER MOUNT CLAMP
-
3610-29256 SCREW, LOWER MOUNT CLAMPSCREW, LOWER MOUNT CLAMP
-
3735474F2 COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3811-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3910-87884 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
-
4088238A10 WIRE ASSEMBLY, GROUNDWIRE ASSEMBLY, GROUND
