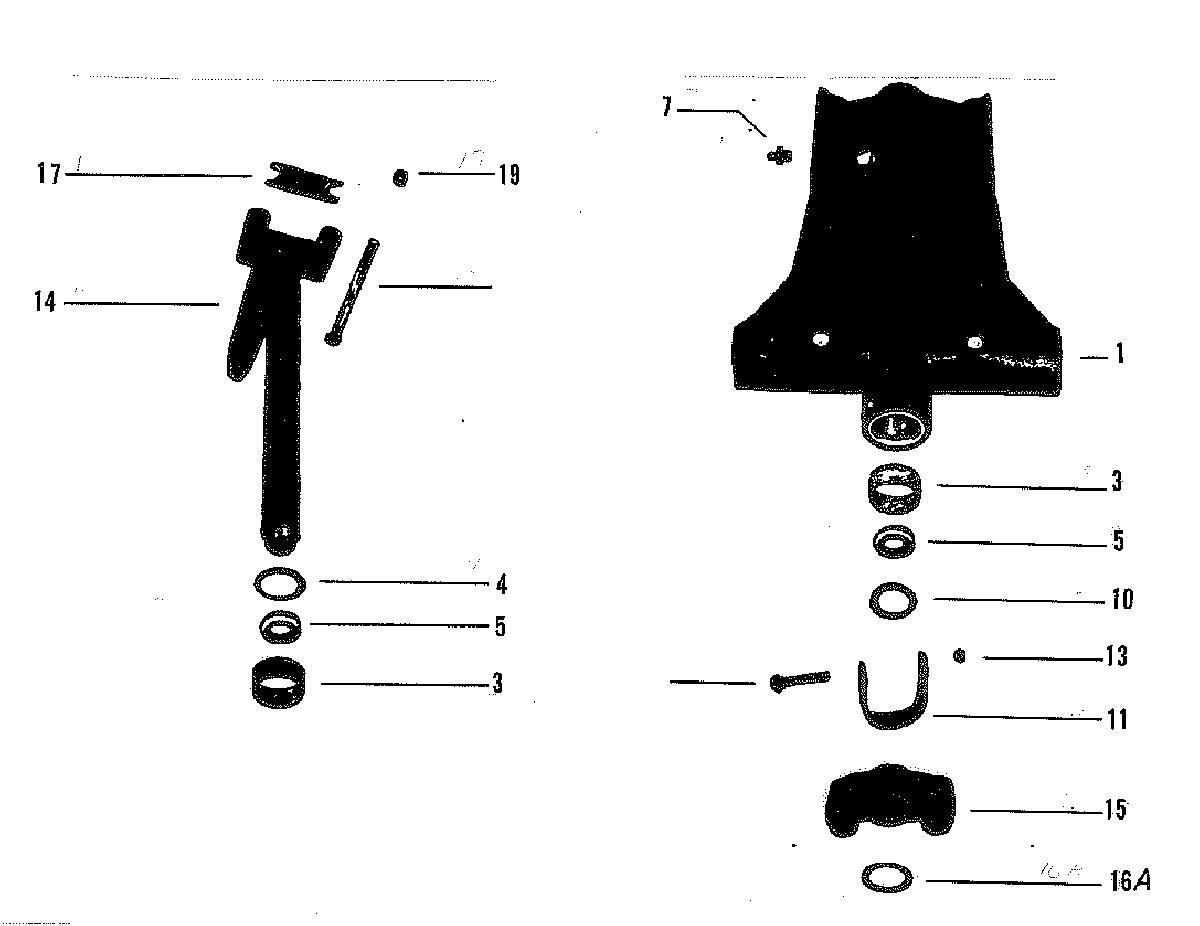

SWIVEL BRACKET ASSEMBLY для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
11482-7670A5 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
323-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
412-69342 WASHER, SWIVEL PIN - UPPERWASHER, SWIVEL PIN - UPPER
-
526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
722-74036 GREASE FITTING, SWIVEL BRACKETGREASE FITTING, SWIVEL BRACKET
-
1013-88507 WAVE WASHER, SWIVEL PIN - LOWERWAVE WASHER, SWIVEL PIN - LOWER
-
1128205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
1210-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8")SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8")
-
1311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1417-73593A2 SWIVEL PIN AND ARM ASSEMBLYSWIVEL PIN AND ARM ASSEMBLY
-
1573984T BOTTOM YOKEBOTTOM YOKE
-
16A53-73591 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")
-
1911-34933 NUT, STEERING ARM BOLTNUT, STEERING ARM BOLT
